Setting and Displaying Field Adjustable Trip
Points
Setting and
Displaying
Field Adjus-
table Trip
Points - Gene-
ral
1. Enter the setup menu for field adjustable trip points
2. Enter the access code
3. Select the desired parameter using the ‘Up’ and ‘Down’ keys
4. Press the ‘Enter’ key
The value of the selected parameter is displayed, the first digit flas-
hes.
5. Select a value for the first digit of the parameter using the ‘Up’ and
‘Down’ keys
6. Press the ‘Enter’ key
The second digit flashes.
7. Repeat steps 5. and 6. for each digit of the parameter value, untill the
whole parameter value flashes
8. Press the ‘Enter’ key
The new value of the parameter is accepted, the parameter is display-
ed.
9. Press the ‘Esc’ key to exit the setup menu for field adustable trip
points.
The inverter starts the startup phase with the grid synchronization.
Setting Ex-
ample
1. Enter the setup menu for field adjustable trip points
2. Enter the access code

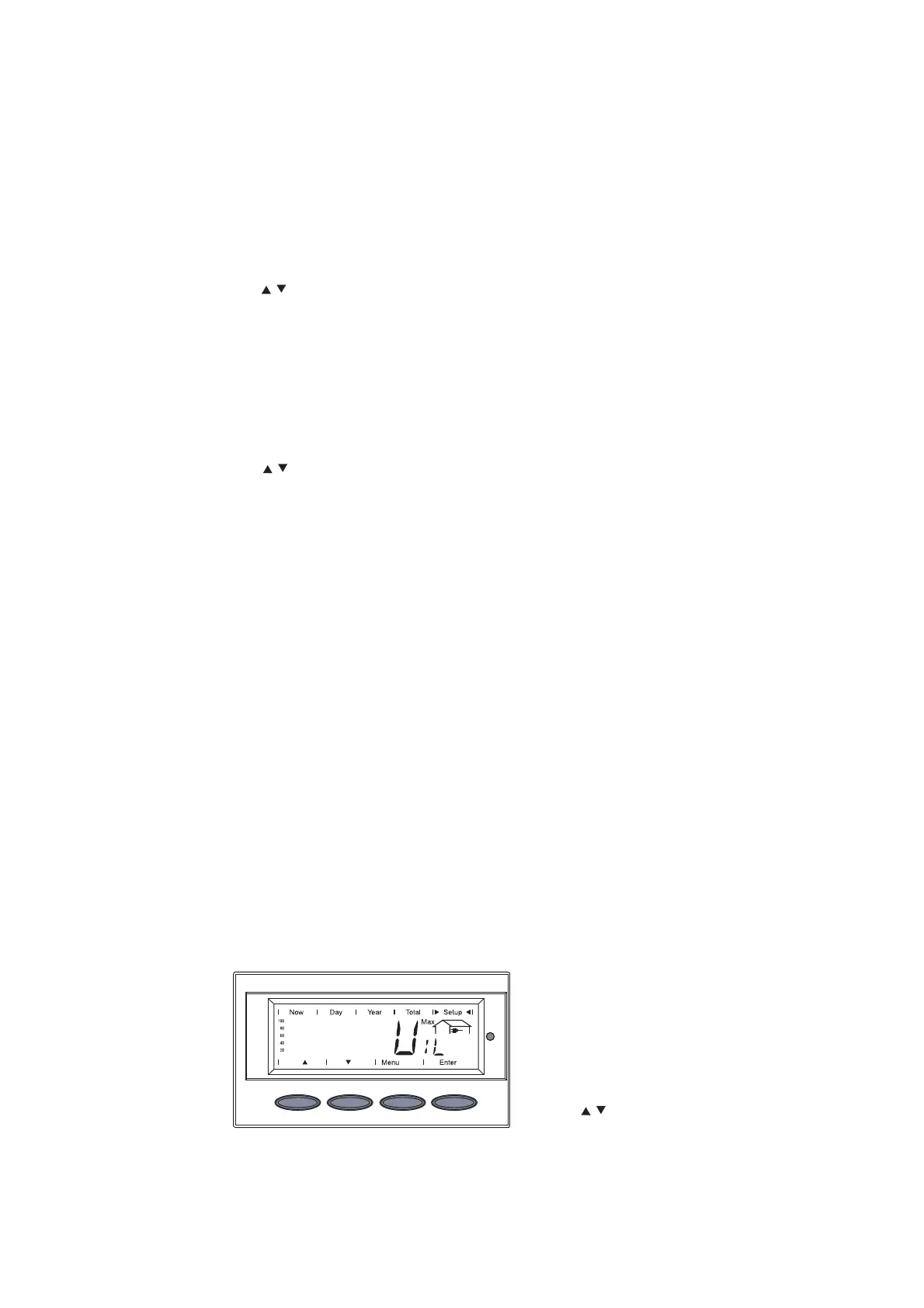

The first parameter ‘UIL
Max
’ in
the setup menu for field adjus-
table trip points is displayed.
3. Select the desired parameter
using the ‘Up’ and ‘Down’ keys
