Fronius IG-TL 3.6 - Attaching the Wall Bracket; Selecting Dowels and Screws; Screw Recommendation; Separating the Wall Bracket and Power Stage Set

28
Attaching the Wall Bracket
Selecting dowels
and screws
The head height of the screws used may be a maximum of 6 mm.
When using washers, the maximum head height of th screws is reduced by the thickness
of the washers.
Screw recom-
mendation
The manufacturer recommends using screws with a min. diameter of 6 mm for inverter in-
stallation.

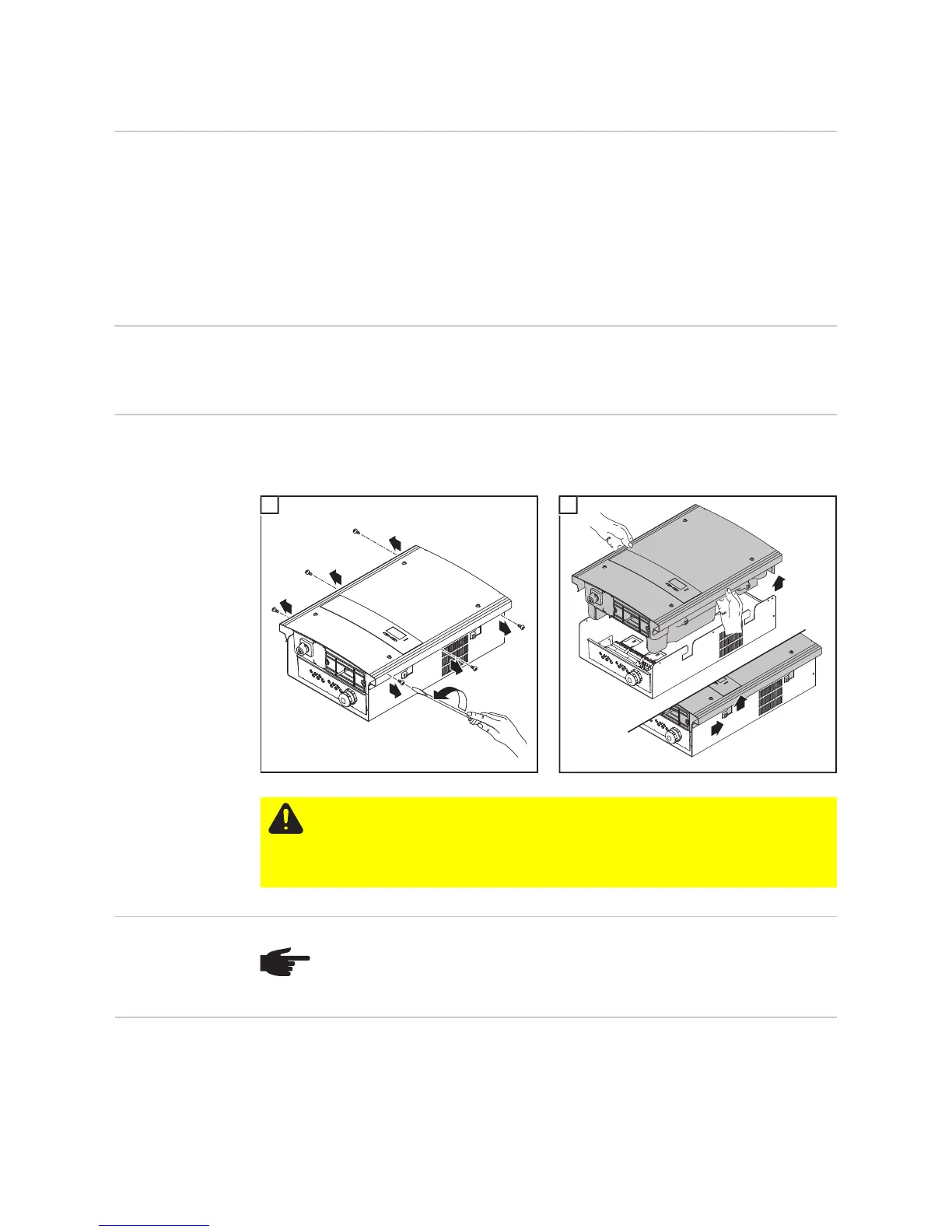

Separating the
wall bracket and
power stage set
The side areas of the housing cover are designed to function as carrying grips and/or han-
dles.
Installation posi-
tion
IMPORTANT! Depending on the surface, different dowels and screws may be required for
installing the wall bracket. Therefore, these dowels and screws are not part of the scope of
supply for the inverter. The system installer is responsible for selecting the proper dowels
and screws.
2
2
2
2
2
2
1
1
1
2
2
2
CAUTION! An inadequate grounding conductor connection can cause serious
personal injuries and damage to (or loss of) property. The housing screws provide
an adequate grounding conductor connection for the housing ground and should
not be replaced under any circumstances by other screws that do not provide a
proper grounding conductor connection.
NOTE! The inverter should only be installed upright, e.g., on a wall, column, or
metal carrier.
