Mounting ROB 3000
Safety
WARNING!
Danger due to incorrect operation and incorrectly performed work.
This can result in serious injury and damage to property.
▶
All the work and functions described in this document must only be carried out by
trained and qualified personnel.
▶
Read and understand this document.
▶
Read and understand all the Operating Instructions for the system components,
especially the safety rules.

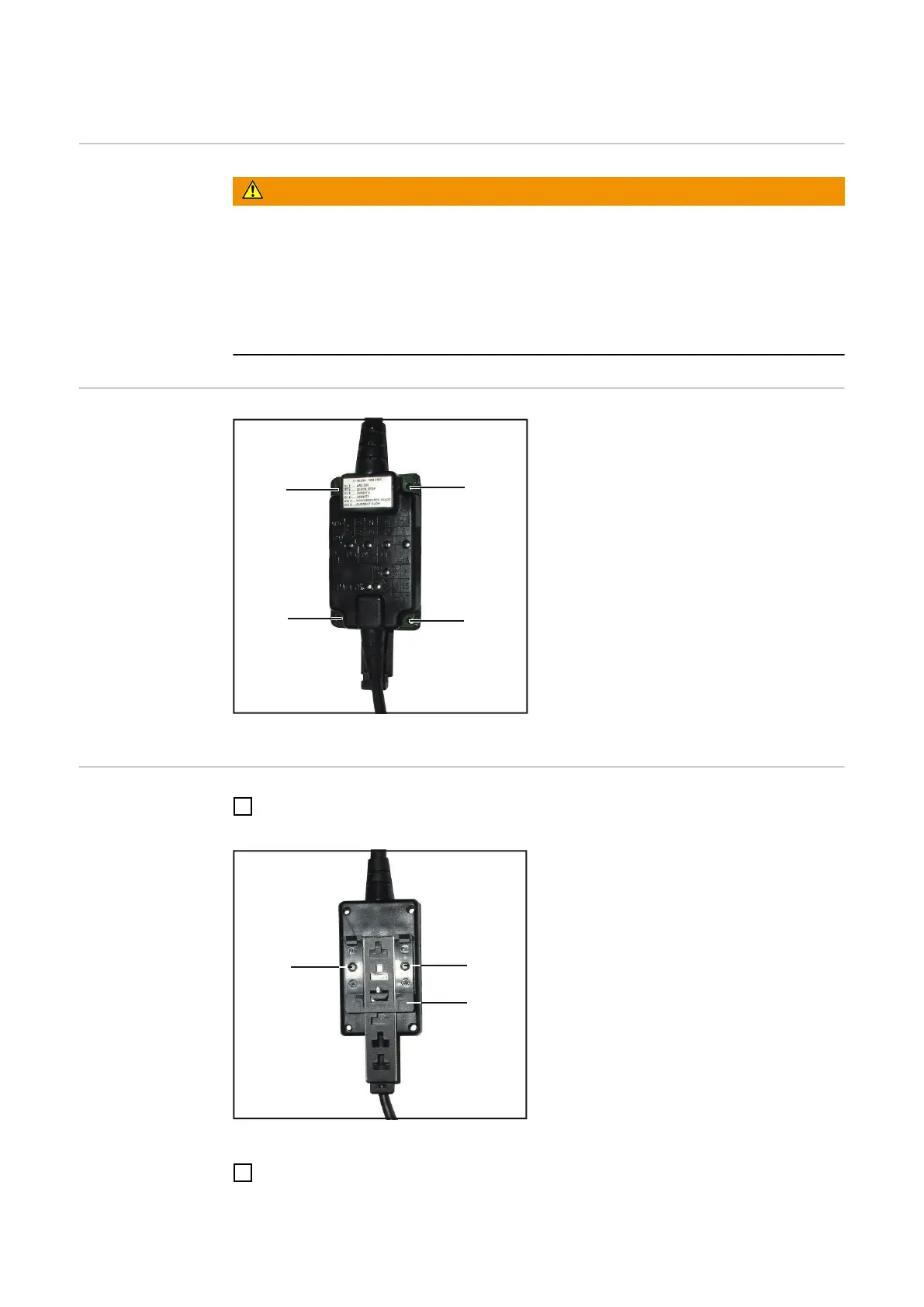

Fasten ROB 3000
via mounting
bores
Mounting bores Ø 4.2 mm (0.17 in.)
IMPORTANT! When mounting ROB 3000
via the mounting bores (1) the following
shall be observed:
- Use only appropriate screws (diame-
ter of bore Ø 4.2 mm (0.17 in.)
- Fix always regularly by means of 4
screws
- Max. tightening torque 0.4 Nm
NOTE! Don’t tighten the screws too much.
An excessive tightening torque may
damage the ROB 3000 and even lead to
breakage.
Mounting the top-
hat rail holder
1
Fasten the enclosed top-hat rail holder (2) onto the robot interface ROB 3000, using
2 screws (3).
Mount the top-hat rail holder to the ROB 3000
2
Hook the positioning lugs (4) of the top-hat rail holder to the top-hat rail (5)
28
