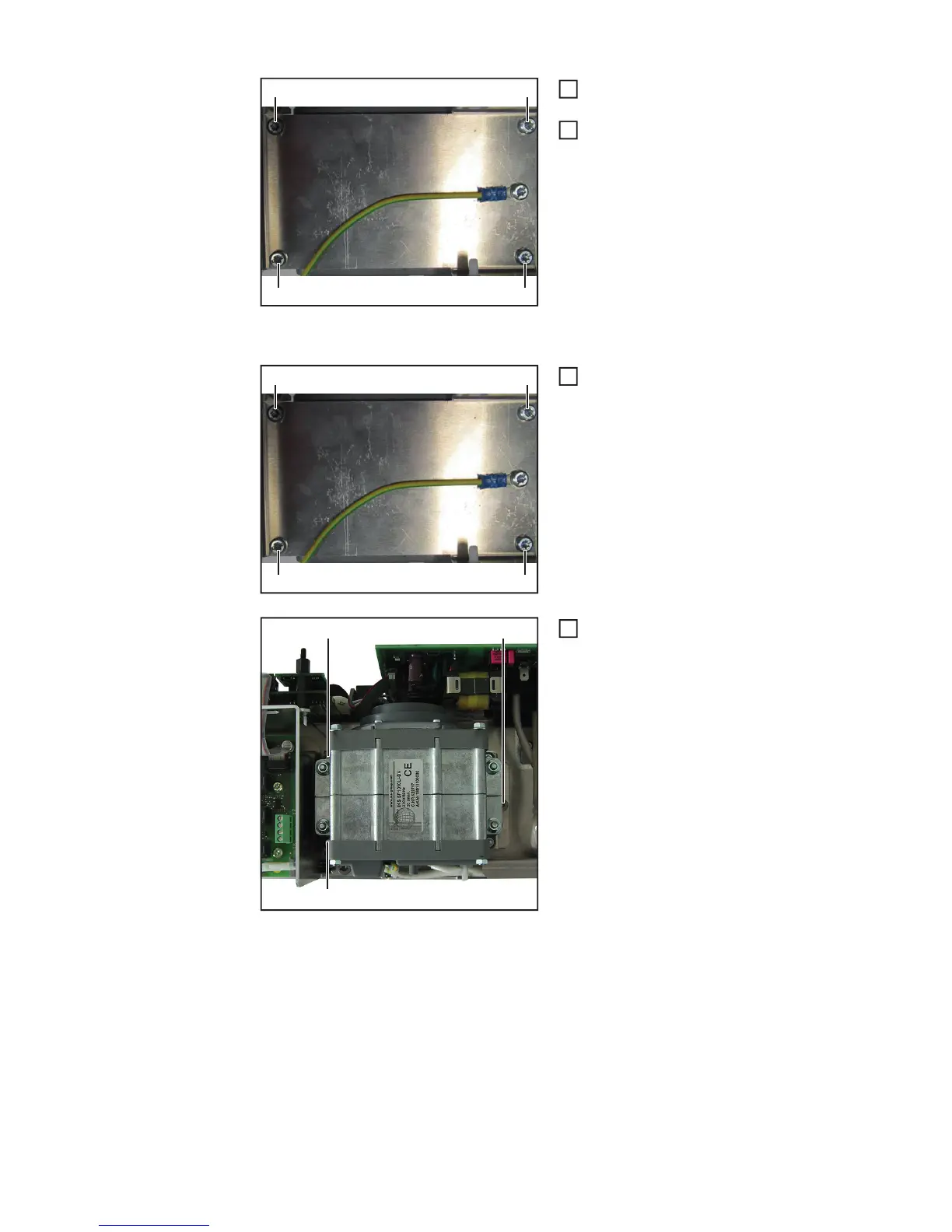

Undo the four 4x14 TX20 Tapite
screws (6)
Remove the electrolyte circulation
pump from the retaining plate
Installing the electrolyte circulation pump:
Place the electrolyte circulation pump
onto the retaining plate and fit it with
four 4x14 TX20 Tapite screws (6)
[1.5 Nm]
Place the fitted electrolyte circulation
pump in position and fit it with three
5x12 TX25 screws (5)
[3 Nm]
(6)
(6) (6)
(6)
7
8
(6)
(6) (6)
(6)
1
(5) (5)
(5)
2
