Closing the device
Closing the Se-
lectiva 8 kW

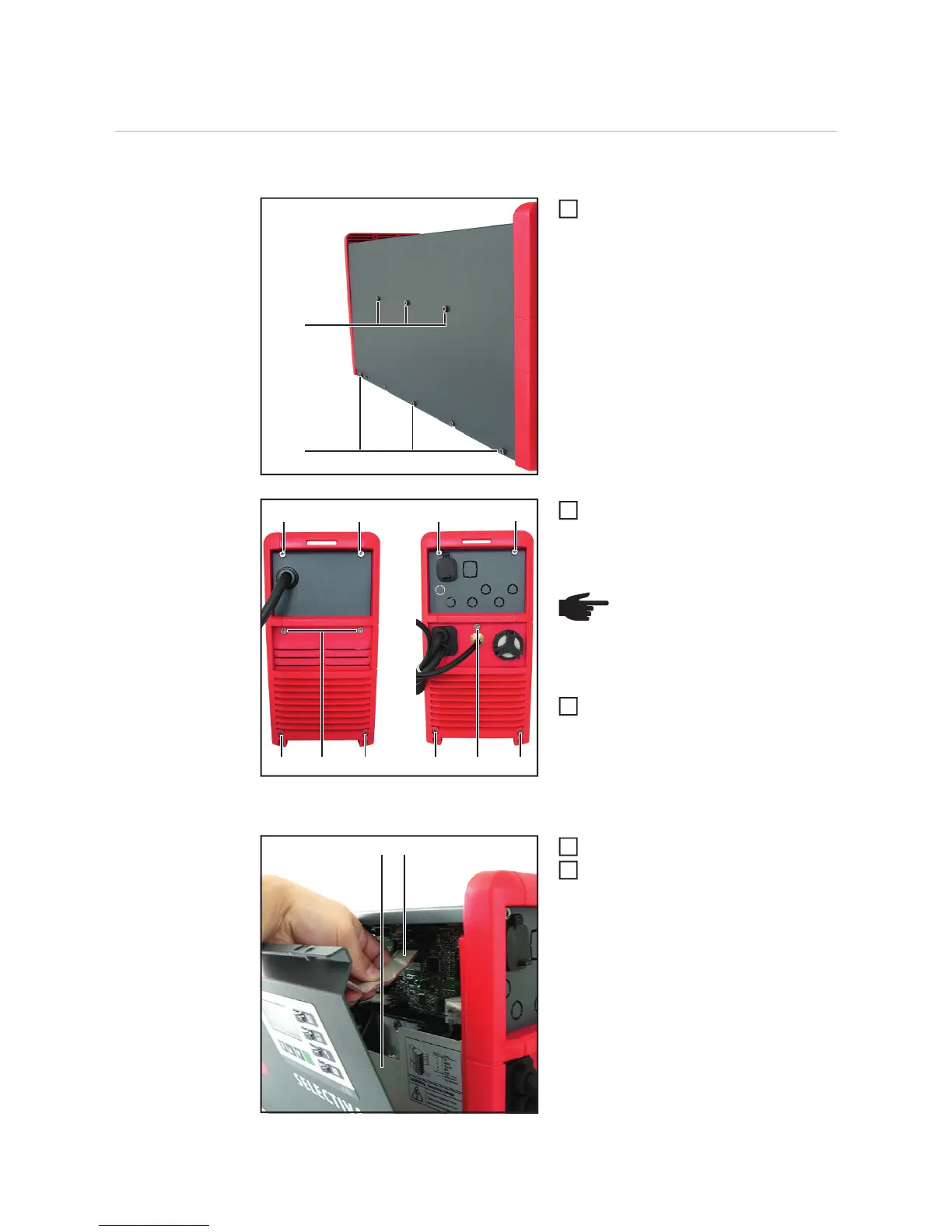

Closing the housing cover:
Insert the housing cover and fit with six
5x12 TX25 screws (4)
[3 Nm]
Fit the device frames with three 5x12
TX25 screws (2)
[3 Nm]
Engage the AC/DC connecting plate
and fit it with four 5x16 TX25 screws (1)
[3 Nm]
Closing the front panel:
Insert the insulating sheet (3)
Establish a connection (2) from the P-
display to the P-control
(4)
(4)
3
(1) (1) (1) (1)
(3) (2) (3) (3) (2) (3)
NOTE! If the device frames were
removed, they must be fitted with
four additional 5x12 TX25 screws
(3) [3 Nm]
2
3
(3) (2)
1
2
