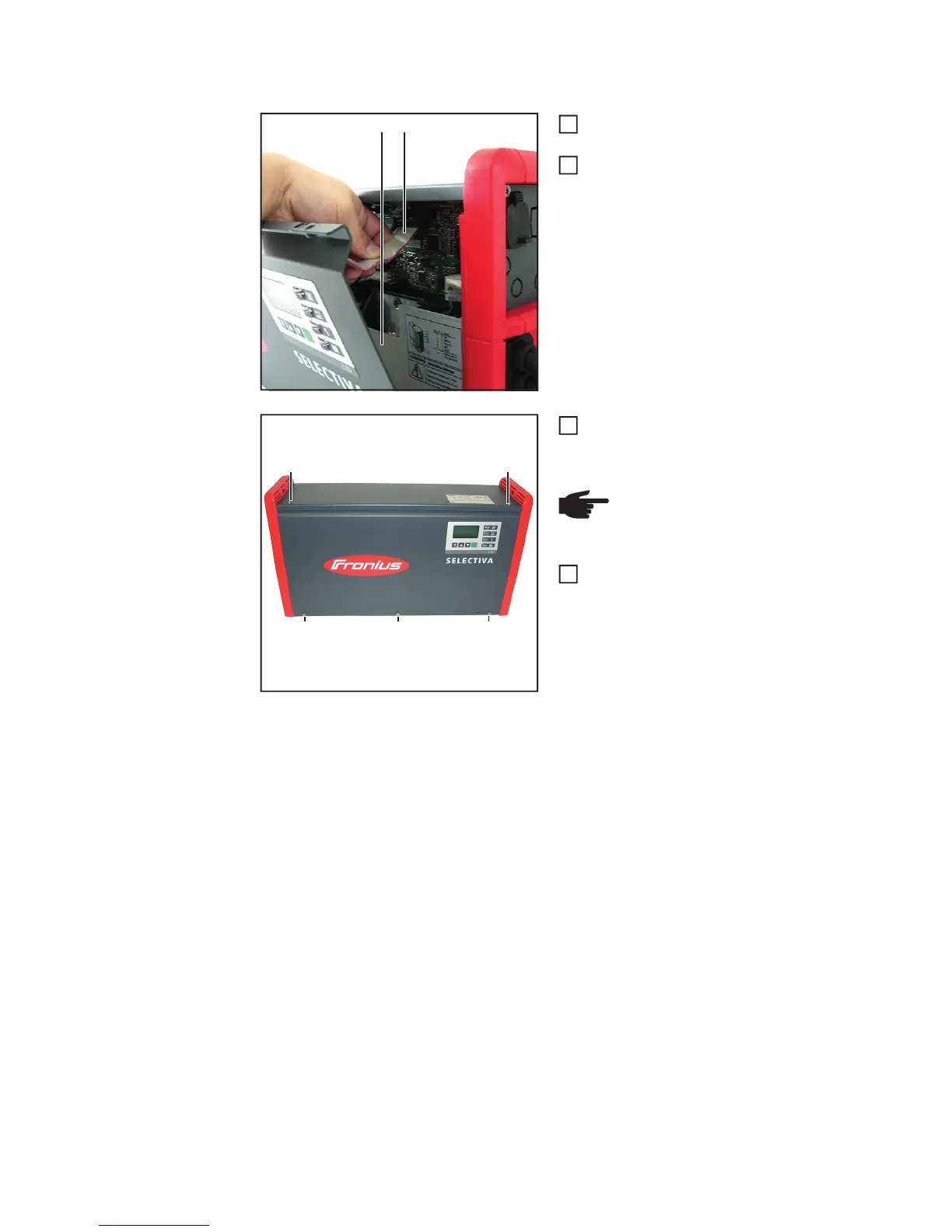

Closing the front panel:
Insert the insulating sheet (1) and at-
tach top right with cable tie
Establish a connection from the P-dis-
play to the P-control
Thread/engage the front panel at the
top
To avoid distorting the front panel, fit
with five 5x12 TX25 screws (2-6) in the
correct sequence
[3 Nm]
(3) (2)
1
2
(7) (8)
(5) (4) (6)
NOTE! Insert/connect the LED dif-
fuser strips, if present
4
5
