92

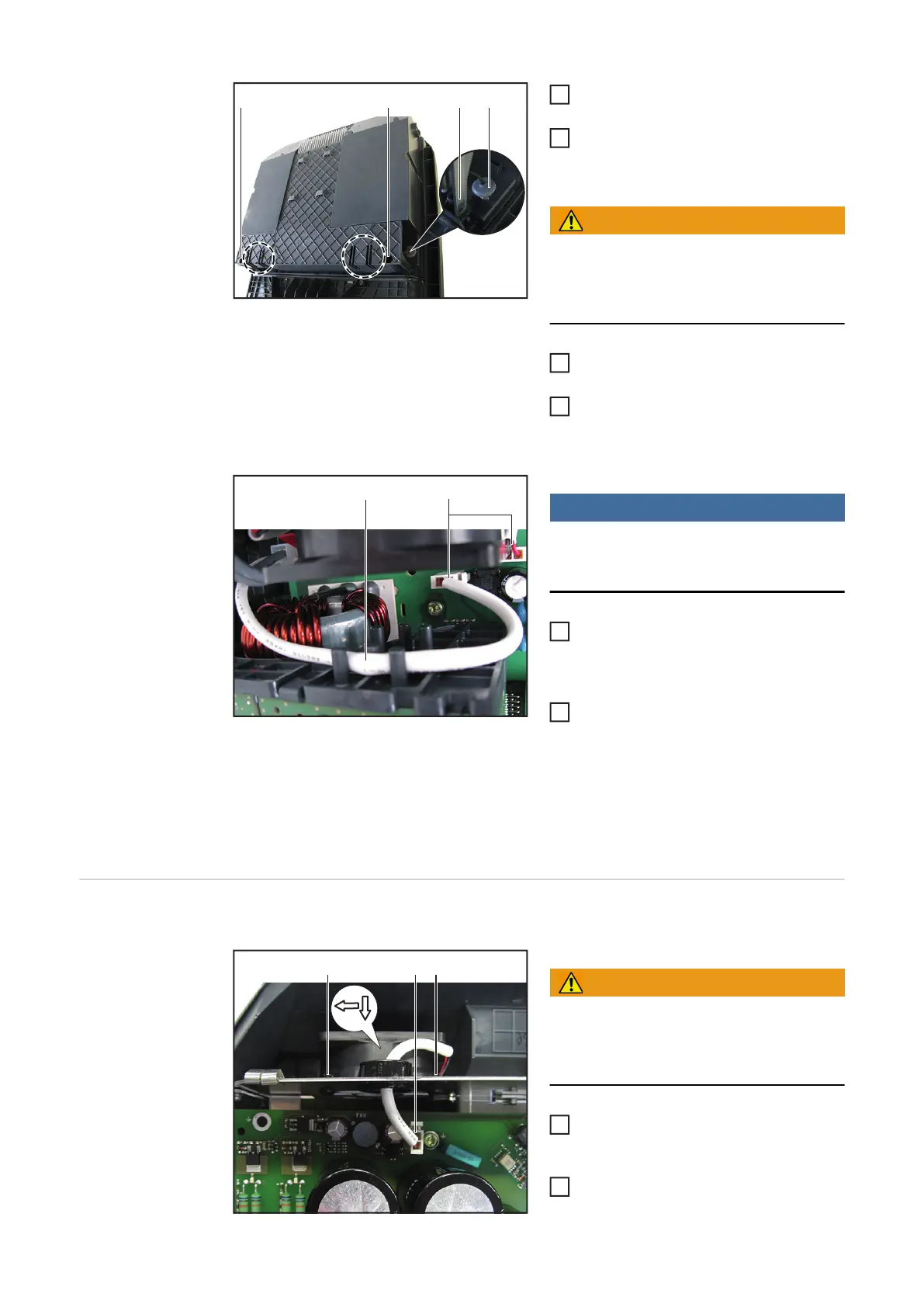

Place the air duct on the rear of the in-
verter
Feed in both fan cables and press in
the air ducts (4) on both sides
WARNING!
The seal plugs must be completely in-
serted in order to ensure leak-tightness
Snap in the locks (6) for the air duct on
both sides
Mount the air duct using two 5x14
TX25 screws (3)
[2.15 Nm]
NOTE!
Carefully turn the inverter around.
Plug in both fan cables (1) on the Sym-
oFIL and insert the lower cable into the
cable guide (2)
Close the inverter and place it in the
wall bracket (see "Opening and Clo-
sing the Device")
After switching on the inverter, carry out a
fan test via the display (see Operating Inst-
ructions)
Replacing the 4k5
Internal Fan
Removing the Internal Fan:
WARNING!
Follow the safety rules (see the begin-
ning of the "Safety" section)
Take the inverter out of the wall bra-
cket and open it (see "Opening and
Closing the Device")
Disconnect and pull out the fan cable
(1) from the SymoPS
(3) (3) (4)
(6)
2
3
4
5
(2) (1)
6
7
(1) (2)(2)
1
2
