Fronius Symo Advanced Series User Manual

25
EN-US
1 2
3
If AC cables are laid over the shaft of the
DC main switch or across the DC main
switch connection block, the cables may be
damaged when the inverter is pivoted or the
inverter may not be able to be pivoted.

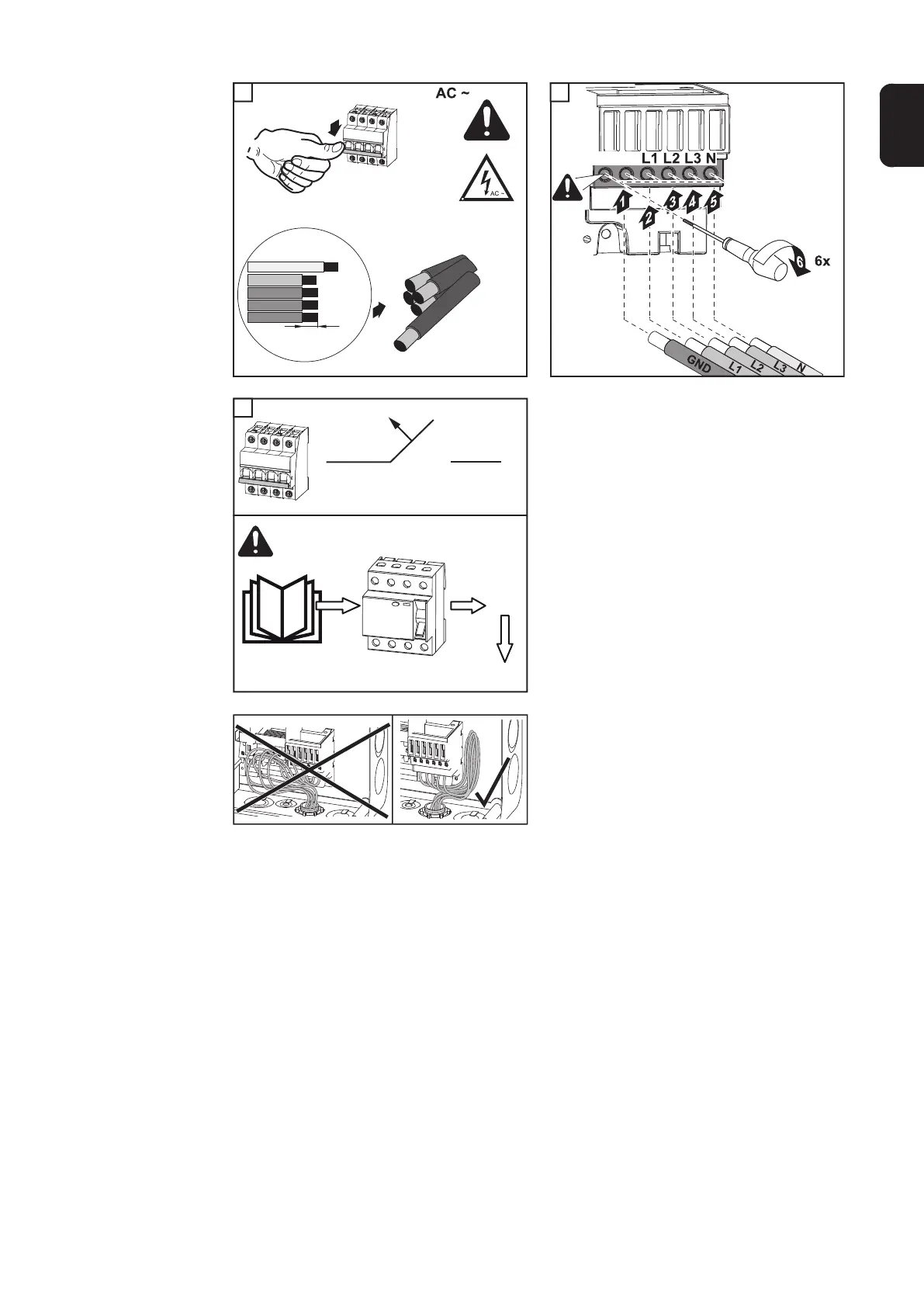

IMPORTANT! Do not lay AC cables over the shaft of the DC main switch or across the DC
main switch connection block!
0.6 in. (15 mm)
AC
~
PE
PE
PE
1
OFF
1
GNDGND
Torque (Nm /
lbf.in.) → see
printing near
wire terminal
2
max. 80 A
AC ~
RCD
National Standards
?
Type A
YES
I
ΔN
≥ 100 mA
§
3

Fronius Symo Advanced Series Specifications

General

Smart Grid Ready	Yes
Protection Rating	IP66
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Frequency	50/60 Hz
Operating Temperature Range	-25°C to +60°C
Integrated Data Communication	Yes
AC nominal voltage	230 V / 400 V
Output Voltage	230 V / 400 V
Warranty	5 years
