Using for the first time
Using the Inverter
for the First Time

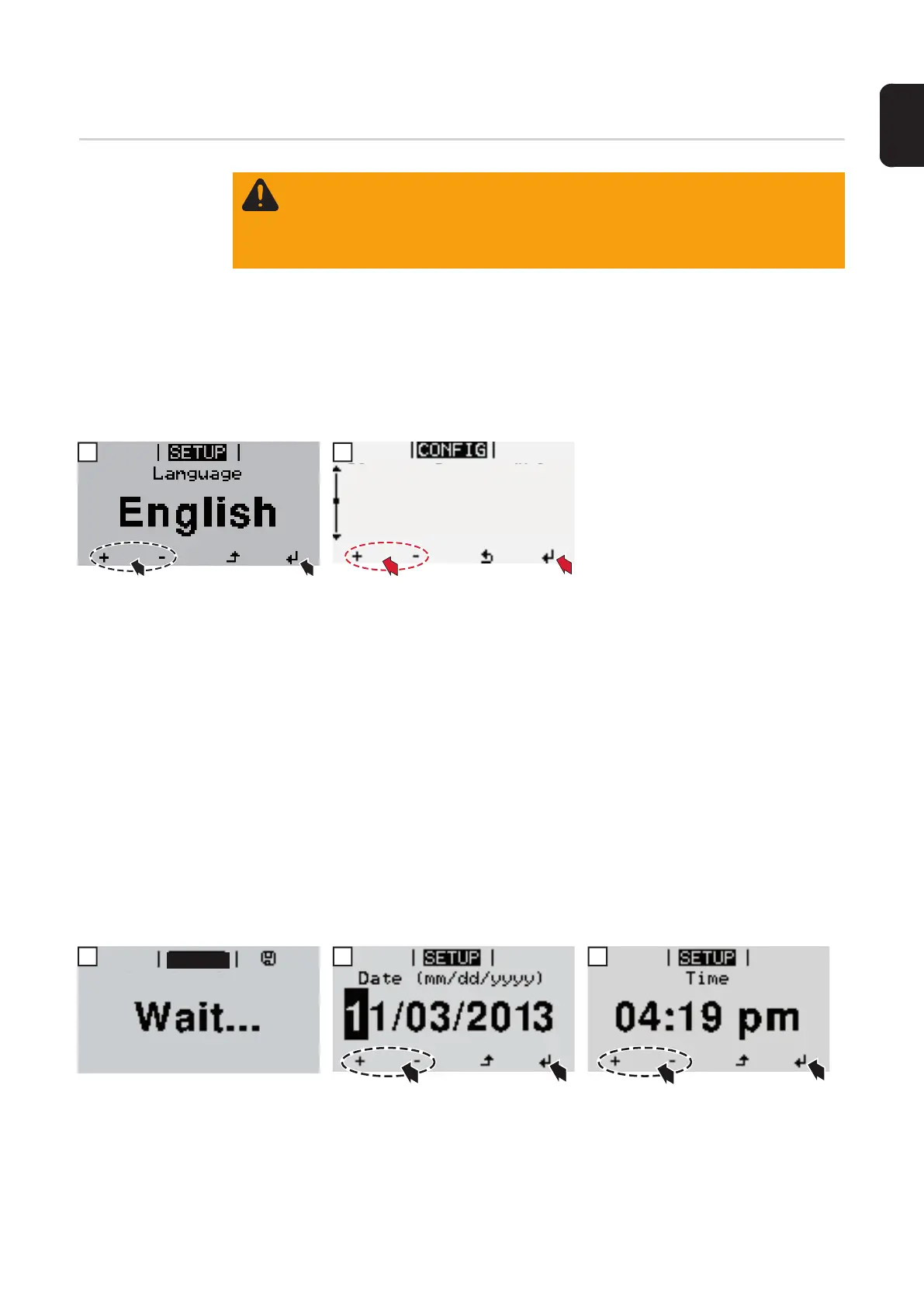

When starting up the inverter for the first time, various setup settings must be selected.
If setup is stopped before it is completed, it can be started again via an AC reset. An AC
reset can be carried out by switching the automatic circuit breaker off and on again.
The country setup is set when starting the inverter for the first time. If the country setup
needs to be changed at a later date, contact your technical support.
WARNING! Incorrect operation and incorrectly performed work can cause seri-
ous injury and damage to property. Only qualified staff are authorized to commis-
sion your inverter and only within the scope of the respective technical
regulations. Do not start up or carry out maintenance work until you have read the
safety rules.
1 1
Setups:
Symo Advanced 208–240
240 N (with NL-Mon)
240 (without NL-Mon)
208 N (with NL-Mon)
208 (without NL-Mon)
220 N (with NL-Mon)
220 (without NL-Mon)
50 Hz
50 HN (with NL-Mon)
BR N (Brazil 220 V with NL-Mon)
BR (Brazil 220 V without NL-Mon)
HI1 (Hawaii 240 V with NL-Mon)
HI2 (Hawaii 208 V with NL-Mon)
Symo Advanced 208–240
MG1N* (Microgrid 240 V with NL-
Mon)
MG1P* (Microgrid 240 V without
NL-Mon)
MG2N* (Microgrid 220 V without
NL-Mon)
MG3N* (Microgrid 208 V without
NL-Mon)
MG3P* (Microgrid 208 V without
NL-Mon)
Symo Advanced 480
480 N (with NL-Mon)
440 N (with NL-Mon)
50 HN (with NL-Mon)
CAL3 (California 480 V with NL-
Mon)
HI3 (Hawaii with NL-Mon)
MG5N* (Microgrid 240 V with NL-
Mon)
MG6* (Microgrid)
* For more information about “Field Adjustable Trip Points” and “Special Purpose Utility-Interactive” see
www.fronius.com/QR-link/42042102339
1 1 1
62
61
1
S
e
l
e
c
t
C
o
u
n
t
r
y
1
2
50 Hz
International 50 Hz
2
CONFIG
Loading Country Setup
3
2
1
6x
7x
4
2
1
4x
5x
5
To Next Page
Loading...
