Fronius Symo Advanced Series User Manual

47
EN-US
Seal Conduits
1
Conduit
Conduit
AC~
Condensation
Air circulation
InsideOutside
DC=

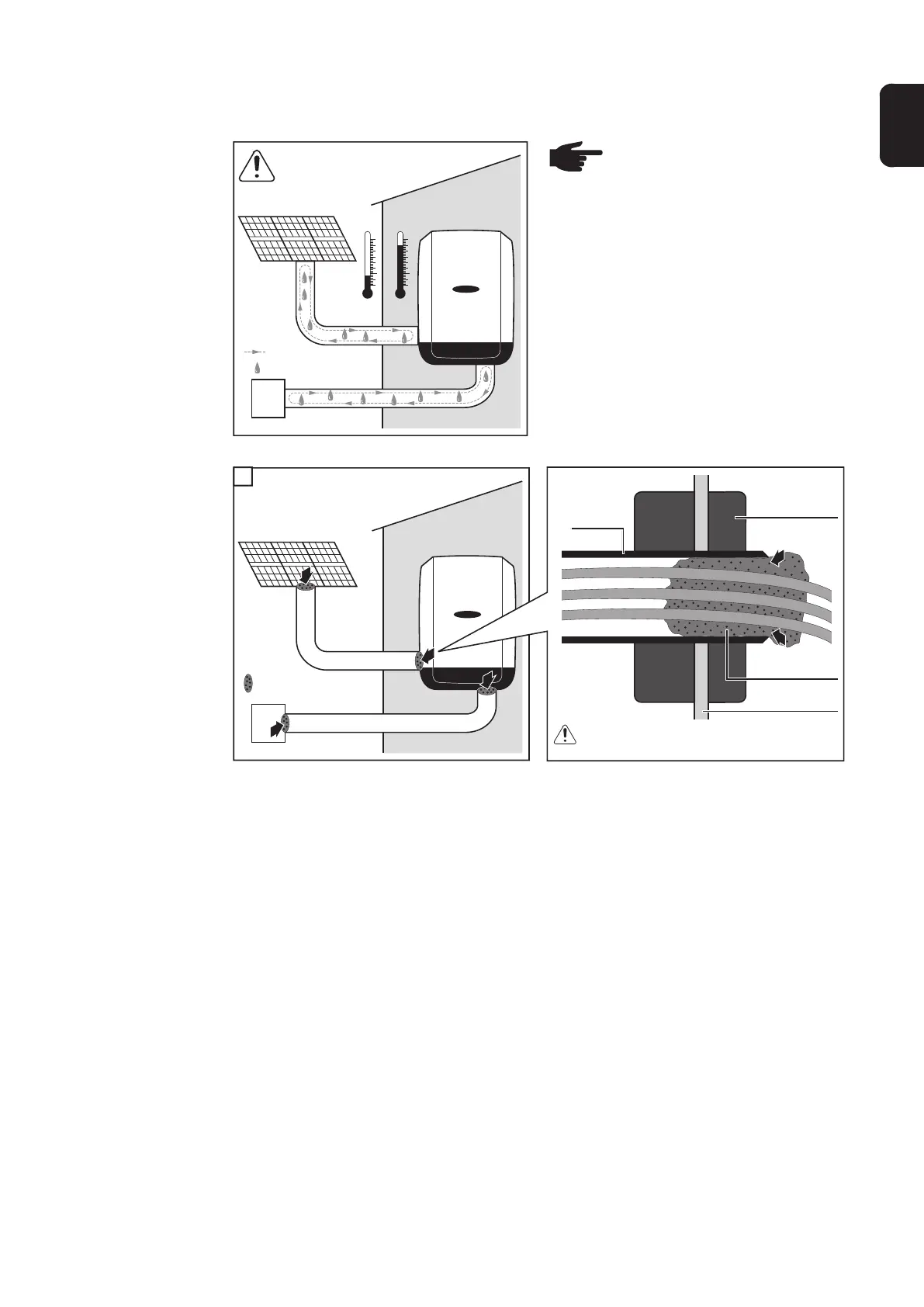

NOTE! Condensation in the con-
duits can damage the inverter or
the photovoltaic system compo-
nents.
To avoid undesirable air circula-
tion and condensation in the con-
duits:
- seal all conduits in use with a
permanently elastic sealant
- seal every incoming and out-
going conduit
- seal both conduit ends.
Conduit
Conduit
AC~
InsideOutside
DC=
4
1
3
2
Permanently elastic sealant
Conduit
Inverter housing
Conduit fitting
Permanently elastic
sealant
1
1
Seal all used conduits!
Seal every incoming and every outgoing conduit!
Seal both conduit ends!
1

Fronius Symo Advanced Series Specifications

General

Smart Grid Ready	Yes
Protection Rating	IP66
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Frequency	50/60 Hz
Operating Temperature Range	-25°C to +60°C
Integrated Data Communication	Yes
AC nominal voltage	230 V / 400 V
Output Voltage	230 V / 400 V
Warranty	5 years
