105
EN
Fitting shunt
(continued)
NOTE! When putting the drive
unit (2) in place, do not pinch,
bend or strain the cables.
1. Put entire drive unit (2) in place
2. Fit the drive unit (2) using two screws
(3)

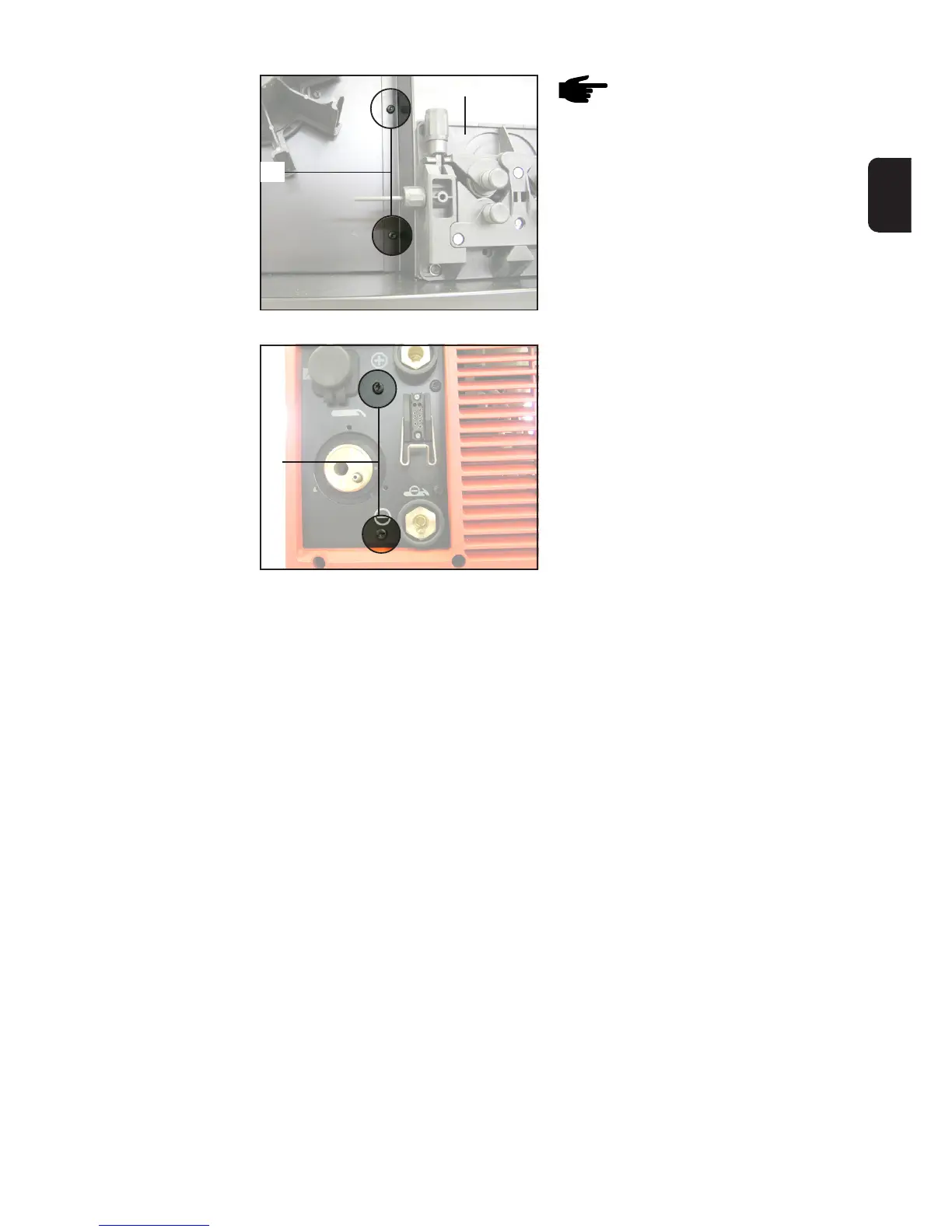

Fig.8 Fitting drive unit
(2)
(3)
1. Tighten two screws (1) on front
aperture
2. Fit side panel
3. Close wire-feed unit cover
Fig.9 Screws on the front aperture
(1)
