45
EN
Plug layout
(continued)
LED checklist

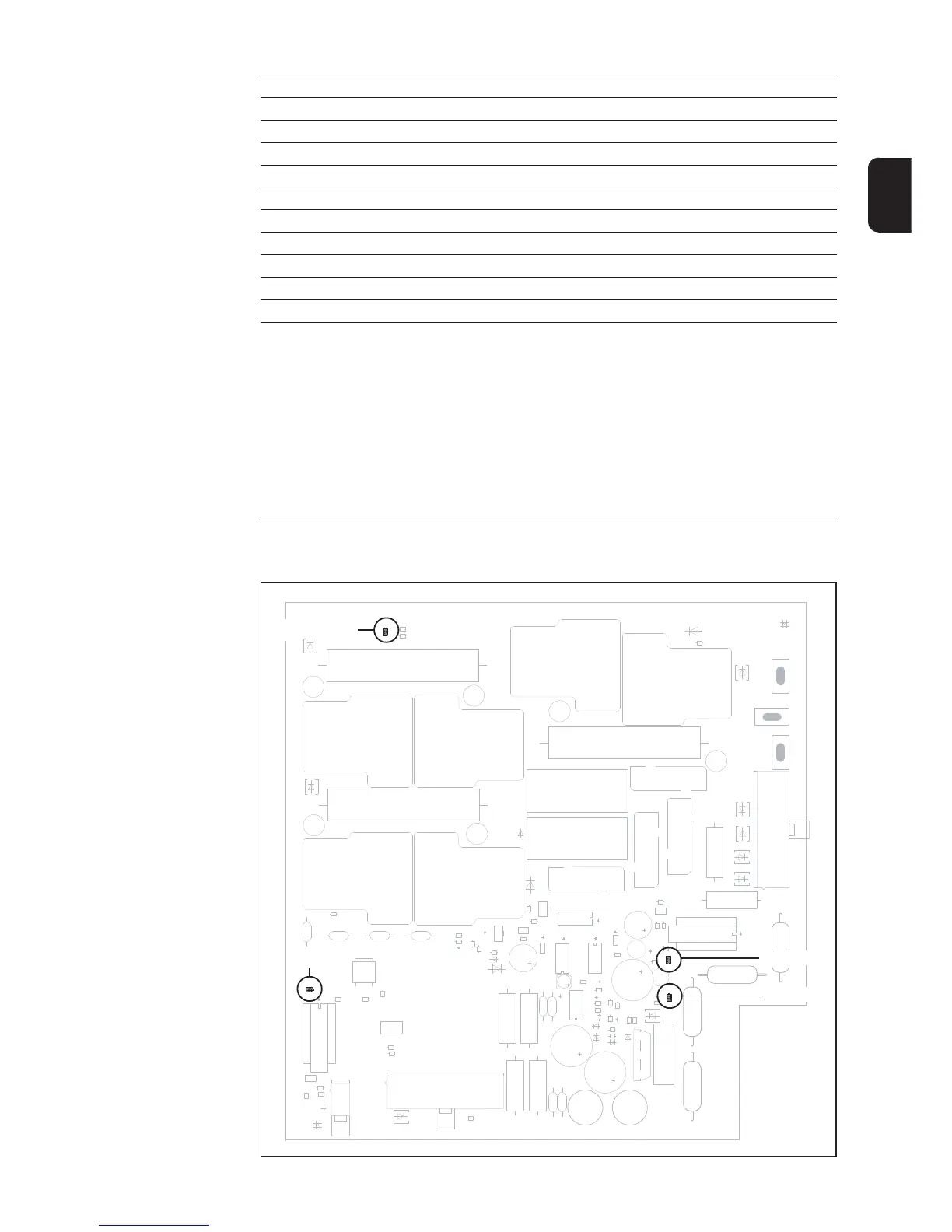

Fig. 12 LED indicators on ASU 40 PC board
LED 230 V
LED charge unit
LED + 5 V
LED + 12 V
Pin 1 Rectifer L1
Pin 2 NC
Pin 3 Rectifer L2
Pin 4 NC
Pin 5 Rectifer L3
Pin 6 NC
Pin 7 NC
Pin 8 NC
Pin 9 NC
Pin 10 NC
Pin 11 Rectifer L2
Pin 12 NC
Pin 13 NC
Pin 14 NC
Pin 15 NC
Pin 16 NC
Pin Function
X2 Connection to 2nd line filter L1 out
X3 Connection to 2nd line filter L2 out
X4 Connection to 3rd line filter L3 out
X5 Connection to 2nd rectifer L1
X6 Connection to 2nd rectifer L2
X7 Connection to 2nd rectifer L3
X8 not connected
X9 Connection to cooling unit 230 V
X10 Connection to cooling unit L2
X11 Connection to cooling unit L1
X12 Connection to 1st primary rectifer
