Fronius TransPuls Synergic 3200 - Special Functions and Options Overview

109
EN
Fitting transfor-
mer
(continued)
NOTE! When fitting the primary
transformer leads, ensure that
they are assigned to the correct
terminals:
- e.g. screw transformer lead
„1+“ to terminal „N1+“
1. Fit the following to the BPS 42/50 PC
board using 4 screws (1):
- Primary transformer leads, as
described on labelling
- Protective elements (2)
(1)
(1)
(2)
(2)

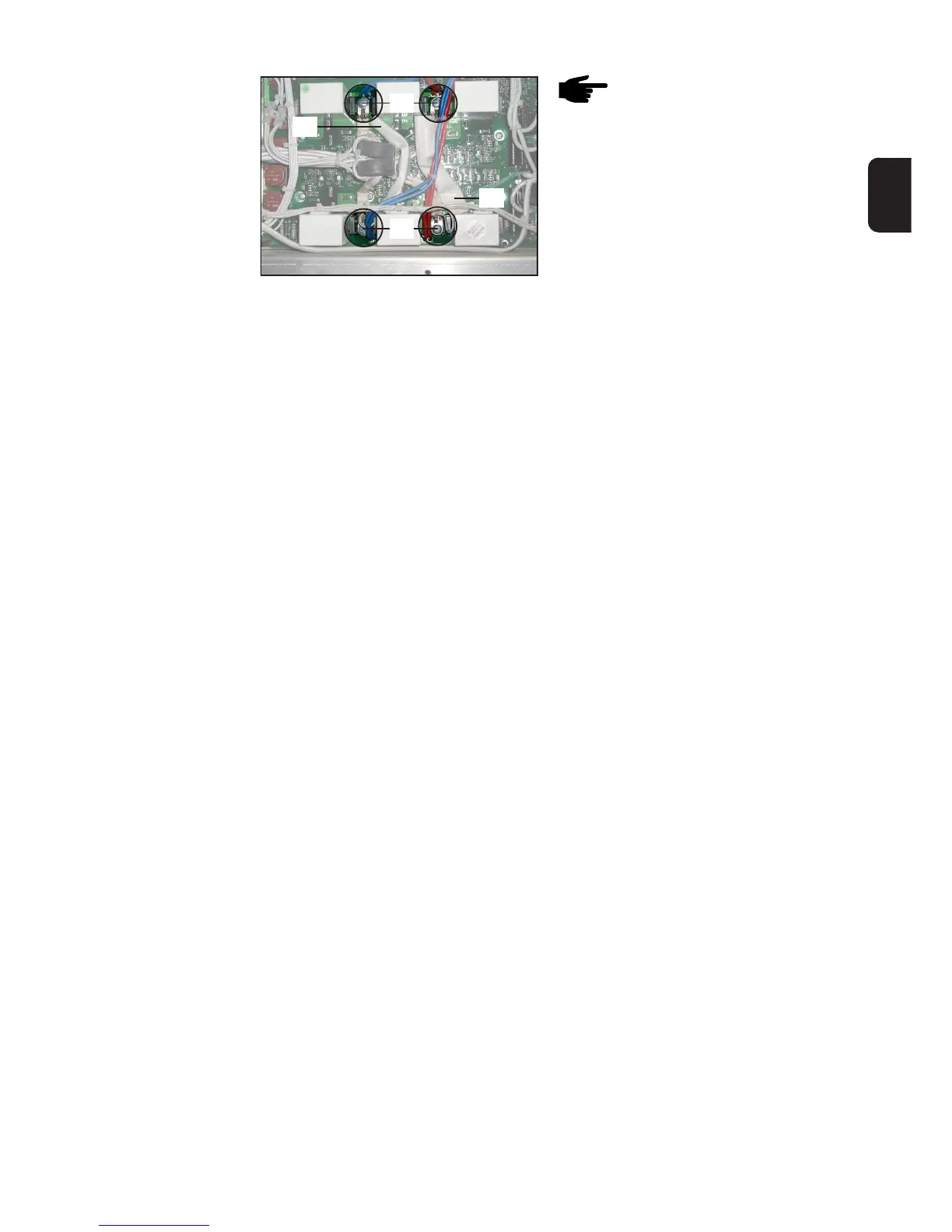

Fig. 8 Fitting transformer leads
