Connections, Switches, and Mechanical Compon-
ents

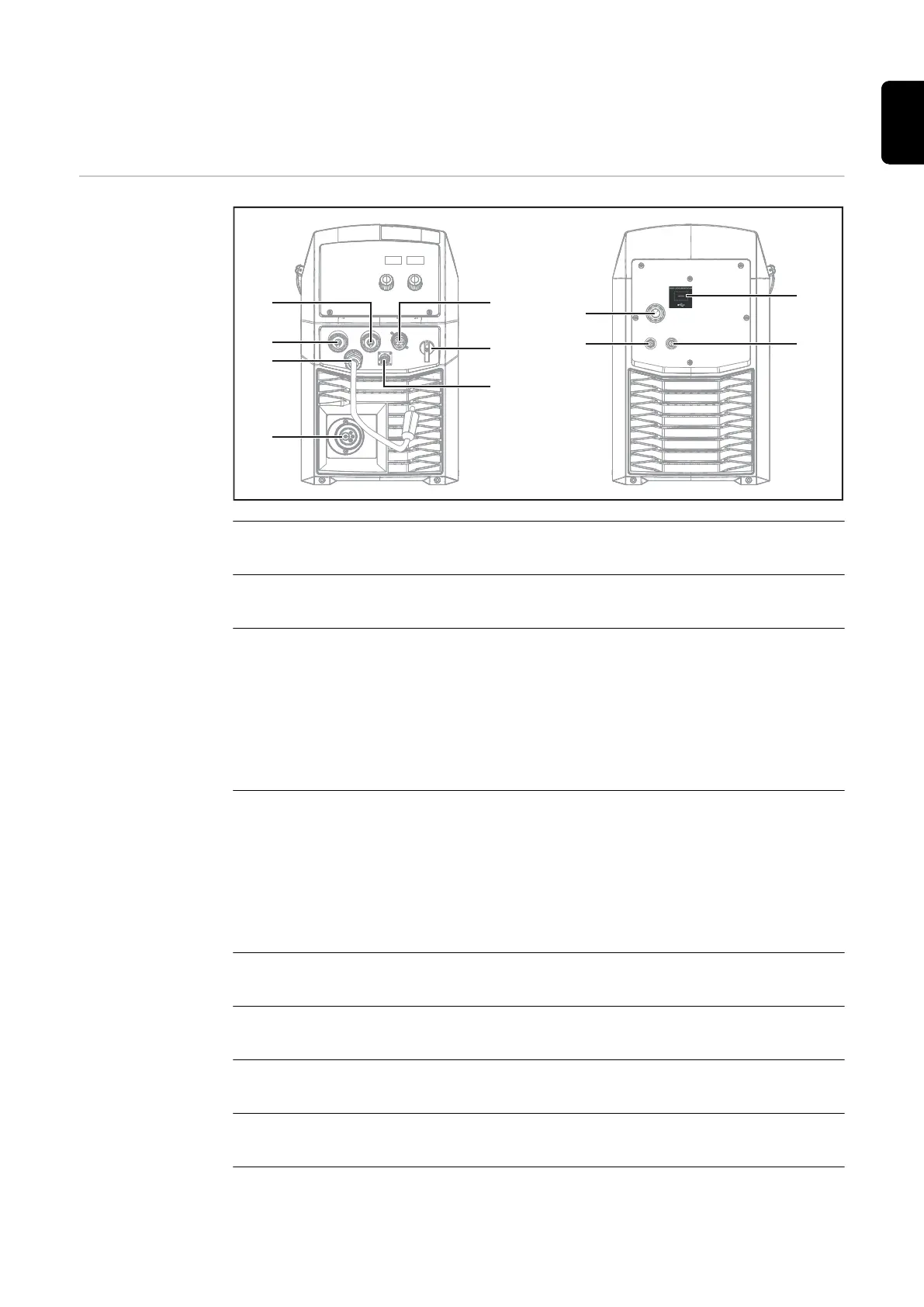

Front and back
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(11)
(8)
(9)
(10)
(1) Welding torch connection
For connecting the welding torch
(2) Polarity reverser
For selecting the welding potential on the MIG/MAG welding torch
(3) (-) Current socket with bayonet latch
Used for
- Connecting the grounding cable or polarity reverser for MIG/MAG welding
(depending on the wire electrode used)
- Connecting the electrode cable or grounding cable for manual metal arc
welding (depending on the type of electrode used)
- Connecting the TIG welding torch
(4) (+) Current socket with bayonet latch
Used for
- Connecting the polarity reverser or grounding cable for MIG/MAG welding
(depending on the wire electrode used)
- Connecting the electrode cable or grounding cable for manual metal arc
welding (depending on the type of electrode used)
- Connecting the grounding cable for TIG welding
(5) LocalNet connection
Standardized connection for remote control
(6) Power switch
For switching the power source on and off
(7) TMC connection (TIG Multi Connector)
For connecting the TIG welding torch
(8) MIG/MAG shielding gas connection socket
For the shielding gas supply to the welding torch connection (2)
(9) Mains cable with strain relief
Not prefitted on all models
37
EN-US
