TransTig
2500 / 3000 Com-
fort
(1)
(2)
(3)
(4)
(5)

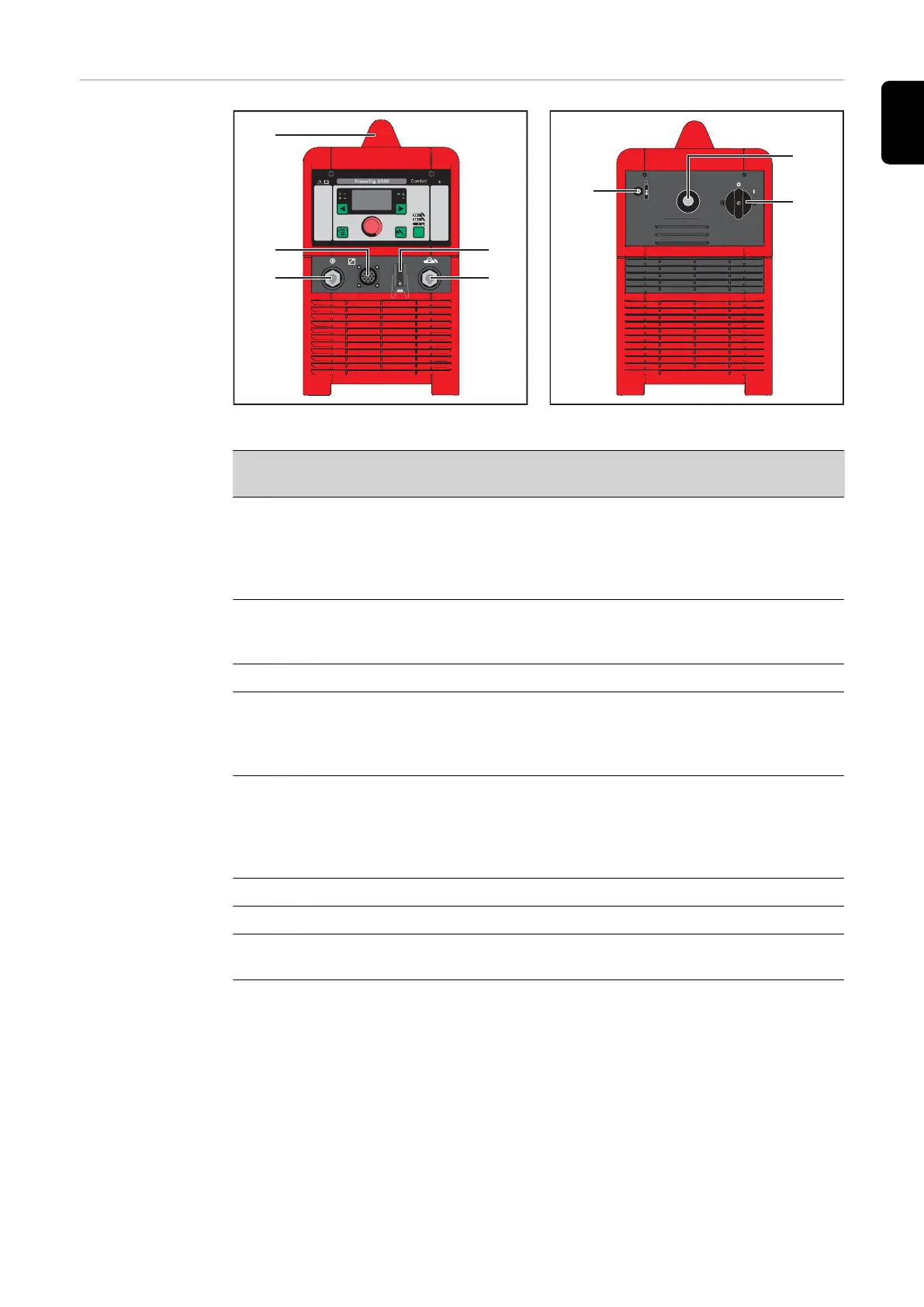

TransTig 2500 / 3000 Comfort - front
(6)
(7)
(8)
TransTig 2500 / 3000 Comfort - rear
No
.
Function
(1) (+) current socket with bayonet latch
for connecting
- the grounding (earthing) cable when TIG welding
- the electrode cable or grounding (earthing) cable during MMA welding
(depending on electrode type)
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, Job-
Master TIG welding torch, etc.)
(3) Handle
(4) Torch control connection
- for connecting the control plug of a conventional welding torch
- input for the collision protection signal when a robot interface or field bus
coupler is connected
(5) (-) current socket with bayonet latch
for connecting
- the TIG welding torch
- the electrode cable or grounding (earthing) cable during MMA welding
(depending on electrode type)
(6) Shielding gas connection
(7) Mains cable with strain relief device
(8) Mains switch
for switching the power source on and off
