READ THIS OPERATOR’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOWTHROWER. Compare the illustrations with
your SNOWTHROWER to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

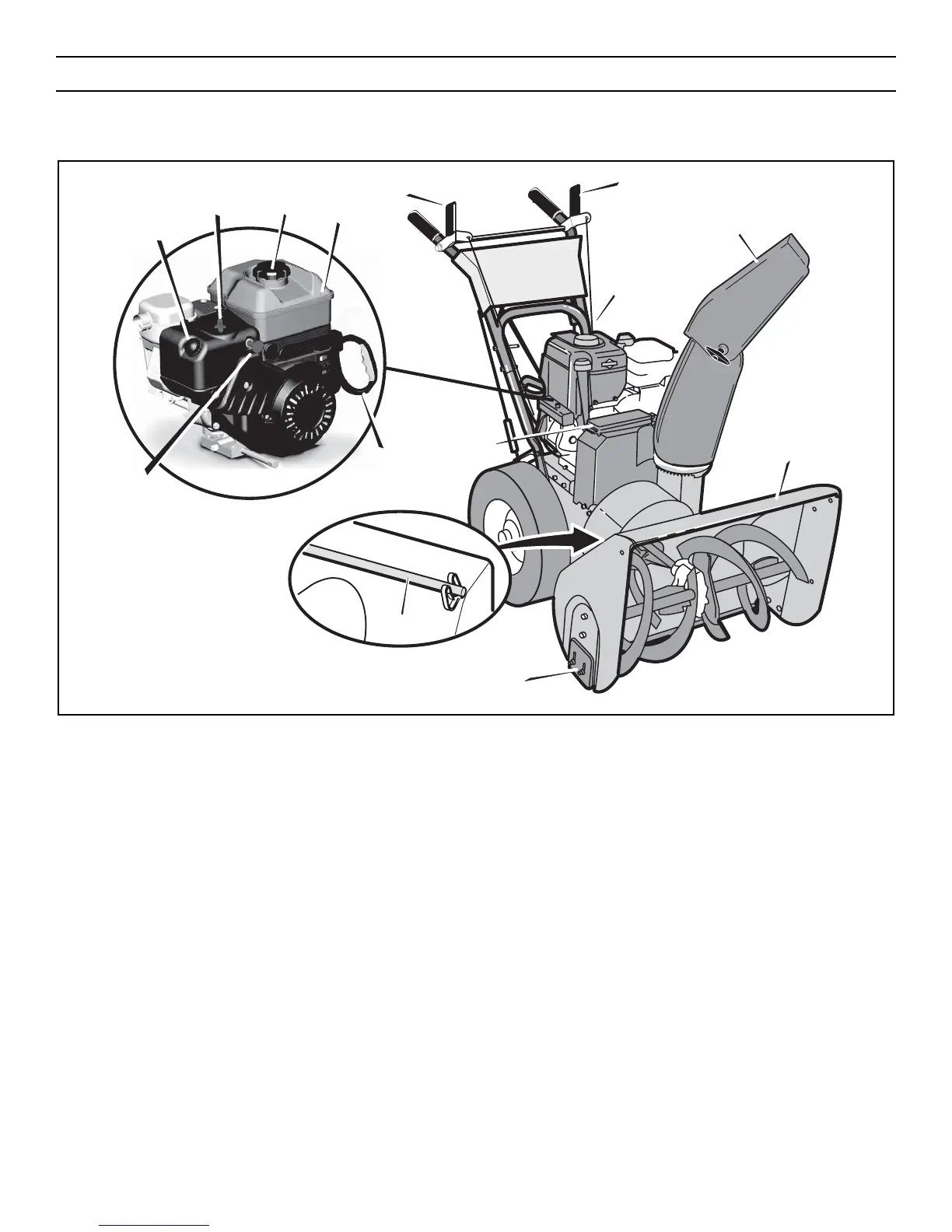

ENGINE AND SNOWTHROWER CONTROLS
Figure 10
Traction Drive Clutch Lever
Snow Chute Deflector
Auger Housing
Crank
Primer Button
Recoil
Starter
Handle
Toolbox
Clean-Out Tool
Height Adjust
Skid
Safety Key
Choke Control Gas Cap
Gas Tank
Auger Driver Clutch Lever
ENGINE CONTROLS
Choke Control – Used to start a cold engine.
Electric Start Button – Used to start the engine using the 120 volt
electric starter.
Primer Button – Used to inject fuel directly into carburetor mani-
fold to insure fast starts in cool weather.
Safety Key – Must be inserted to start engine. Pull out to stop. Do
not turn safety key.
Starter Handle – Starts the engine manually.
SNOWTHROWER CONTROLS
Speed Select Lever – Allows the operator to use one of six (6) for-
ward and two (2) reverse speeds. To shift, move speed select lever
to desired position.
NOTE: Do not move speed select lever while Traction Drive
Clutch is engaged. This may result in severe damage to drive
system.
Auger Drive Clutch Lever – Used to engage and disengage the
auger and impeller. To engage push down, to disengage release.
Traction Drive Clutch Lever – Used to propel snowthrower for-
ward or reverse. Push down to engage, release to disengage.
Snow Chute Deflector – Changes the direction the snow is thrown.
Crank – Used to change direction of the snow discharge. Turn han-
dle clockwise to turn chute to right. Turn handle counter clockwise
to turn chute to left.
Height Adjust Skid – Used to adjust ground clearance of auger
housing.
Toolbox – Spare shear bolts and spacers are located in toolbox.
Clean-Out Tool – Use the clean-out tool to remove snow and
debirs from the discharge chute and the auger housing.
Drift Cutters – Cuts a path through snow higher than the auger
housing.
OPERATION
13
