LUBRICATION – EVERY 25 HOURS

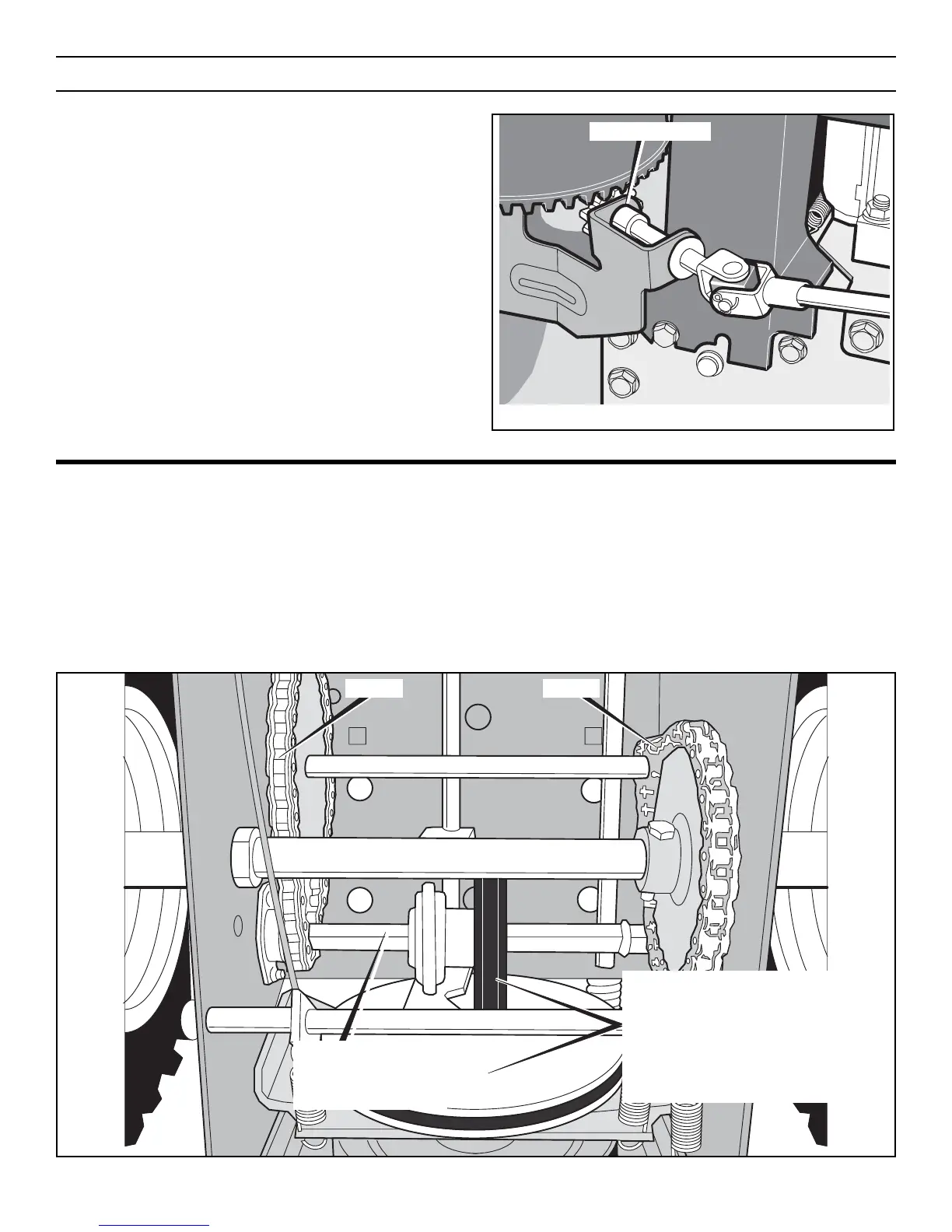

Chute Rotation Gear
Lubricate the chute rotation gear with automotive type oil (see
Figure 23).
Figure 23
Chute Rotation Gear
Chains
1. Position speed selector lever in first (1) forward gear.
2. Stand the snowthrower up on the auger housing end.
NOTE: When the crank case if filled with oil, do not leave
the snowthrower standing up on the auger housing for an
extended period of time.
3. Remove the bottom panel.
4. Lubricate the chains with a chain type lubricant.
5. Wipe the hexshaft and sprockets with 5W30 motor oil.
NOTE: Clean all excess grease or oil found on the rubber
friction wheel or the disc drive plate.
CAUTION: Do not allow grease or oil to contact the rubber
friction wheel or the disc drive plate.
6. Install the bottom panel.
MAINTENANCE
24
Figure 24
Chain
Hexshaft – wipe with
5W30 motor oil before
storage and at the
beginning of each season
WARNING: If the disc drive plate or rubber
friction wheel come in contact with grease or
oil damage to rubber friction wheel will
result.
If grease or oil come in contact with the disc
drive plate or friction wheel, make sure to clean
the plate and wheel thoroughly with an alcohol
base solvent.
Chain
