BELT ADJUSTMENT
Traction Drive Belt
The traction drive belt has constant spring pressure and does not
require an adjustment. If the traction drive belt is slipping, replace
the belt. See “How To Replace The Belts” in this section.
Auger Drive Belt
If your snowthrower will not discharge snow, check the control
cable adjustment. If it is correct, then check the condition of the
auger drive belt. If it is damaged or loose, replace it (see “Belt
Replacement” in this section of the manual).
1. Disconnect spark plug wire.
2. Remove screw from belt cover. Remove belt cover (see
Figure 32).
3. Loosen nut on auger idler pulley and move auger idler pulley
towards belt about 1/8 inch (3 mm) (see Figure 36).
4. Tighten nut.
5. Have someone engage auger drive clutch. Check tension on
belt (opposite idler pulley). Belt should deflect about 1/2 inch
(12.5 mm) with moderate pressure (Figure 33). You may have
to move idler pulley more than once to obtain the correct ten-
sion.
6. Reinstall belt cover.
7. Whenever belts are adjusted or replaced, the cables will need
to be adjusted. (See “Cable Adjustment” in this section of the
manual).
8. Attach the spark plug wire.

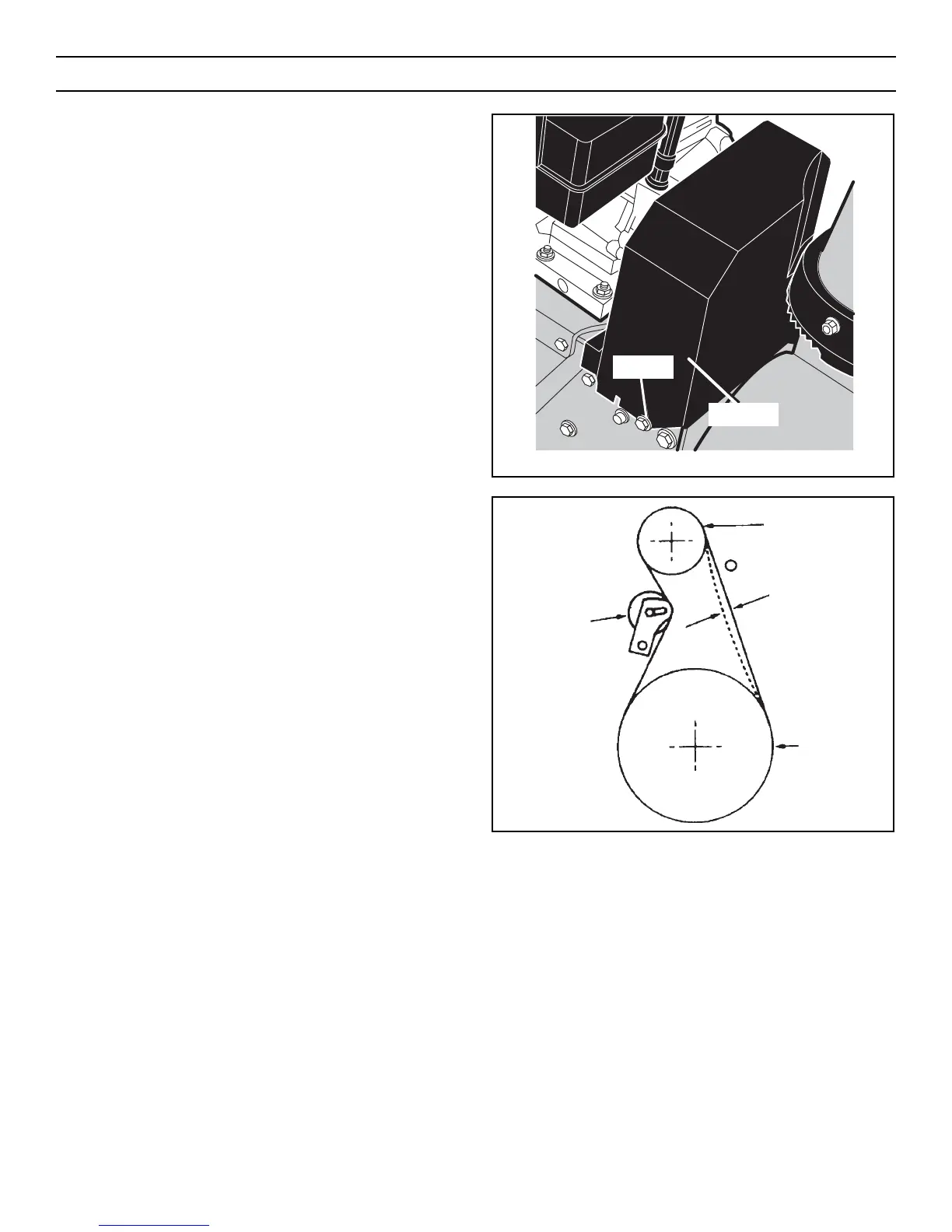

Figure 33
Idler Pulley
Engaged
Auger Drive
Engine Pulley
1/2 inch
(12.5 mm)
Deflection
Impeller
Pulley
Figure 32
Belt Cover
Screw
MAINTENANCE
28
