Assembling the Button Pad
• The CB2000 comes with a set of 24 tactile, pre-labeled button “caps”. Choose eight buttons for
assembling the button pad.
• Carefully tear away the perforated edge from the button sheet for each button. Arrange them in the
array desired. Keep in mind that the button locations shown below will correspond to specific numbered events
(1-8) that are programmed in your configuration file (see Step 2 and Appendix A).
• Orient the plastic button holder so that the backside is facing up. Place the buttons face down into the holder in
the preferred order. Assure the button orientation is correct.
• Align the CB2000’s two holes with the plastic snaps on the button holder and snap together.
The assembly is now complete and should look like the depiction illustrated below (buttons may vary).
It is now ready for powering up and configuration.

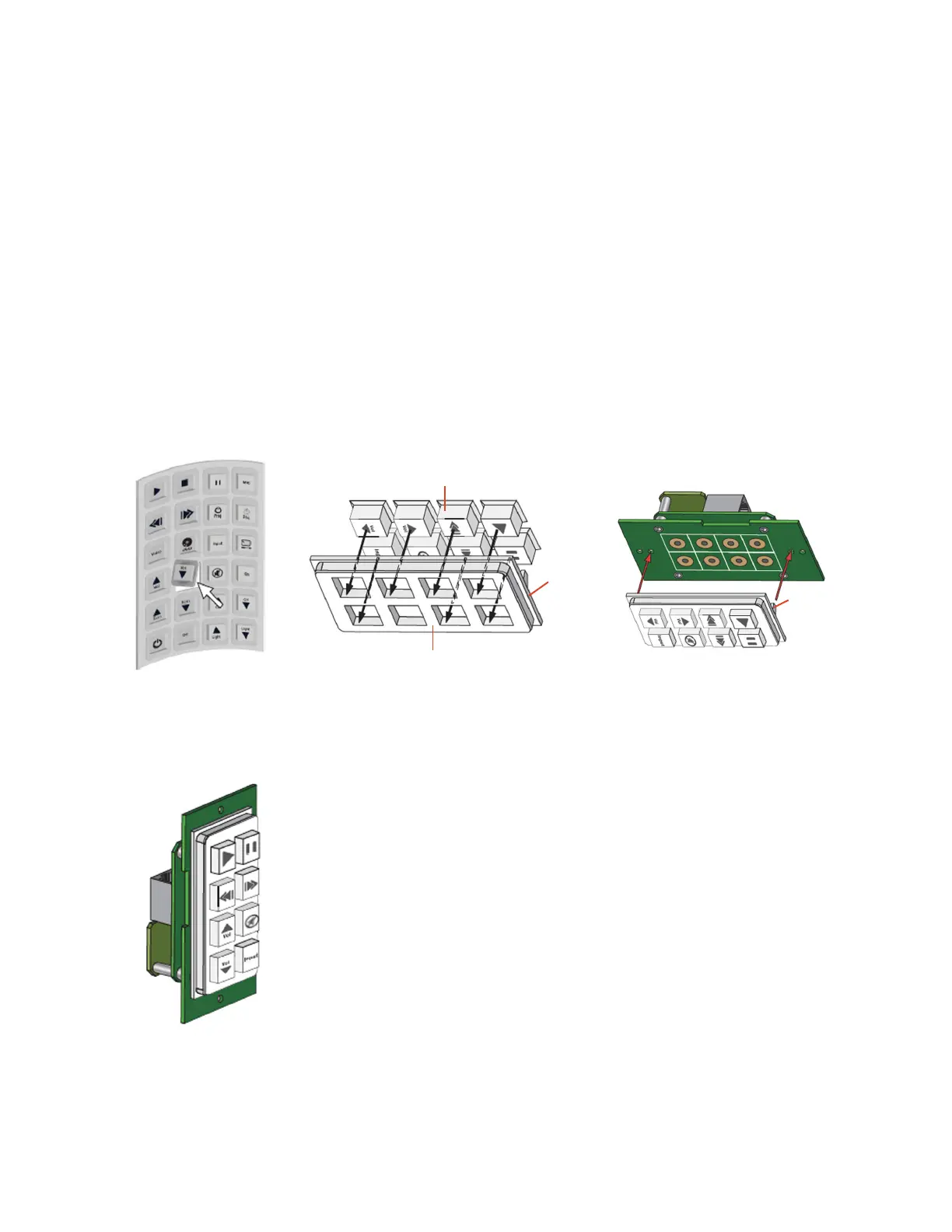

Individual buttons
