Frymaster 21814GF - Page 32

Frymaster 1814 Series Gas Fryers
Chapter 5: Filtration Operation
5-3

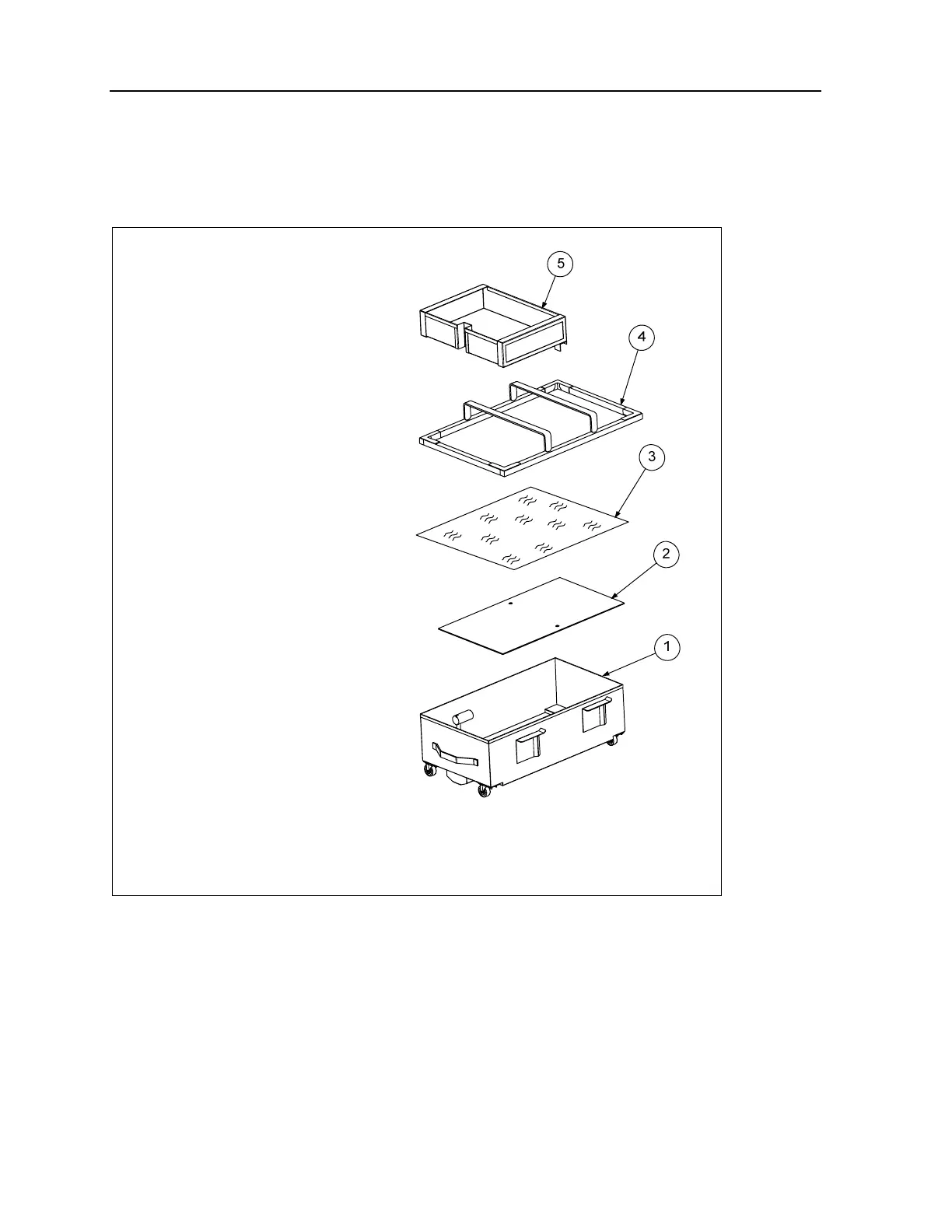

5.3.1 Filter Components
Filter paper is held in place by a hold-down ring. Oil moves through the paper, leaving behind
impurities.
1. Filter pan.
2. Filter support grid.
3. Filter paper.
4. Hold-down ring.
5. Crumb screen.
A filter unit which utilizes disposable
filter paper to filter oil.
