NANO PRO
17
Con guration to use Nano PRO out of the CAN Network
Nano PRO allows the selection of the display unit and O2 sensor reading scale, but, these settings are read from
the Power FT ECU’s during its initialization. In case it is removed from the CAN network, Nano PRO goes back to
factory con guration.

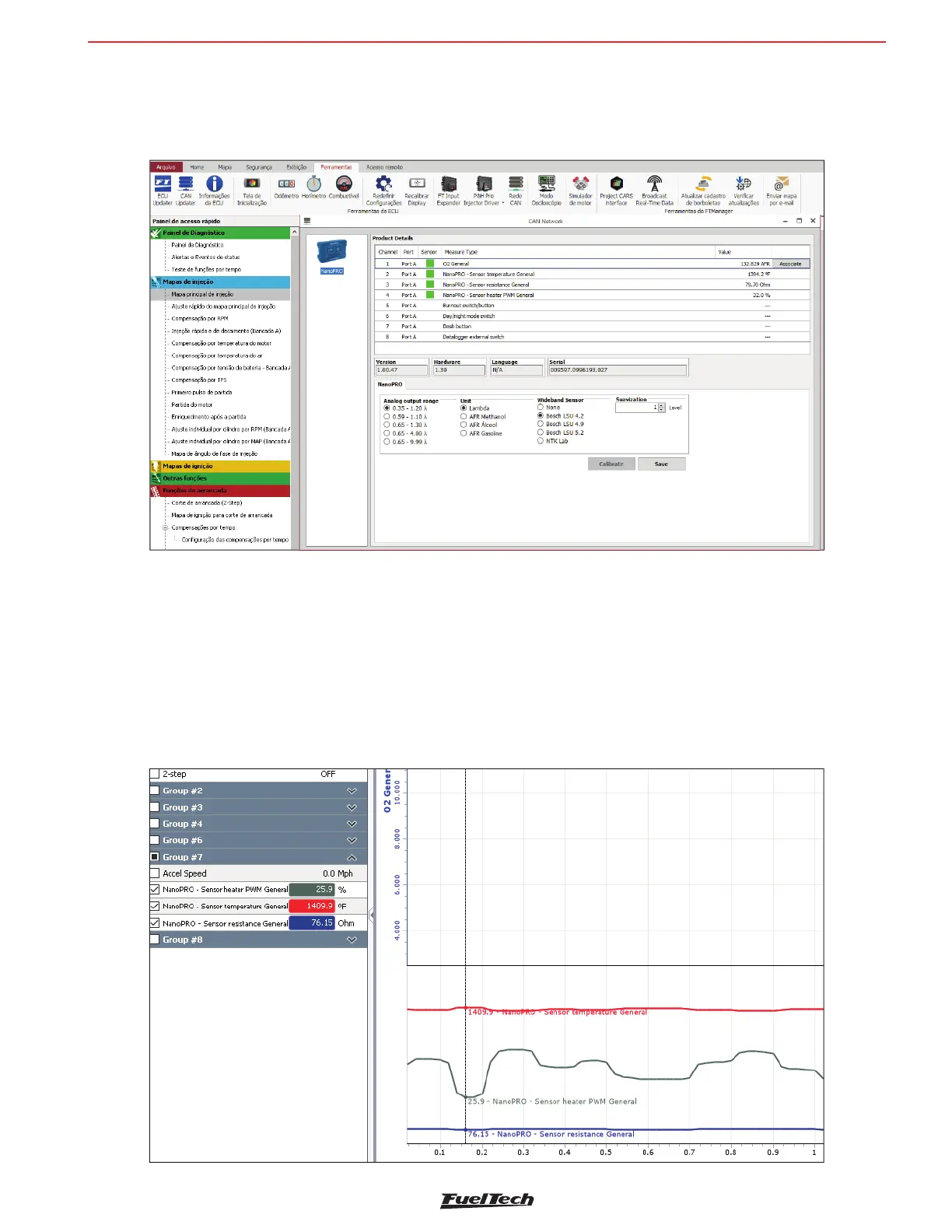

9.1 Datalogger Channels
There are 3 log channels for each O2 sensor tted to the vehicle, which record information about the O2 sensor
heating. With these channels it is possible to have a complete diagnosis, letting you know if the sensor is installed
in the correct position, for example.
Sensor heater PWM: Records the percentage of duty cycle applied to the O2 sensor heater
Sensor Temperature: Records the internal temperature of the sensor
Sensor Resistance: Records the internal resistance in Ohms of the sensor
