Version A – e.g. for PVC doors:
Cable-laying in the Euro groove.
Deburr the cable feedthrough hole and
insert the cable protection sleeves provided.
Version B – e.g. for aluminium doors:
If the cable is to be laid in the glazing rebate’s Euro groove, a
Ø 10 mm drill hole is to be drilled in the glazing rebate area.
Deburr the cable feedthrough hole and
insert the cable protection sleeve provided.
The 230 V electricity cable is a surface-mounted cable.
Conduit must be used for concealed cabling. The door
frame must be earthed/grounded.
The cable-laying for version A is described in the follow-
ing installation steps.
4.1.1 CABLE-LAYING DEPENDING ON THE DOOR DESIGN FOR ALL
INSTALLATION VERSIONS
aluminium PVC

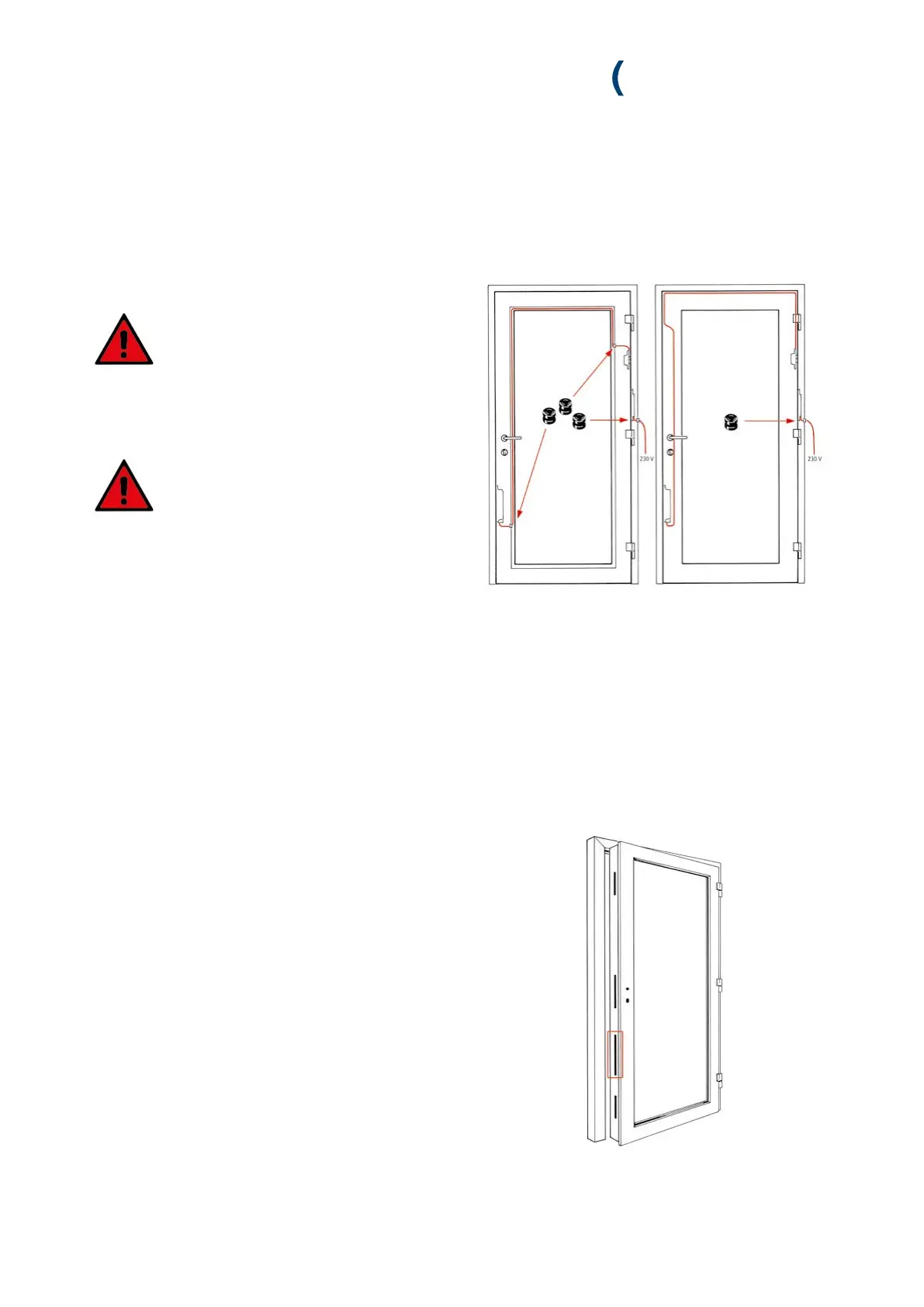

Routing in compliance with the separate routing drawing
between the main lock and the bottom additional locking
point.
4.1.2 ROUTING FOR THE ELECTRONIC DRIVE UNIT IN THE DOOR LEAF
