FUHR multitronic 881 - Routing for Tappet Contacts; Drill Hole for Surface-Contact Cable

24
WWW.FUHR.DE
multitronic
881/881GL/ServoAccess
Routing on the hinge side of the door leaf
Make sure that the surface-contact device
and the tappet contact device are aligned
accurately horizontally. Refer to chapter 4.1.4.

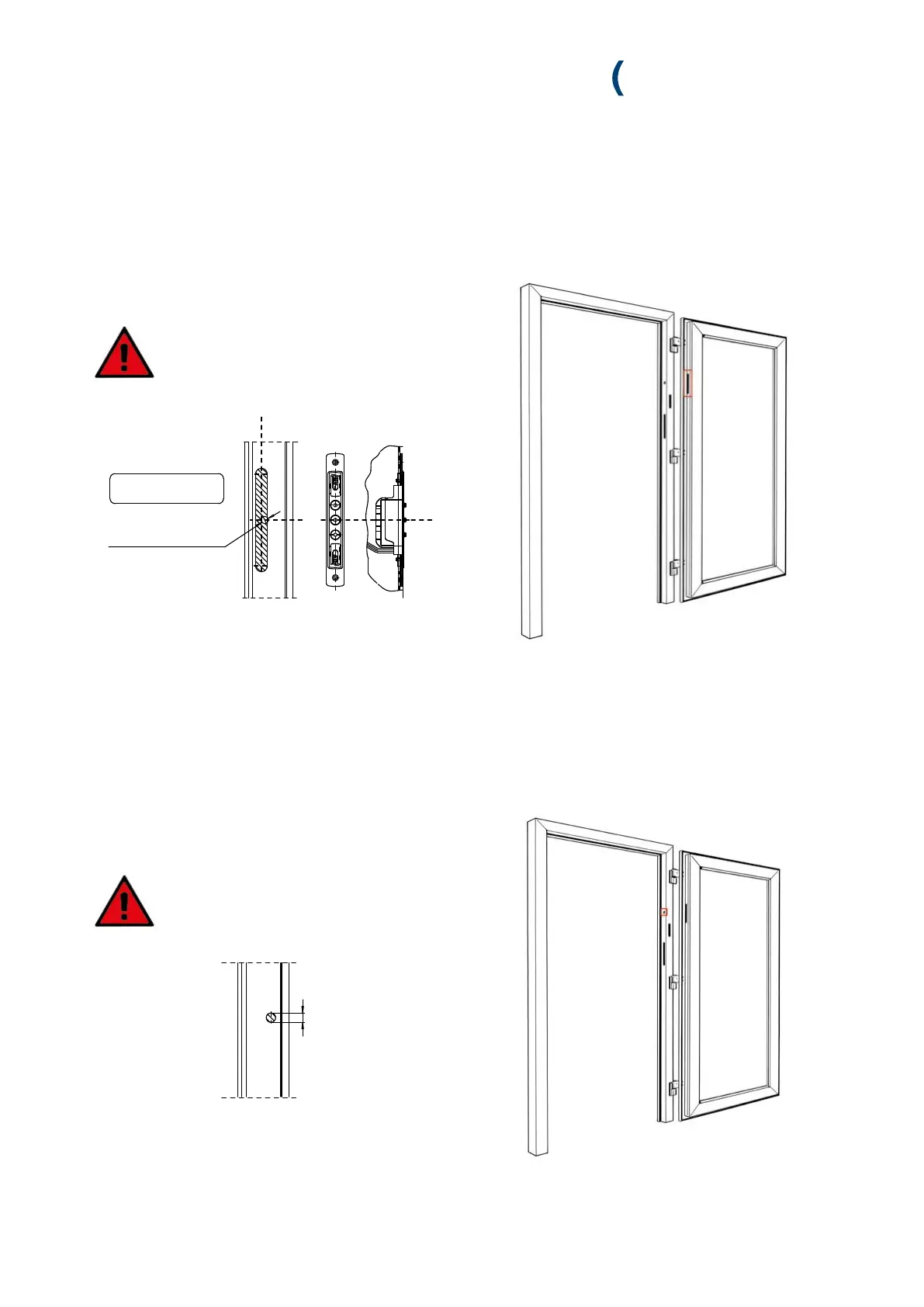

4.1.3 ROUTING FOR THE TAPPET CONTACTS IN THE DOOR LEAF
ON THE INSTALLATION VERSIONS 2 -6
Exemplary routing. Please ask for the particular
profile-related routing dimensions.
Note the same "+" und "-"
polarity on the contact
surfaces and tappet contacts!
Deburr the ø10 mm through-hole
on both sides & insert the rubber
protective nozzle
Drilling in the frame profile, laterally at the same height as
the tappet contact device
Care must be taken to ensure that the sur-
face-contact device and the tappet contact
device are aligned accurately horizontally.
Refer to chapter 4.1.3.
4.1.4 DRILL HOLE FOR THE SURFACE-CONTACT’S CABLE
ON THE INSTALLATION VERSIONS 2 -6
ø12 mm
