FUHR multitronic 881 - Routing for Control Unit Casing; Routing for Switching Power Supply Unit

25
WWW.FUHR.DE
multitronic
881/881GL/ServoAccess

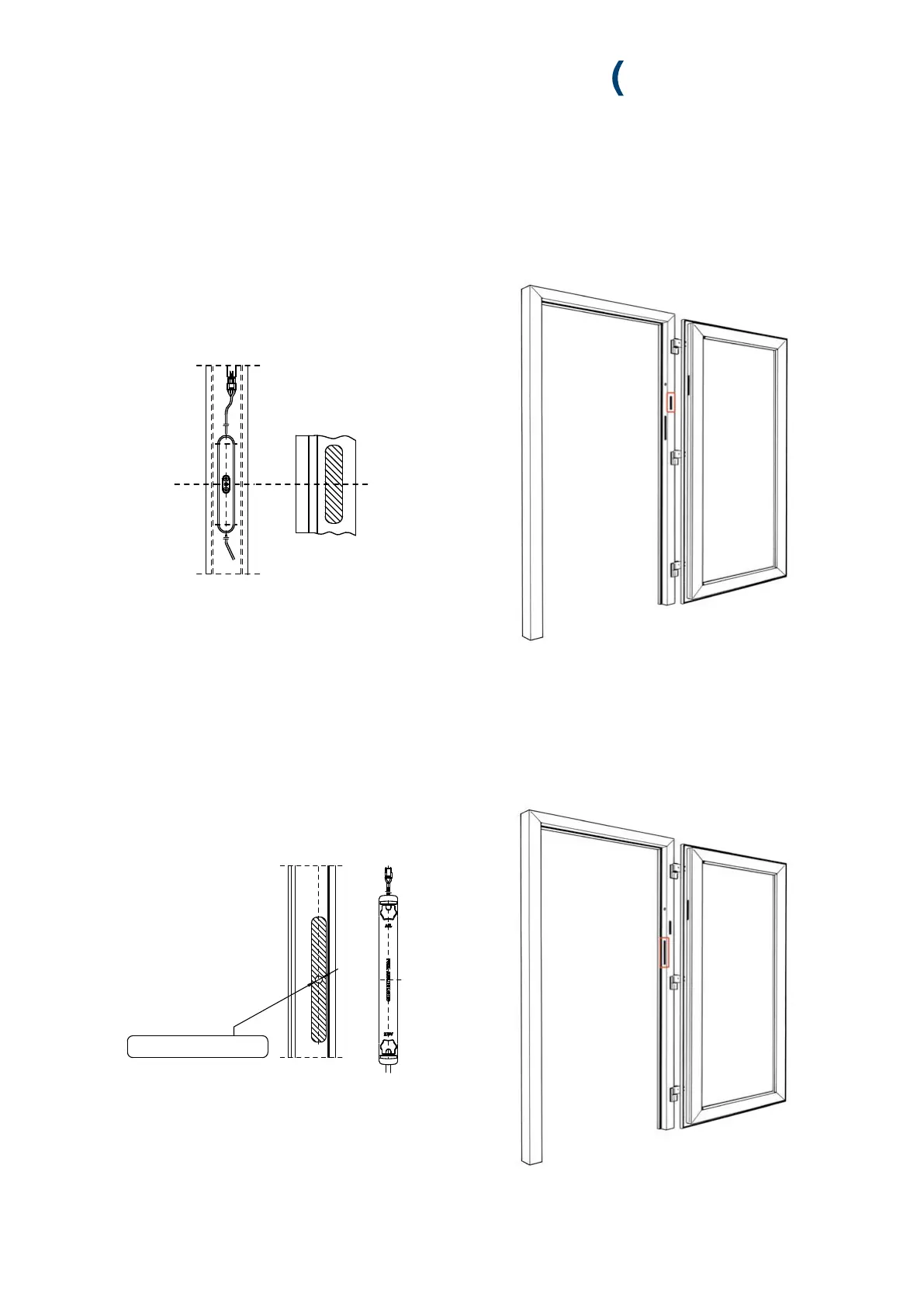

4.1.6 ROUTING FOR THE SWITCHING POWER SUPPLY UNIT IN THE DOOR FRAME
ON THE INSTALLATION VERSIONS 3 AND 4
Exemplary routing. Please ask for the parti-
cular profile-related routing dimensions.
4.1.5 ROUTING FOR THE CONTROL UNIT CASING IN THE DOOR FRAME
ON THE INSTALLATION VERSION 4
Exemplary routing. Please ask
for the particular profile-related
routing dimensions.
Routing on the hinge side of the door frame face inside of
the building
Routing on the hinge side of the frame profile
Deburr the through-hole & insert
the rubber protective nozzle!
Ø 10 mm
