Product Overview
2

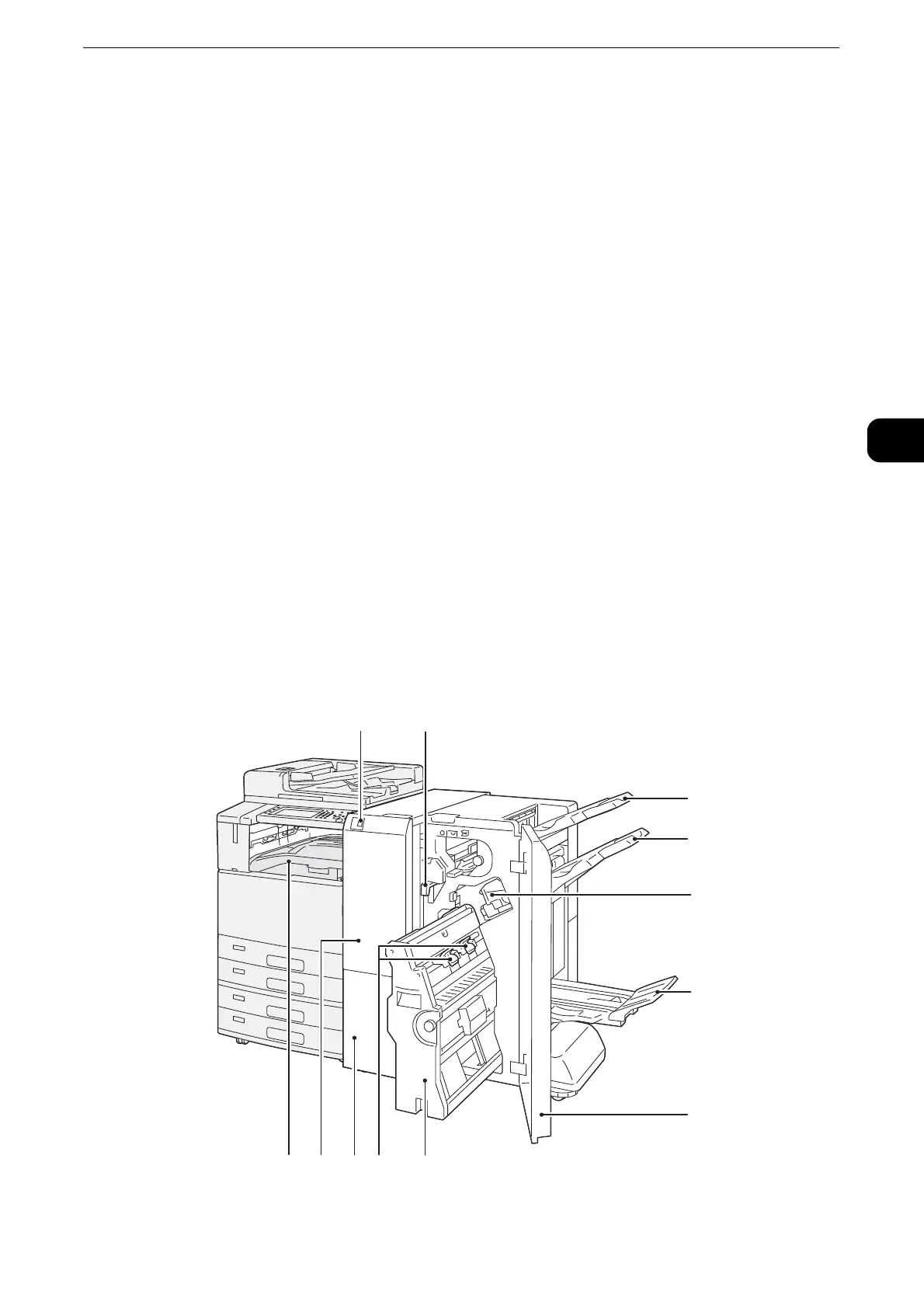

10 Finisher B1
Staples copies or prints.
11 Front transport cover
Open this cover when discarding punch scraps.
z
Open the front cover of the machine before opening the cover.
12 Hole-punch waste container
Collects scraps from the puncher.
13 US 2/3 Hole Punch Kit (optional)
2/4 Hole Punch Kit (optional)
Hole-punches outputs.
z
The distance between the two holes made with the US 2/3 Hole Punch Kit (US standard) is 70 mm, which is
different from the 80 mm distance made with the 2/4 Hole Punch Kit.
14 Center tray (Top cover of the finisher transport)
Copies and prints are delivered here when they are unable to be delivered to the finisher
tray. Pull the cover upward when clearing paper jams.
z
Remove outputs delivered to the center tray constantly.
z
The Finisher B1 is optional. The common features of the Finisher A2, Finisher B1, and C3 Finisher described in
this guide are referred to as the "finisher".
z
The power cord connected to the Finisher B1 is a connecting cord dedicated to the machine. Do not connect
this cord to any other devices than the machine.
îš„ C3 Finisher (optional), C3 Finisher with Booklet Maker (optional), and Folder Unit CD1
(optional)
1 Tri-fold output tray button (When the optional Folder Unit CD1 is installed)
Press this button to open the tri-fold output tray.
