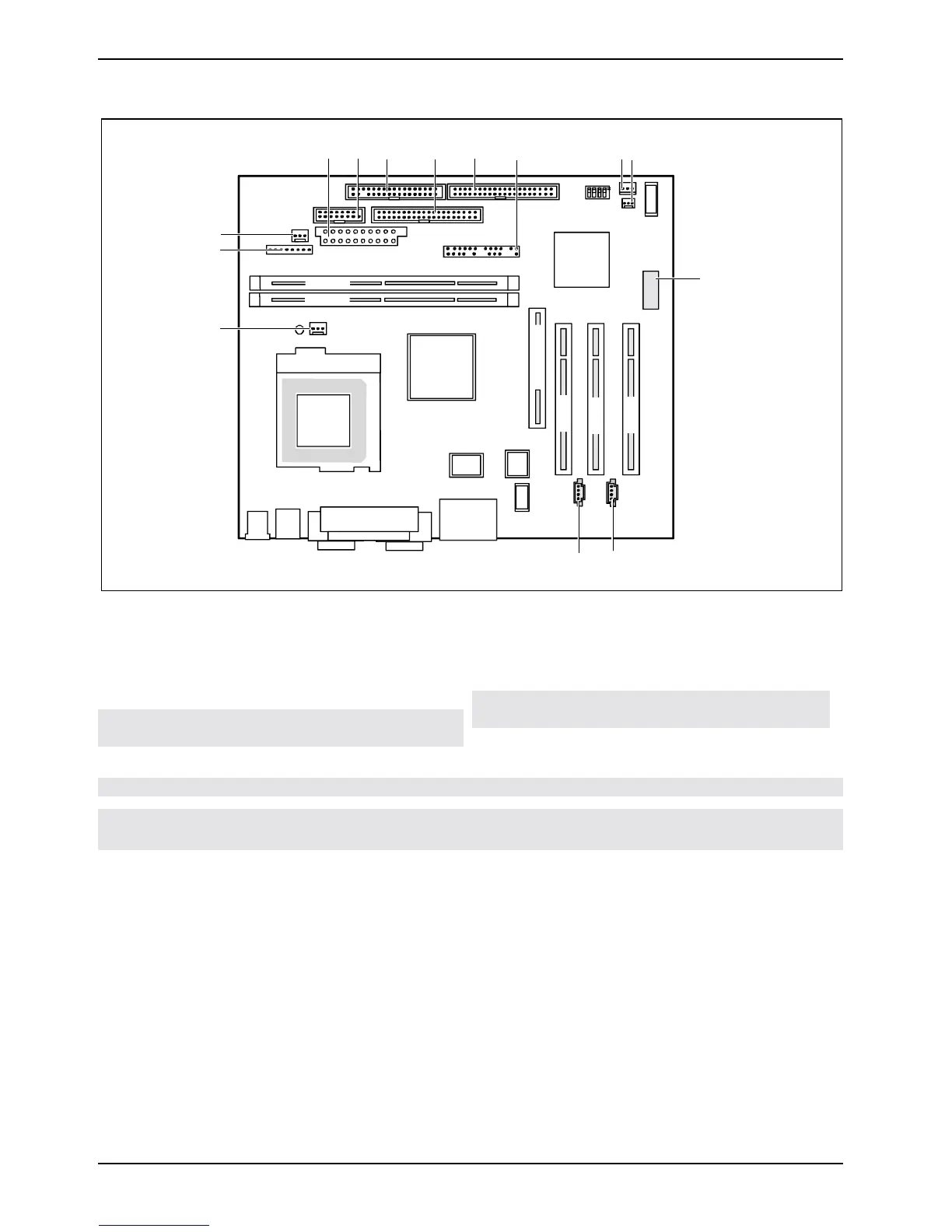

Mechanics
4 - English A26361-D1215-Z181-1-7619
DIMM 2
PCI 2
PCI 3
PCI 1
AGP / GPA
DIMM 1
21
3
4
56
1011
12
7
8
13
14
9
1 = Power supply
2 = Serial port 2
3 = Floppy disk drive
4 = IDE drives 3 and 4 (secondary)
5 = IDE drives 1 and 2 (primary)
6 = Connector for control panel
7 = Fan 2 (e. g. for the system fan -
supervised) *
8 = Wake On LAN
9 = USB ports C / D
10 = CD audio input
11 = AUX audio input
12 = Fan 1 (e. g. for the processor)
13 = Power supply monitoring
14 = Cover monitoring
The components and connectors marked are not necessarily present on the system board.
*)
only for speed controllable fans (3 pin connector), for 2 pin processor fans use Fan2 connector
only.
