Fujitsu Siemens Computers D1215 User Manual

Mechanics
A26361-D1215-Z181-1-7619 English - 9

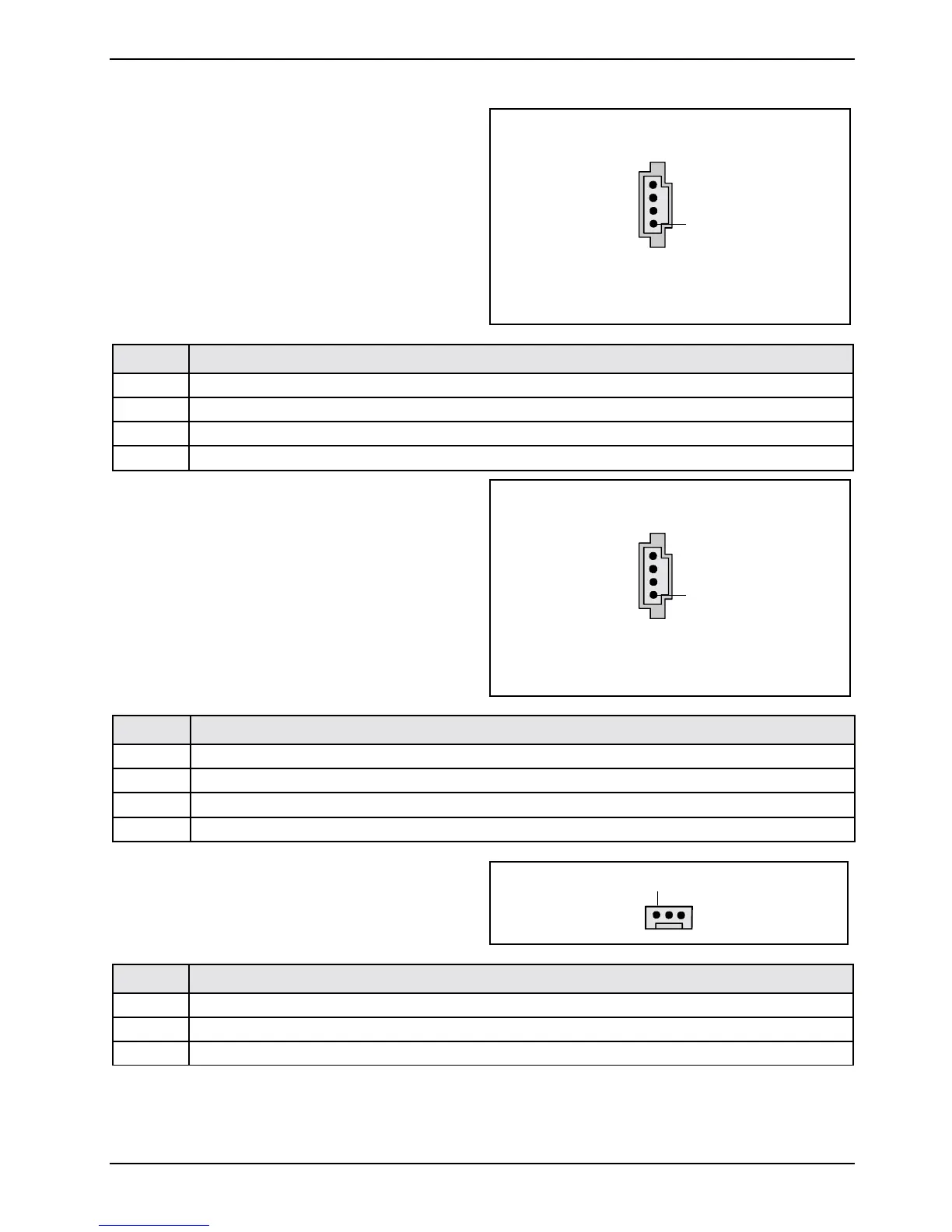

CD-ROM audio connector (internal)
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
Auxiliary (MPEG, TV) audio
connector (internal)
1
Pin Signal
1 Left AUX audio input
2 Analog GND
3 Analog GND
4 Right AUX audio input
Fan 1 connector
1
Pin Signal
1GND
2 Controlled fan voltage (0 V / 6...12 V)
3 Fan sense
