Mechanics
6 - English A26361-D1215-Z181-1-7619

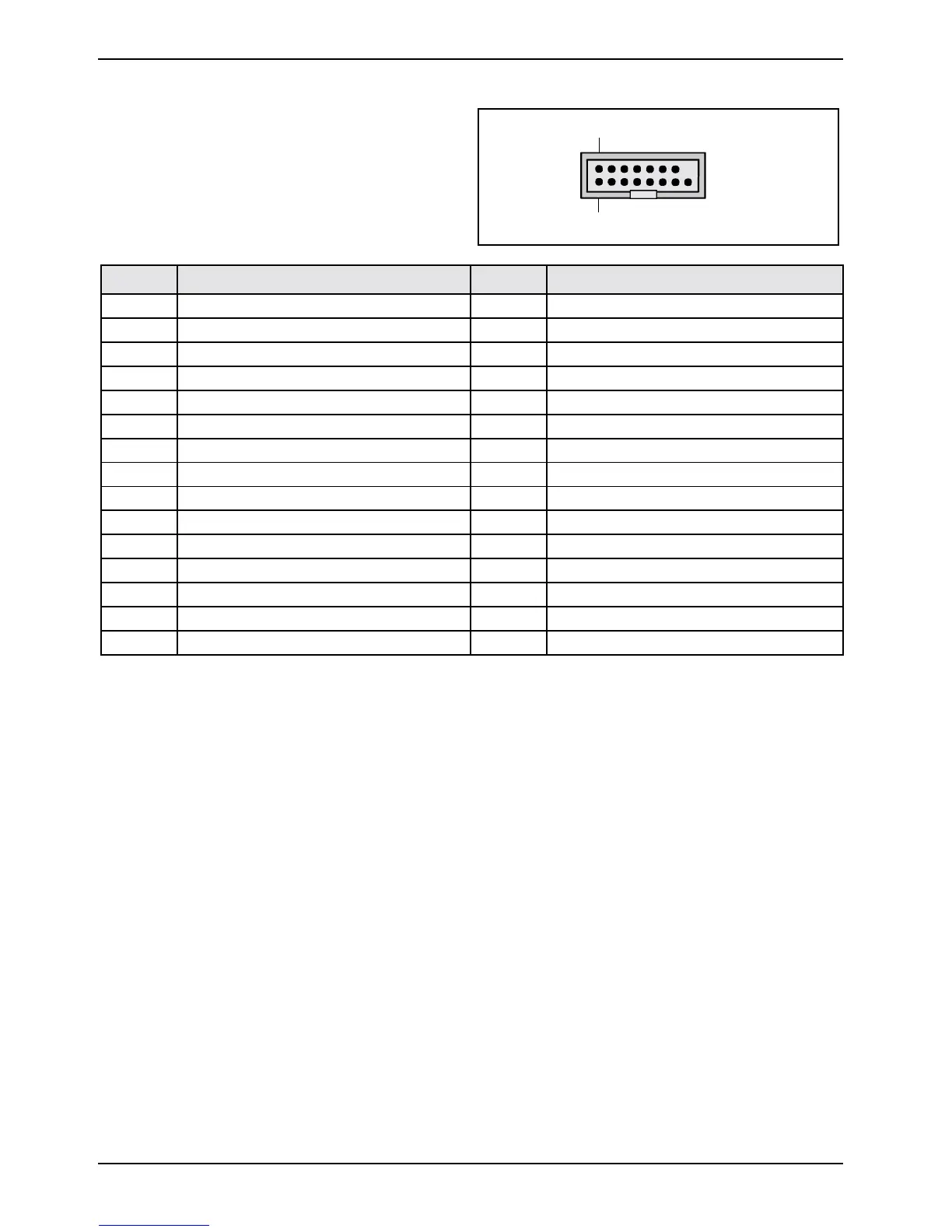

Serial port 2 (COM 2)
external via optional cable
1
2
Pin Signal Pin Signal
1 Sleep LED (Cathode) 2 Speaker
3 Sleep LED (Anode) 4 Key
5Key6GND
7 PowerON_LED (Anode) 8
1)
VCC or GND
9 PowerON_LED (Anode) 10 Key pin
11 PowerON_LED (Cathode) 12 Key pin
13 Message LED (Anode) 14 Key
15 Message LED (Cathode) 16 Not connected
17 Key 18 SCSI LED input (low asserted)
19 HD_LED (Anode) 20 SCSI LED input (low asserted)
21 HD_LED (Cathode) 22 Not connected
23 GND 24 Key
25 Power button (low asserted) 26 GND
27
2)
Sleep button (low asserted) 28 GND
29 Reset button (low asserted) 30 GND
1) Pin 8 is connected to VCC if audio is not onboard.
Pin 8 is connected to GND if audio is onboard.
2) The sleep button (optional) functions only for operating systems with APM (not with ACPI).
