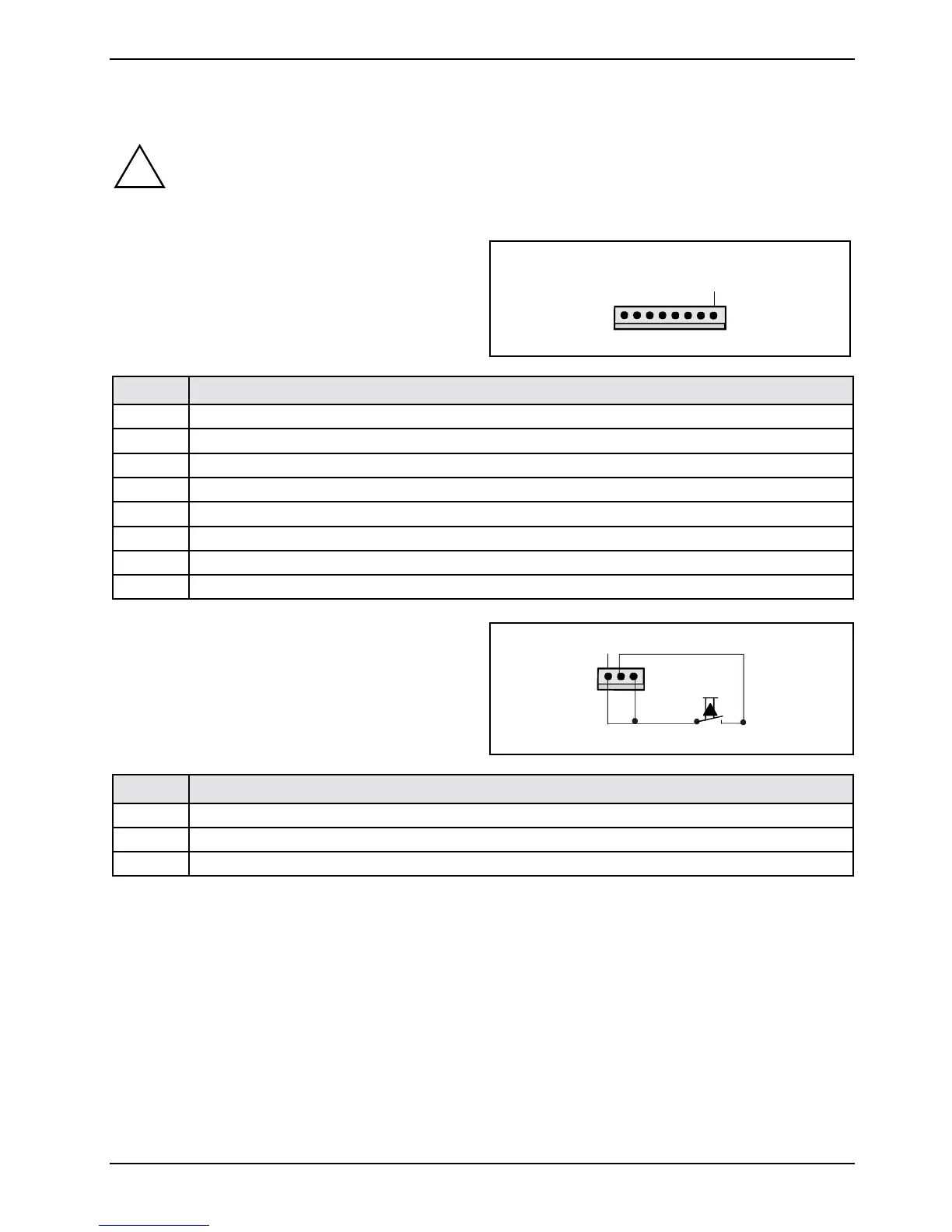

Connectors
!
Some of the following connectors are optional!
Power supply monitoring
1
Pin Signal
1 Monitor on
2 PS FAN control (low asserted)
3 PS FAN full on (low asserted)
4 PS FAN pulse
5SMB CLK
6SMB DATA
7 VCC EEPROM
8GND
Intrusion connector for case open
detect for optional push-button
(opener)
1
Pin Signal
1GND
2 Case open (low asserted)
3 Intrusion switch present (low asserted)
