Fujitsu Siemens Computers D1215 - Fan 2 Connector; Wake on LAN (WOL) Connector; USB Port C; D 1 - Dual Channel

Mechanics
8 - English A26361-D1215-Z181-1-7619

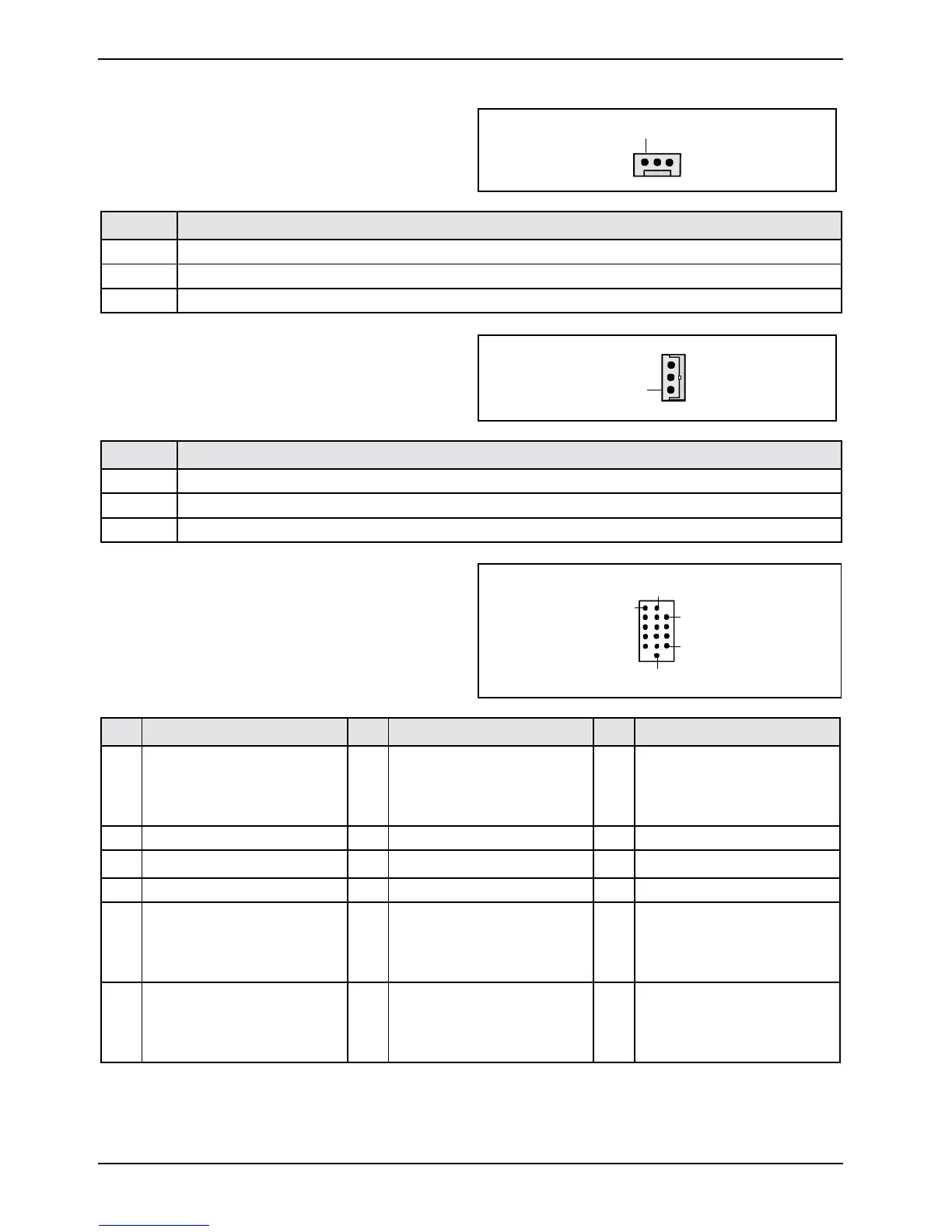

Fan 2 connector
(system fan - supervised)
1
Pin Signal
1GND
2 +12 V
3 Fan sense
Wake On LAN (WOL) connector
1
Pin Signal
1 VCC Auxiliary
2GND
3 Wake pulse (high asserted)
USB port C / D 1 - Dual channel
(internal or external via special wire)
12
1
7
14
17
Pin Signal Pin Signal Pin Signal
1 VCC Dual / VCC (fused
max. 500mA and power
supervision with over
current detection)
7 Shield GND 13 Key
2 Data negative (port C) 8 GND 14 GND
3
Data positive (port C)
9 Data positive (port D) 15 Data positive (port C)
4 GND 10 Data negative (port D) 16 Data negative (port C)
5 Shield GND 11 VCC Dual / VCC (fused
max. 500mA and power
supervision with over
current detection)
17 VCC Dual (fused max.
500mA and power
supervision with over
current detection)
6 Key 12 Power supply on (CCR
on)
(max. 1 second low
pulse)
18 Key
