Board Parts, Jumpers and Connectors
10 A26361-D1818-Z120-1-7619, edition 1

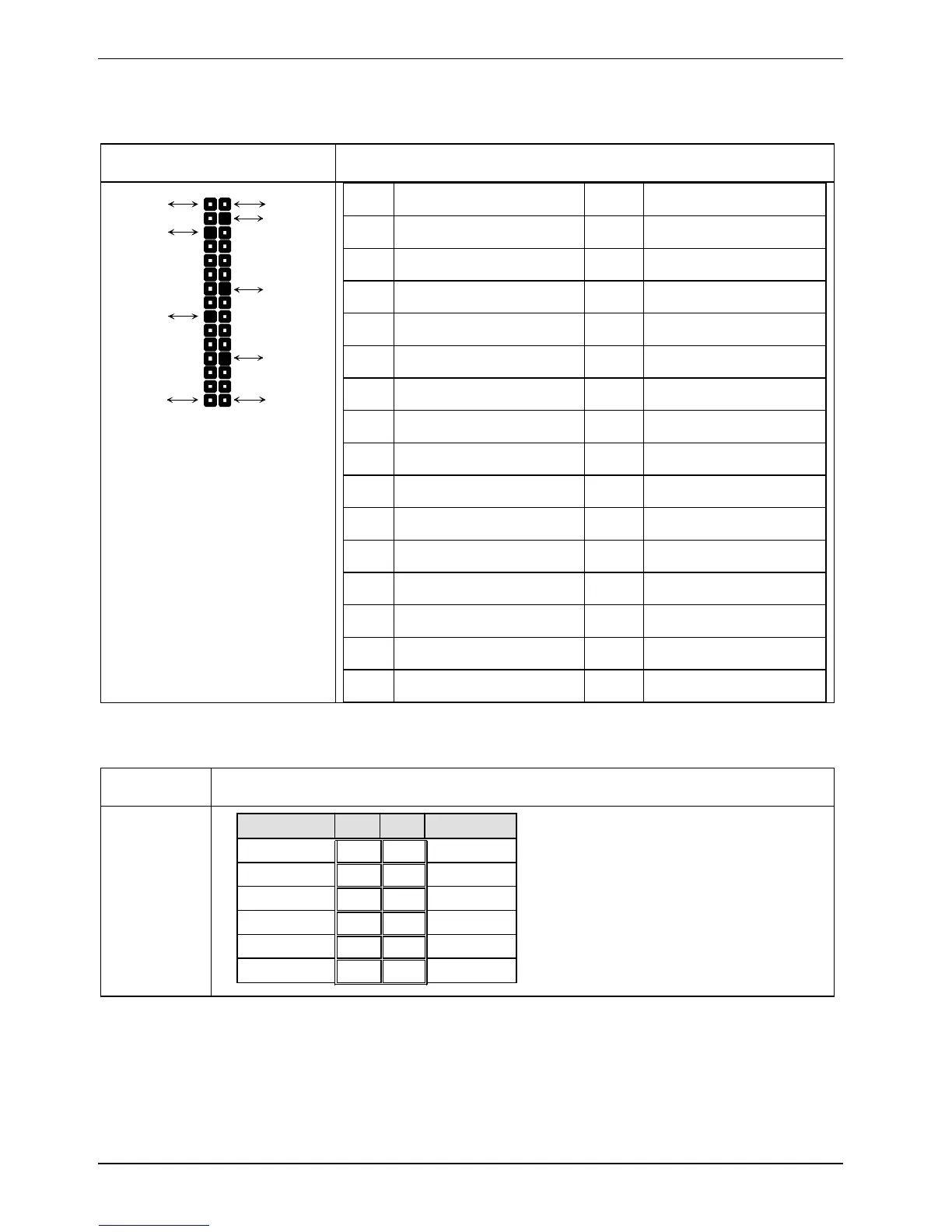

Front Panel Header (S)
F_Panel_FS Front Panel Header
Pin Signal Pin Signal
1 GND 2 Speaker_OUT_L
3 SLP_LED_A 4 Coded
5 Coded
6
GND
7 PWR_LED_A
8
Speaker_OUT_H
9 PWR_LED_A 10 n.c.
11 GND 12 n.c.
13 + 3.3V 14 Coded
15 MSG_LED_C 16 n.c.
17 Coded 18 SCSI_LED_Input
19 + 3.3.V 20 SCSI_LED_Input
21 HD_LED_C 22 n.c.
23 GND 24 Coded
25 PWR_Button_L 26 GND
27 SLP_Button_L 28 GND
29 Reset_L 30 GND
USB (with Chipcardreader support) (M)
F_USB2 USB D (with Chipcardreader support)
Signal Pin Pin Signal
Key
1 2
CCR on
n.c. 3 4
VCC
n. c.
5 6
Data +
n. c.
7 8
Data -
n. c.
9 10
GND
Key
11 12
n. c.
Pin 1 Pin 2
coded
Pin 29
coded
Pin 30
coded
coded
coded
