Add-on modules / Upgrading
20 A26361-D1818-Z120-1-7619, edition 1

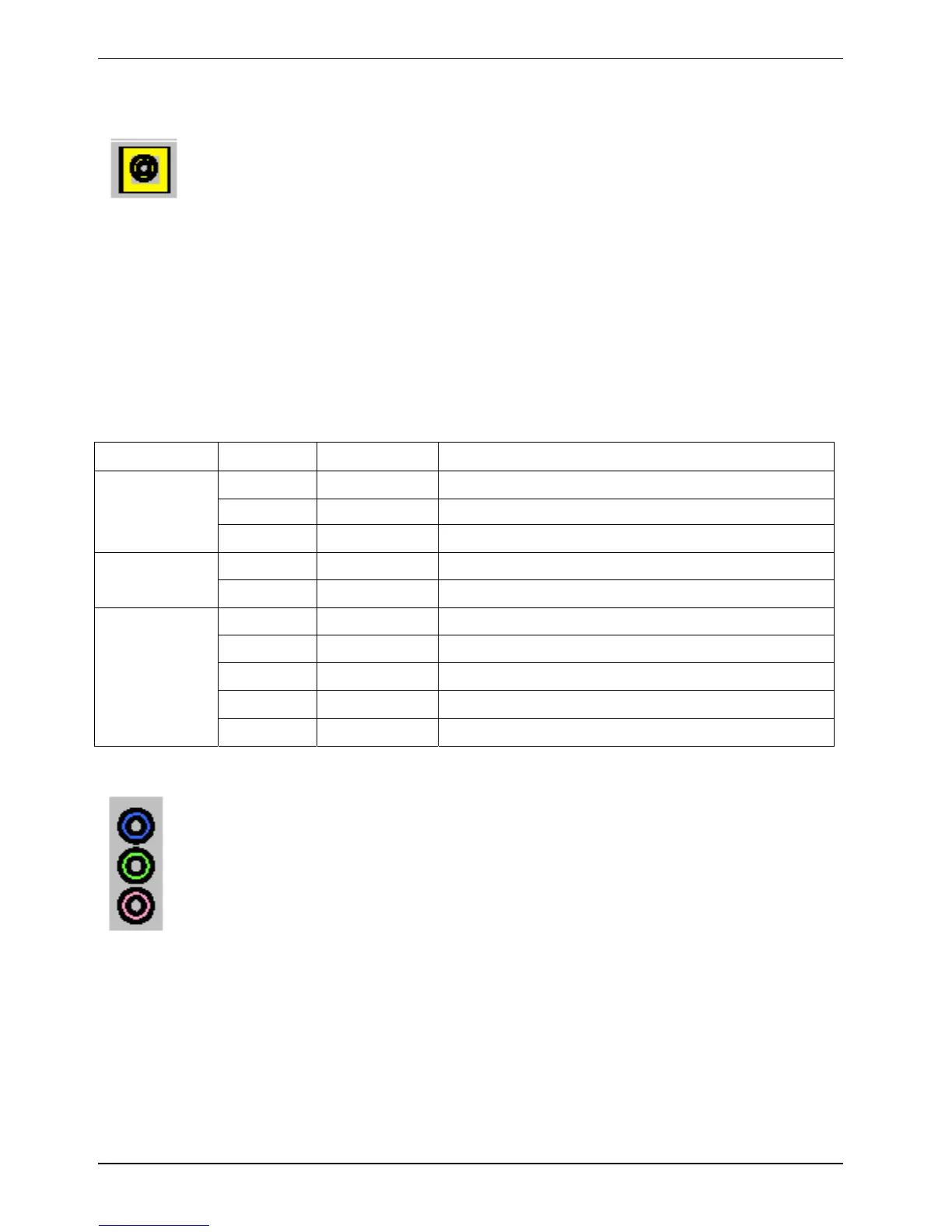

4 / 5 SPDIF OUT / 1394 Connectors
Digital SPDIF COAX
Digital interface Supports 5.1 Digital Surround Sound
6 / 7 USB / LAN Ports
Before you connect your device(s) into USB connector(s), please make sure your device(s) such as
USB keyboard, mouse, scanner, zip, speaker.etc. have a standard USB interface. Also make sure
your OS supports USB controller. If your OS does not support USB controller, please contact OS
vendor for possible patch or driver updated. For more information please contact your OS or
device(s) vendors.
LAN ports provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/
100/1000Mbps.
LAN LED Description
Name Color Condition Description
LAN Green ON LAN Link / no Access
Link/Activity Green BLINK LAN Access
-
OFF Idle
Green ON 100 Mbps connection
10/1 00 LAN
Speed
- OFF 10 Mbps connection
Yellow ON 1 Gbps connection
Yellow BLINK Port identification with 1 Gbps connection
Green ON 100 Mbps connection
Green BLINK Port identification with 10 or 100 Mbps connection
GbE LAN
Speed
-
OFF 10 Mbps connection
8 Audio Connectors
Analog Connectors
Line in
Line out
Microphone In
To Next Page
