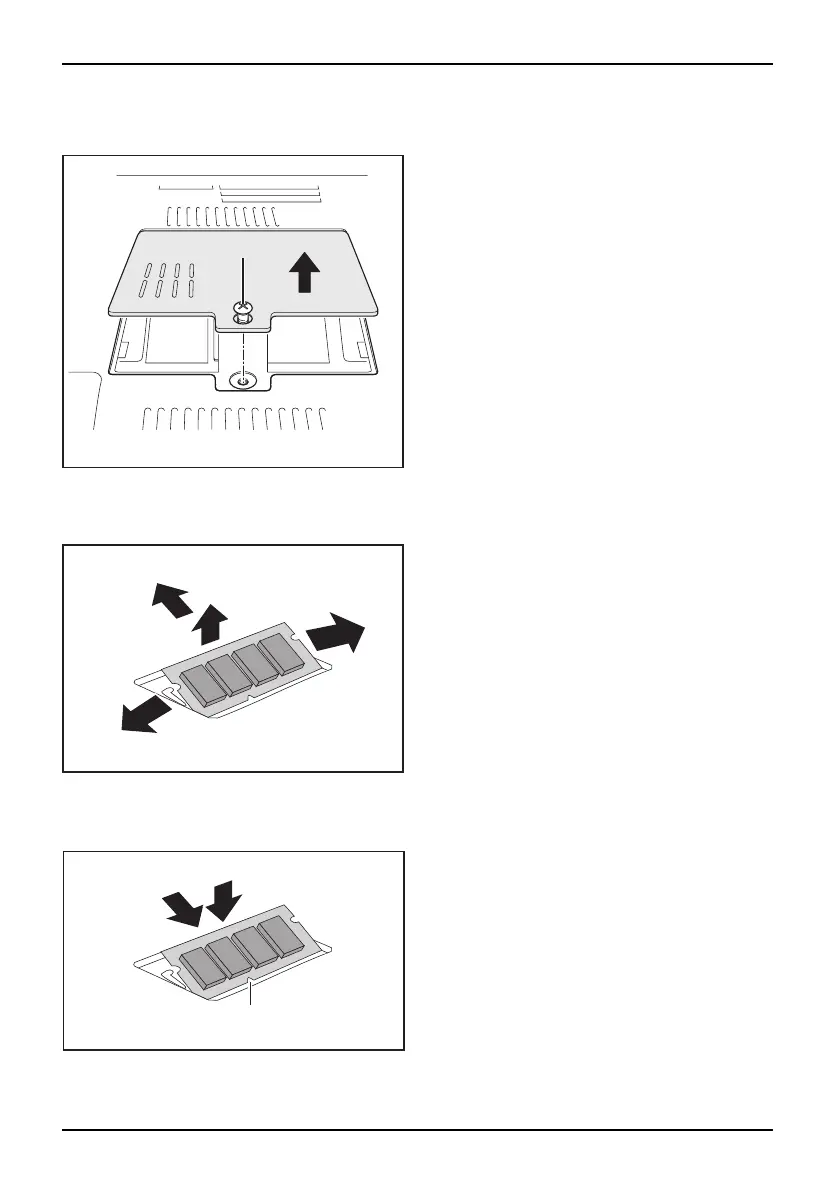

Fujitsu Siemens Computers LIFEBOOK E8310 - Removing the Cover; Removing Memory Modules; Installing a Memory Module

Removing and installing components
during servicing
Removing the cover
2
1
► Remove the screws (1).
► Pull the cover off the notebook (2).
Removing memory modules
3
2
1
1
► Carefully push the
two mounting
clips outwards (1
).
MemoryexpansionMemorymodule

The memory module snaps upwa rds (2).
► Pull the memory modul
eoutofitsslot
in the direction of th
e arrow (3).
Installing a memory m odule
2
a
1
► Insert the memory module with the contacts
and the recess (a) facing the slot (1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
