7 Install the handle.
・ Move the handle to the other side, and then secure the handle, the lock bracket, and the
rotation control member using the M6 hexagon bolt with flange and tapping screws.
Install the rotation control member with the gear rotated 90 degrees from its
original orientation. Be careful not to install it in the wrong orientation.
8 Install the door-side hinges and the handle hole cover.
・ Install the door-side hinges with the M5 hexagon socket bolts.
・ Install the handle hole cover with the M4 hexagon nuts with flange.
Push the door-side hinge straight into the metal plate of the door.

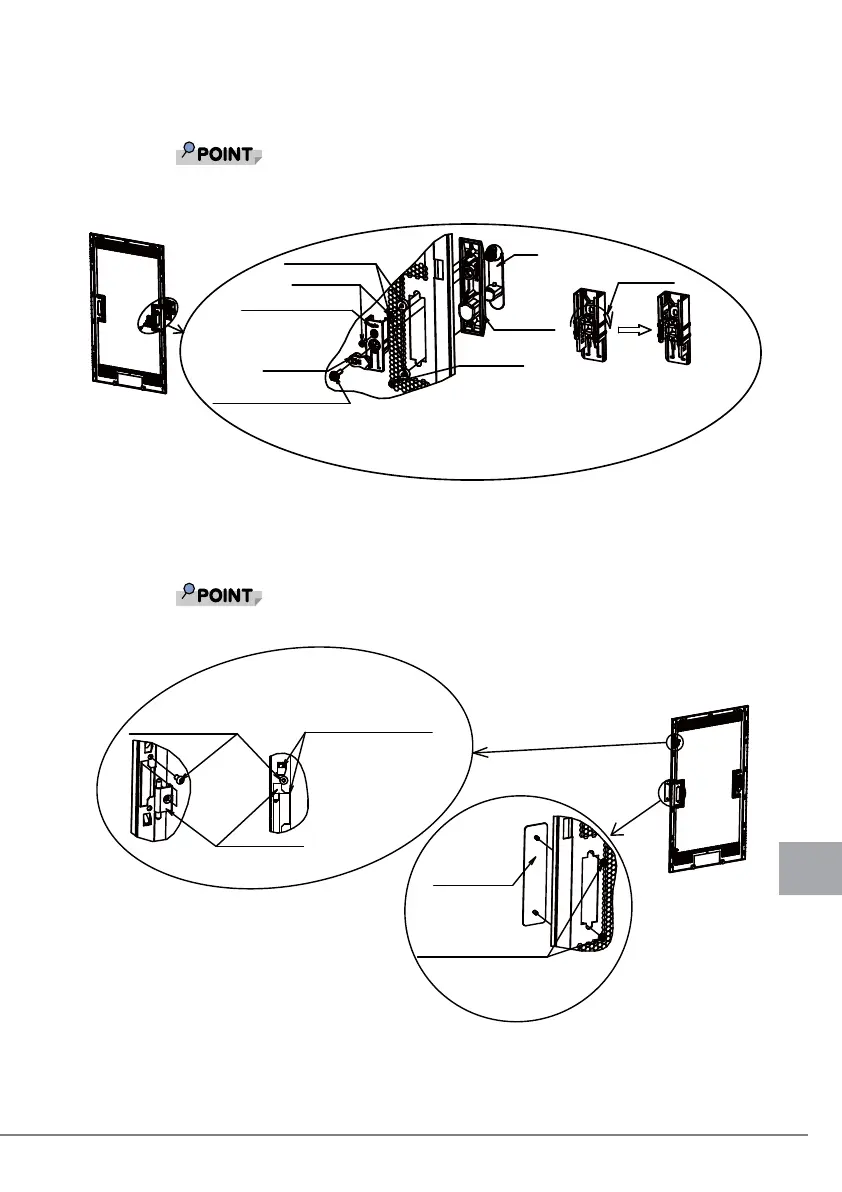

Changing gear orientation of rotation
control member
ࠬࠤ࡞
Rotate by
90 degrees
ࠬࠤ࡞
Resins for
fixing handle in position
Tapping screws
Rotation control member
Lock bracket
M6 hexagon bolt with flange
Grip
Handle body
Tapping screw
Door-side hinge
M5 hexagon socket bolt
Handle hole cover
M4 hexagon nuts with flange
ࠬࠤ࡞
Firmly push top and side of
door hinge straight into metal
plate of door
