4 Confirm that the heights of the left and right square holes into which the
hooks were inserted are the same.
Since the table is only provisionally mounted, refrain from placing any load on it.
4.5.3 Mounting the table
1 Secure the table to the M6 cage nuts that were attached in step 2 according
to "4.5.1 Inserting cage nuts", by applying M6 screws.
The simple retainer mechanism is engaged when the slide rails are in normally
stored state (horizontal state). However, if the table rear is positioned facing
downward, the simple retainer mechanism is released and the slide rails may fly
out. Be careful.
Work on mounting the table in such a way that the table rear does not face
downward.
Start work after confirming that front brackets L and R are held by the table with
the simple retainer mechanism of the slide rails and do not move.
The slide rails and front brackets L and R are assembled with the table before
shipment.
Start work after confirming that rear brackets L and R will not fall down when the
table is placed on them.
When mounting the table provisionally, ensure that the table is securely mounted
with the front hook fully inserted in the relevant square hole. Also, ensure that the
rear part of the table is securely mounted on rear brackets L and R.
Do not stop supporting the table with your hand until the table is securely fixed in
position.

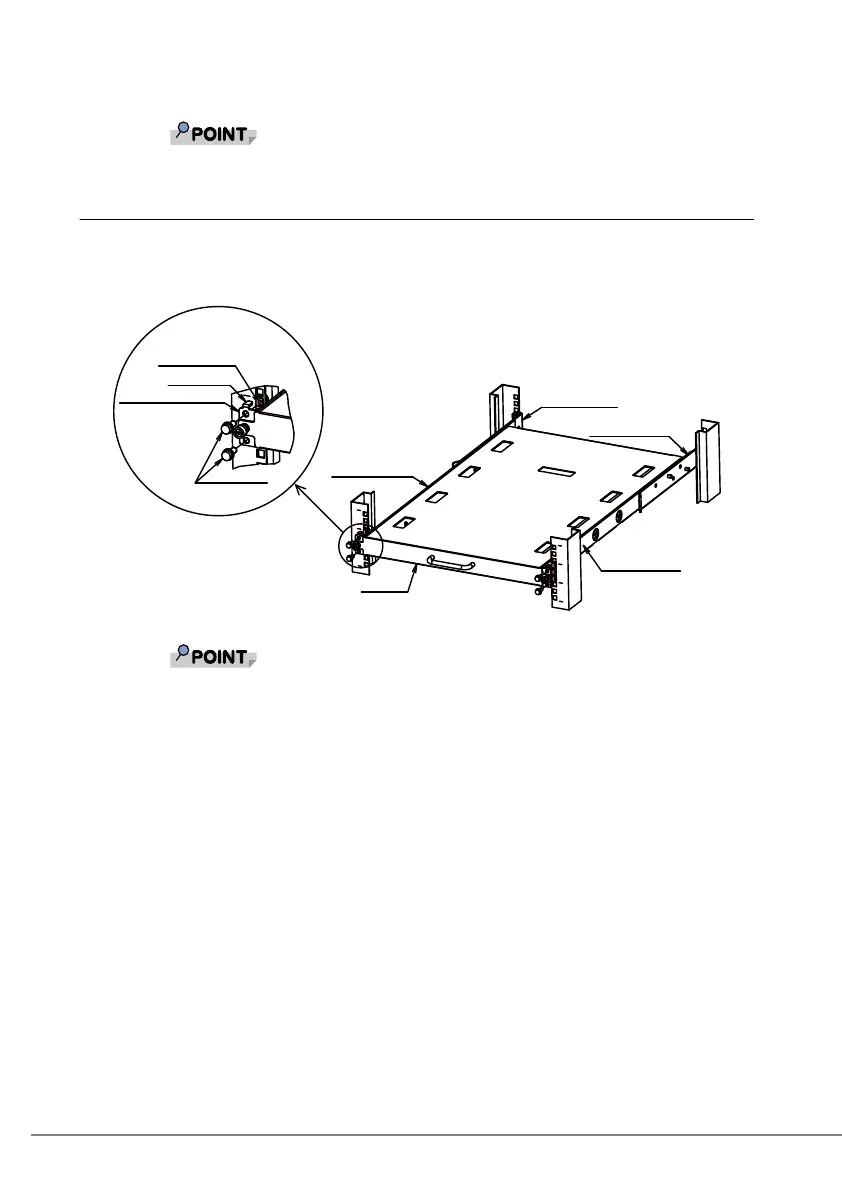

Table
Rear bracket L
Rear bracket R
Front bracket R
Front bracket L
M6 screws
M6 cage nut
Hook
Front bracket L
