5-3. DRY OPERATION
5-3-1 INDOOR UNIT CONTROL
The compressor rotation frequency shall change according to set temperature and room
temperature variation which the room temperature sensor of the indoor unit has detected
as shown in the Fig 3.
( Table 3 : Compressor frequency )
05-03
Operating frequency
[ AB*A30LBTL ]
51Hz
Room
temperature
Room
temperature
Compressor ON
Ts+1.5 °C
Ts+0.5 °C
Compressor OFF

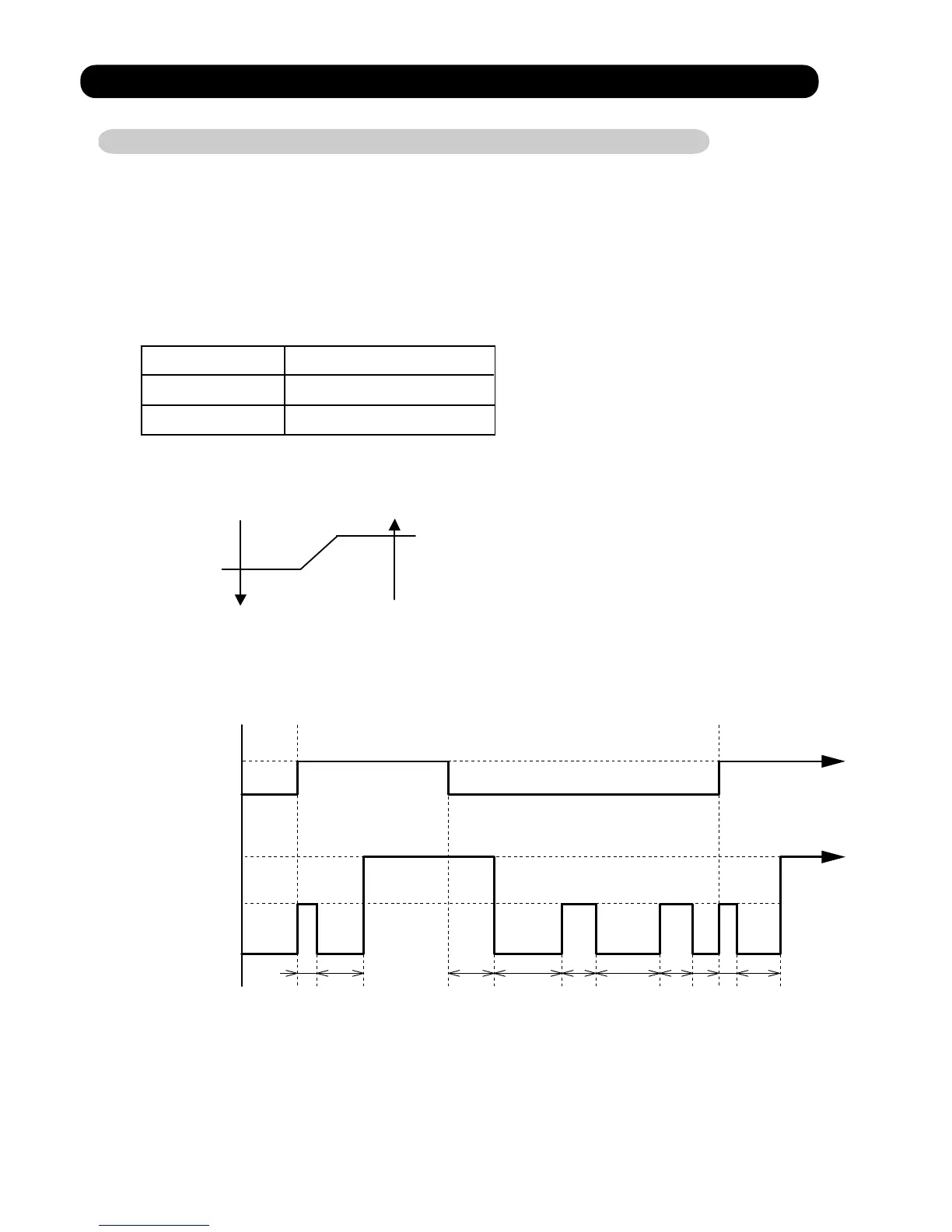

( Fig.3 : Compressor Control based on Room Temperature )
Ts : Setting temperature
Compressor
ON
OFF
Indoor fan
Dry air flow
S-Lo
OFF
( Fig.4 : Indoor Fan Control )
10 30 60 180 60 180 60 10 30
(sec)
[ AB*A36LBTL ]
X zone
Y zone
Temperature zone
0Hz
X zone
Y zone
[ AB*A30/36LBT : Dry air flow 650rpm, S-Lo 250rpm ]
To Next Page
