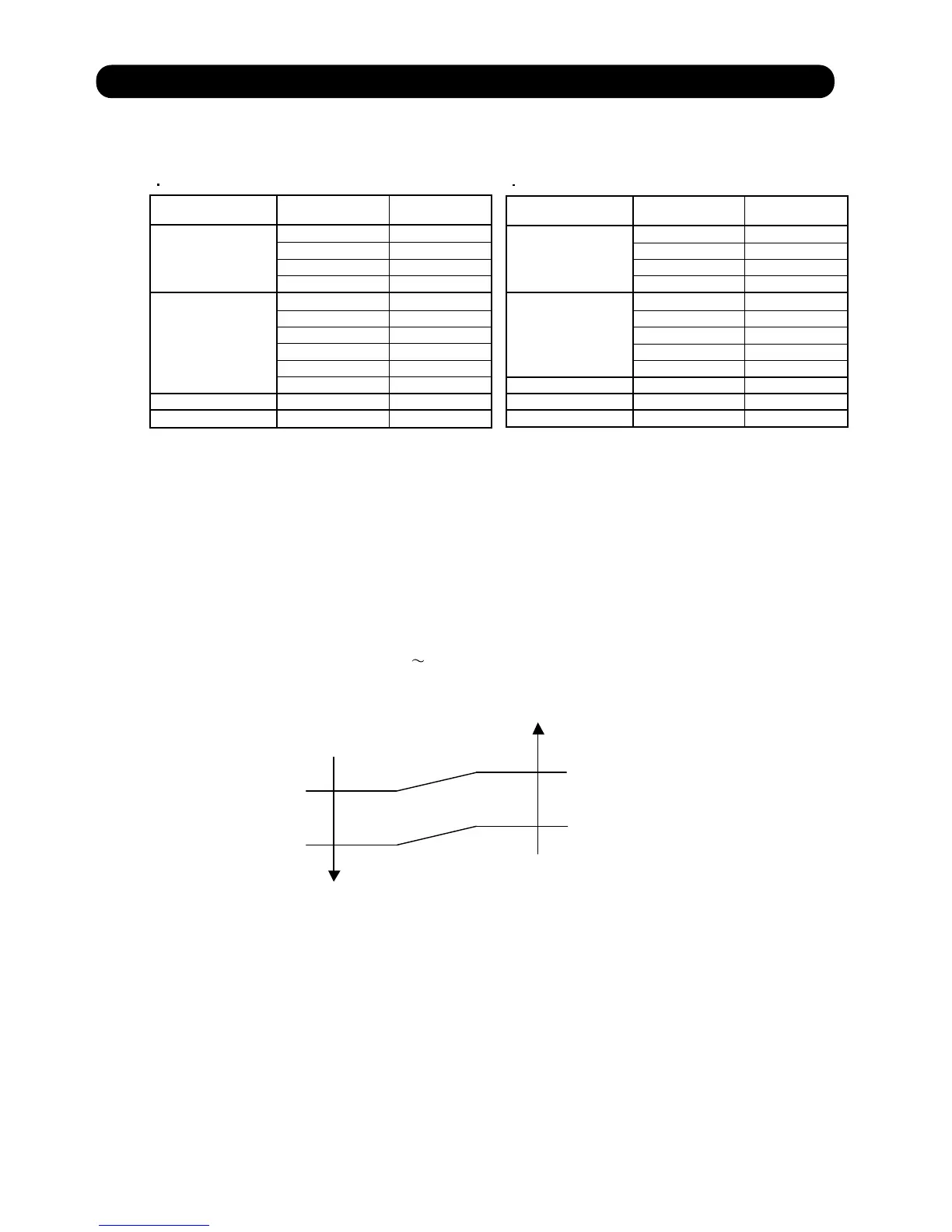

5-5. INDOOR FAN CONTROL
1. Fan speed
( Table 5 : Indoor Fan Speed )
2. FAN OPERATION
The airflow can be switched in 5 steps such as AUTO, QU, LOW, MED, HIGH, while the indoor
fan only runs.
When [AUTO] is selected, the indoor fan motor runs continuously [MED] mode.
AB*A30LBT
Operation mode Air flow mode Speed (rpm)
Hi 1000
910
750
650
Me
Lo
Cooling
Qu
Hi 1000
1000
910
750
Me+
Me
Heating
Lo
AB*A36LBT
Operation mode Air flow mode Speed (rpm)
Hi 1100
910
750
650
Me
Lo
Cooling
Qu
Hi 1100
1100
910
750
Me+
Me
Heating
Lo
650
Qu
650
Qu
Auto
500
Dry
S-Lo 250
Monitoring
Auto
500
Dry
S-Lo 250
Monitoring
3. COOLING OPERATION
Switch the airflow [AUTO], and the indoor fan motor will run according to a room temperature,
as shown in Figure 5.
On the other hand, if switched in [HIGH] [QU], the indoor motor will run at a constant airflow of [COOL]
operation modes QU, LOW, MED, HIGH,as shown in Table 6.
( Fig.6 : Airflow change - over ( Cooling : AUTO ) )
When the room
temperature rises
When the room
temperature drops
TR : Room temperature
Ts : Setting temperature
TR-Ts > 2 °C
=
1 °C > TR-Ts
2 °C > TR-Ts > 1 °C
=
TR-Ts > 2.5 °C
=
1.5 °C > TR-Ts
2.5 °C > TR-Ts > 1.5 °C
=
HIGH mode
MED mode
LOW mode
650
Cool Air Prevention Cool Air Prevention
650
05-05
