Installation

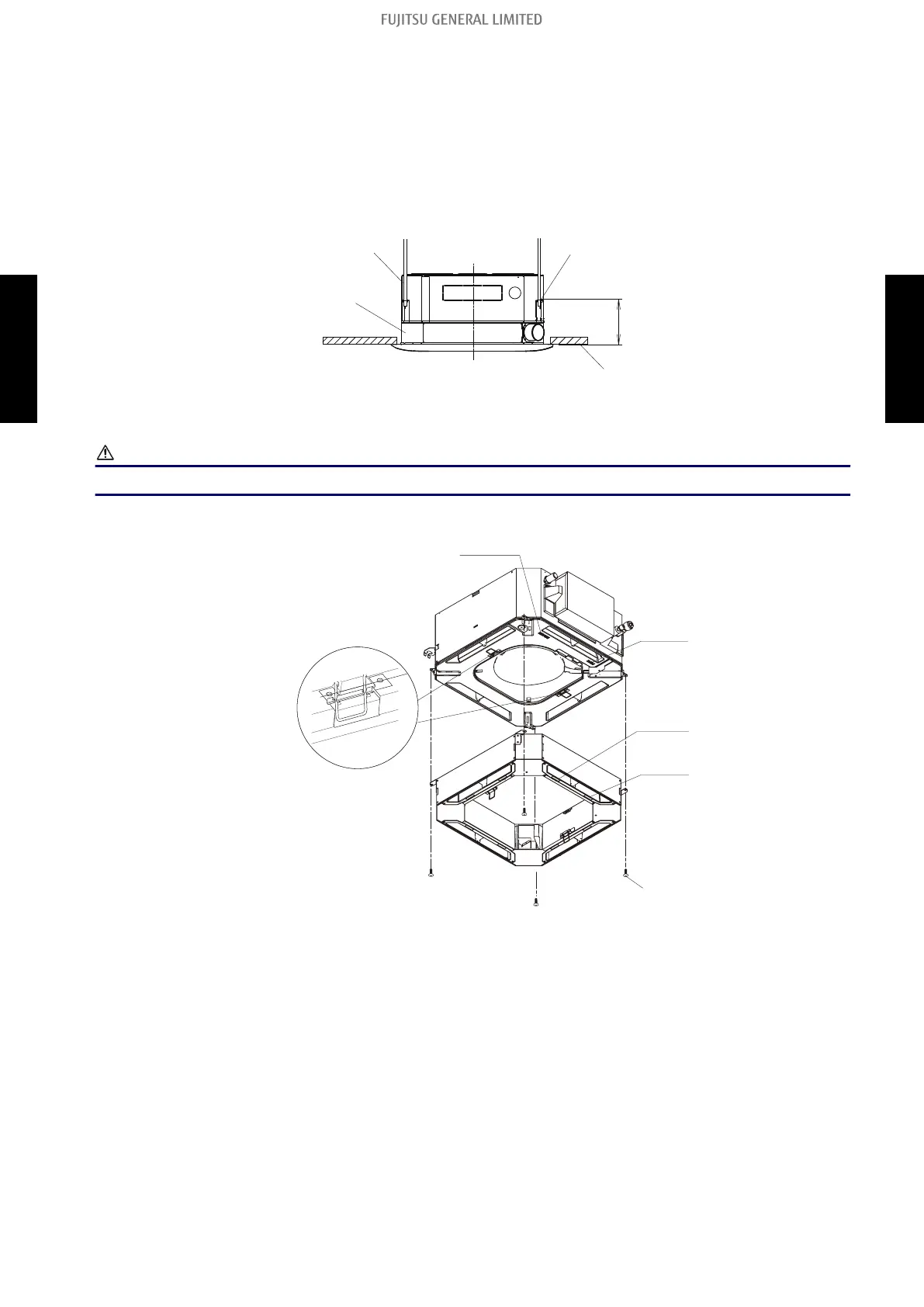

Mounting of indoor unit
• For mounting, refer to the installation manual provided with indoor unit.
• When installing this product to existing indoor units, adjust the installation height of the indoor
units to height 260 to 265 mm as shown below.
Unit: mm
260 to 265
Metal hanging fastener
Ceiling
Indoor unit
Fresh air intake kit
Installation of Fresh air intake kit
CAUTION
Installing the Fresh air intake kit with wrong direction is a cause of water leakage.
1. Attach the Fresh air intake kit to the main body using the bolts provided as shown below.
Metal fittings
Bolt × 4
DRAIN
PIPE
DRAIN
PIPE
- 318 -
10-4. Fresh air intake kit for compact cassette type (UTZ-VXAA) 10. Optional parts installation
SYSTEM
DESIGN
SYSTEM
DESIGN
