Fujitsu AOU12RLFC

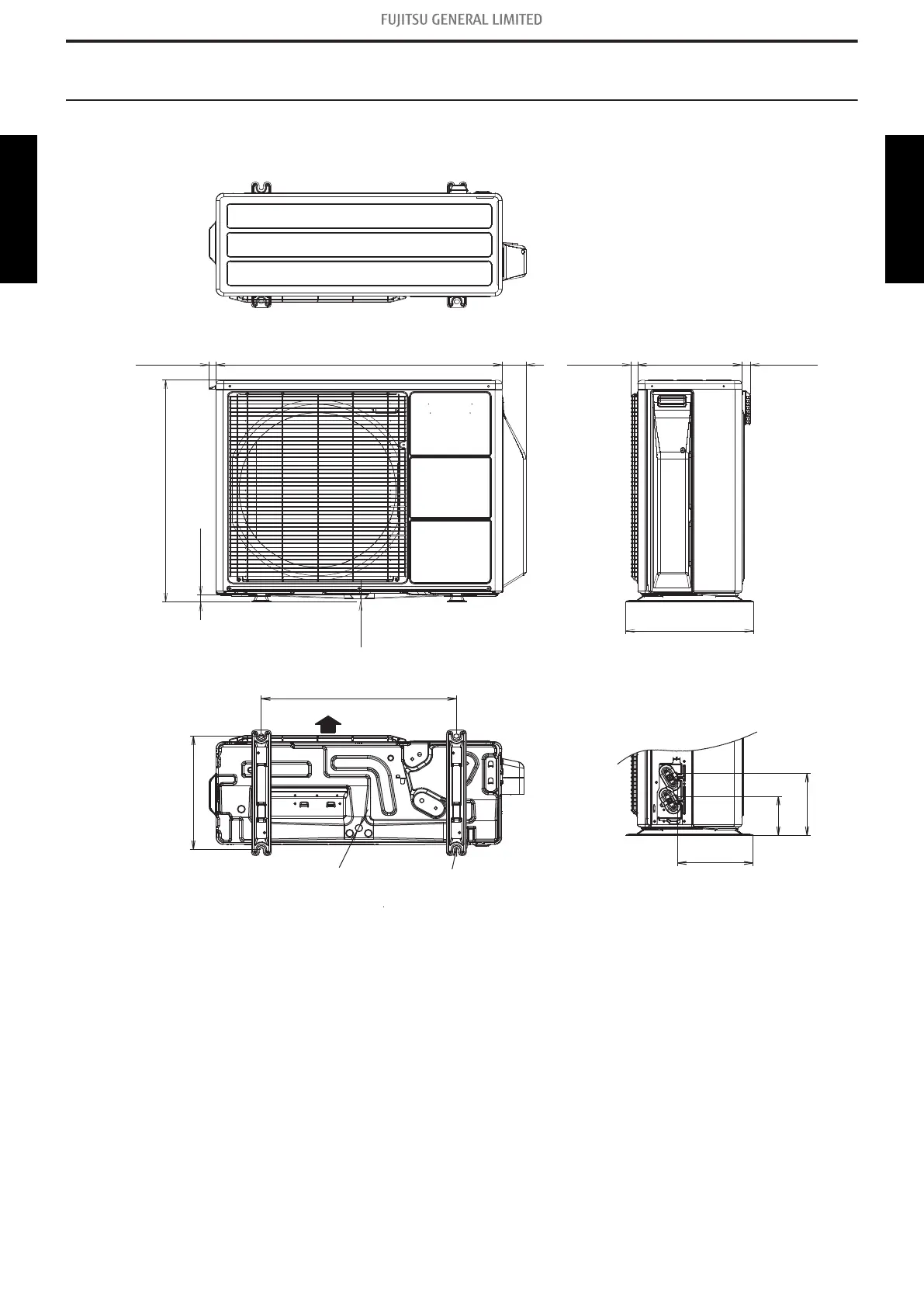

2. Dimensions
2-1. Model: AOU12RLFC
Unit: in (mm)
Bottom view
Front view
Top view
Side view
Airflow
4-5/16
(110)
12-5/8 (320)
3/8 (9)
13/16 (20)
13/16 (20) 31-1/8 (790) 2-9/16 (65) 11/16 (18) 11-7/16 (290)
13-7/8 (352)
7/8 (23)
24-7/16 (620)
21-1/4 (540)
8-1/4 (209)
4-Ø7/16 (11.3) hole
6-7/8 (175)
Drain pipe
mounting place
Ø13/16 (20)
