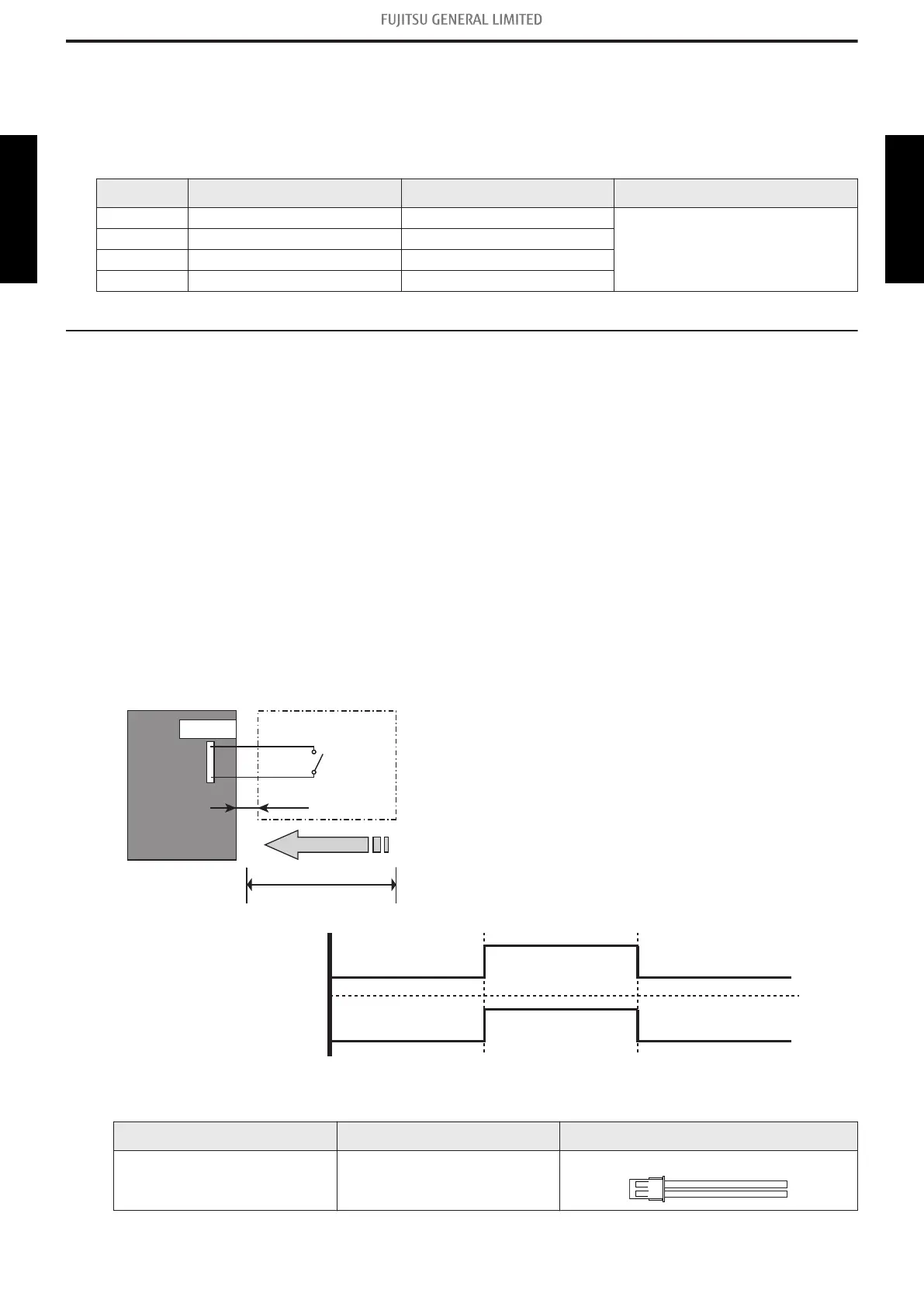

12. External input and output (For AOU42RGLX and
AOU48RGLX)
With using external input and output functions, this product can be operated inter-connectedly with
an external device.
Connector Input Output Remarks
CN10 Low noise mode —
See external input/output settings
for details.
CN11 Peak cut mode —
CN12 — Error status
CN13 — Compressor status
12-1. External input
With using external input function, on/off status of “Low noise mode” and “Peak cut mode” can be
specified by the external signal.
¢
Low noise mode
In following condition, the operating noise of the outdoor unit reduces comparing from the one in nor-
mal operating condition:
The air conditioner is set to the “Low noise mode” when closing the contact input of a commercial
timer or on/off switch to a connector on the control PCB of the outdoor unit.
NOTE: Product performance may drop depending on some conditions such as the outdoor temper-
ature.
• Circuit diagram example
Outdoor unit
control PCB
Connected unit
Example: Switch
Connector
1
2
Signal
Locally purchased
33 ft. (10 m)*
• Contact capacity: DC 24 V or more, 10 mA or more.
• *: Make the distance from the PCB to the connected
unit within 33 ft (10 m).
• Construct a circuit as shown in this figure with using
optional parts mentioned below.
• Input signal: On in “Low noise mode”
• Input signal: Off in normal operation
• To set the level of “Low noise mode”, refer to "Low
noise mode" on page 141.
On
Off
On
Off
Input signal
Low noise mode
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External input wire
- 135 -
