Fujitsu AOU12RLFC

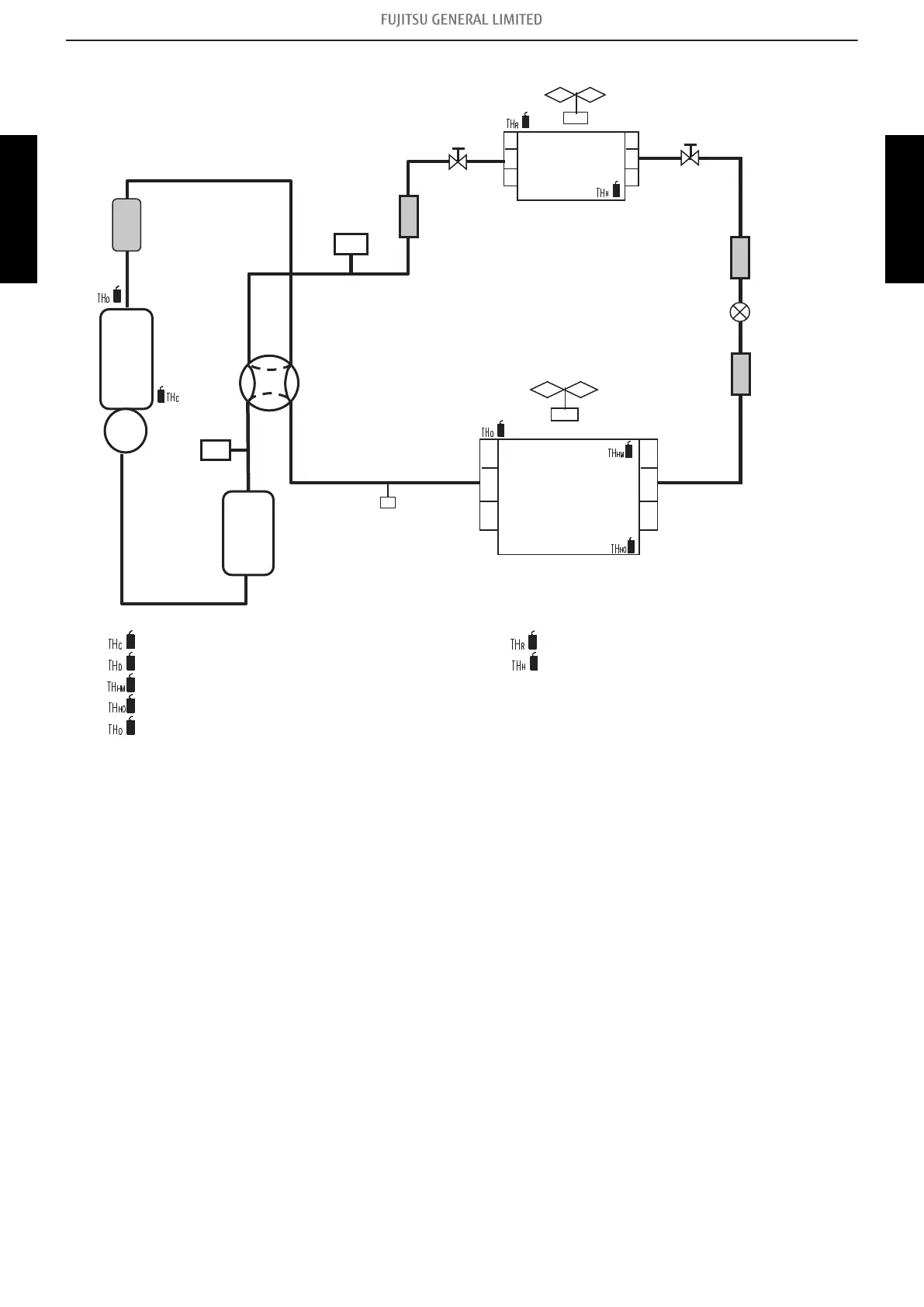

4-3. Models: AOU42RGLX and AOU48RGLX
SUB
ACM
FAN
4WV
CMP
AC
OUTER
HEX
INNER
HEX
FAN
STRAINER
3WV
3WV
STRAINER
MUFFULER
EEV
SERVICE
PORT
PRESSURE
SENSOR
FUSIBLE
PLUG
STRAINER
: Thermistor (Compressor temperature)
: Thermistor (Discharge temperature)
: Thermistor (Outdoor temperature)
: Thermistor (Heat exchanger Med temperature)
: Thermistor (Room temperature)
: Thermistor (Heat exchanger temperature)
: Thermistor (Heat exchanger Out temperature)
