Check run judgment failure display
If check run cannot be performed, the following is displayed. In this case, the check run will
stop. Please check by using the cooling test run of the indoor unit.

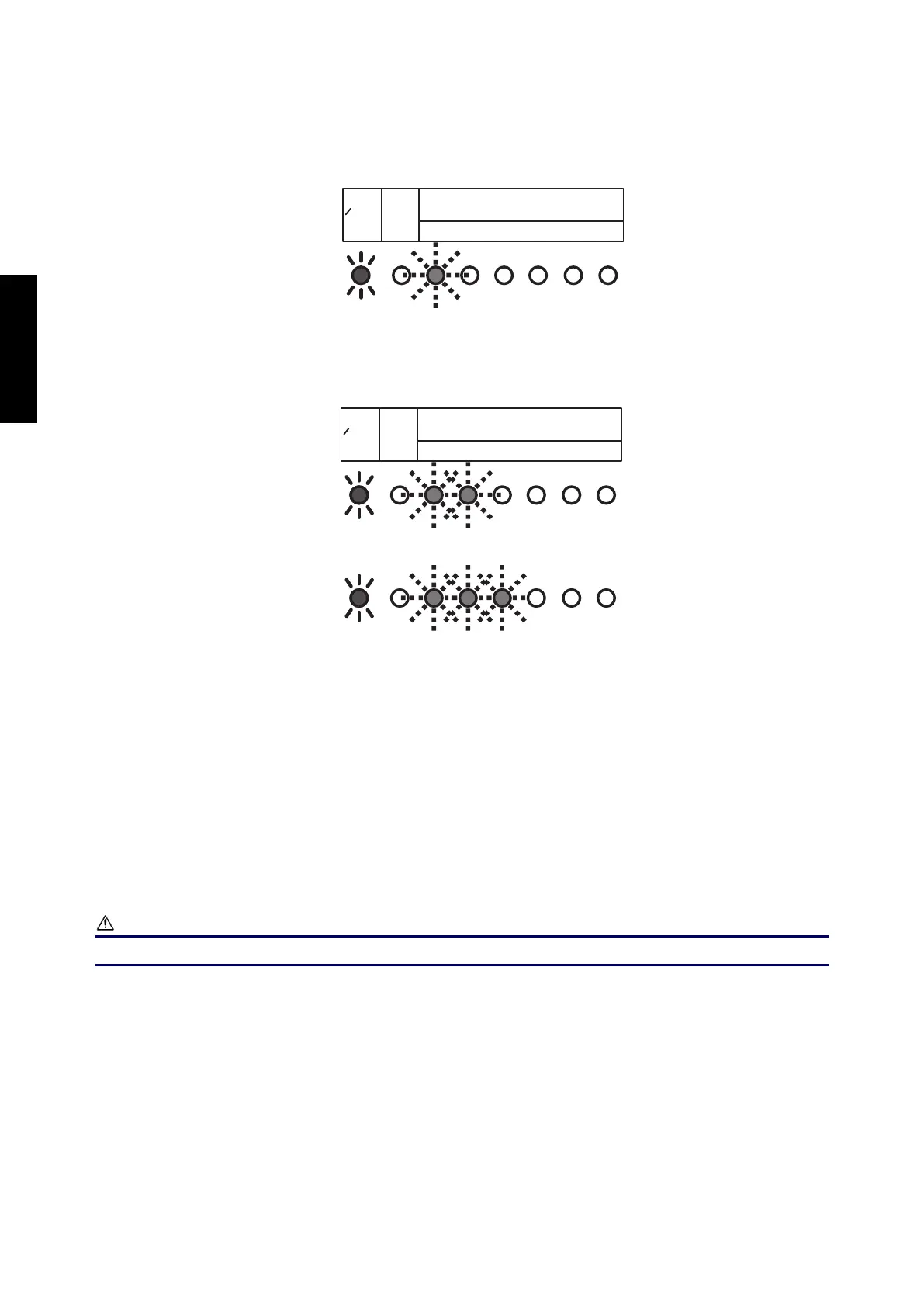

 Temperature out of range judgment
(2-blink)
blink
(High-speed)
FEDC
MONITOR
ERROR
BA
POWER
MODE
 Wiring/piping number difference
FEDC
MONITOR
ERROR
BA
POWER
MODE
blink
(High-speed)
blink
(High-speed)
OR
(2-blink)
(2-blink)
¢
Re-display check run results
• If you wish to check the automatic wiring correction contents, by briefly pressing the "CHECK"
switch, the check run results is displayed. Check the check run results by referring to the result
table in step (4) of "Chapter 14-1-3. "Operating procedure for check run" on page 330".
• If the automatic wiring correction contents has not been done, the POWER/MODE LED will
blink twice and the MONITOR LED will turn off.
¢
Automatic wiring correction memory reset
CAUTION
When relocating the unit, reset the memory beforehand, or the unit may not function normally.
1. Press the "CHECK" switch.
The LED will light as shown in “"Re-display check run results" on page 334”.
2. Press the "CHECK" switch for more than 3 seconds when the LED is on.
3. The LEDs from A to F will light in sequence, and then all LEDs will light to indicate the com-
pletion of the Automatic wiring correction memory reset.
4. Disconnect the power supply or turn off the breaker.
DESIGN & TECHNICAL MANUAL
- 408 -
OUTDOOR UNIT AOYG45LBLA6

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
