- (01 - 07) -
DUCT TYPE ARGA18-25FMTA DUCT TYPE ARGA18-25FMTA

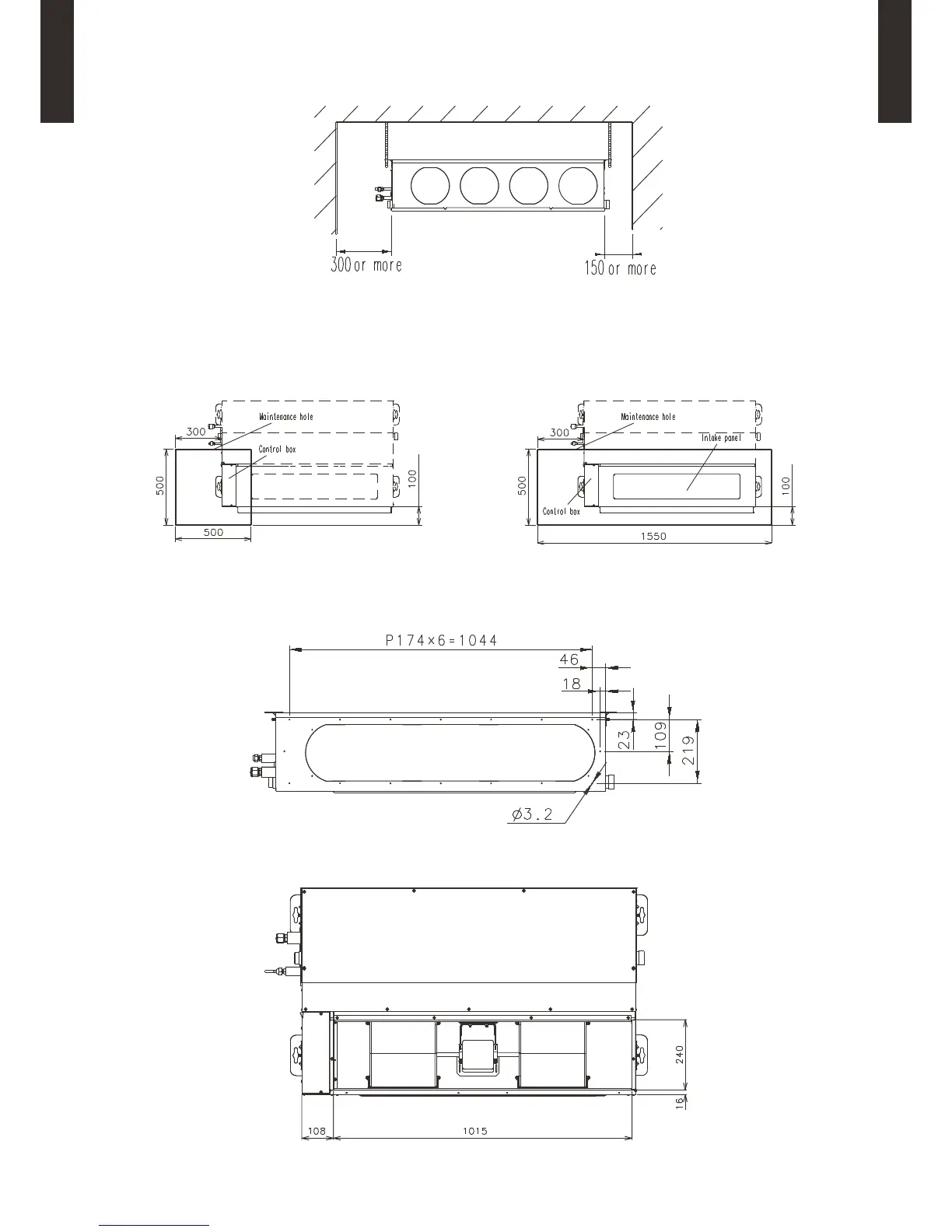

INSTALLATION PLACE

(Unit: mm)
MAINTENANCE HOLE

WHEN USING A SQUARE DUCT

BOTTOM AIR INTAKE HOLE

It shall be possible to install and remove the
control box.
It shall be possible to install and remove the
control box, fan units and lter.
