Fujitsu ARGA18FMTA - Fan Performance; Fan Performance Curve

- 22 -
DUCT TYPE ARGA30-60F
7. Fan performance

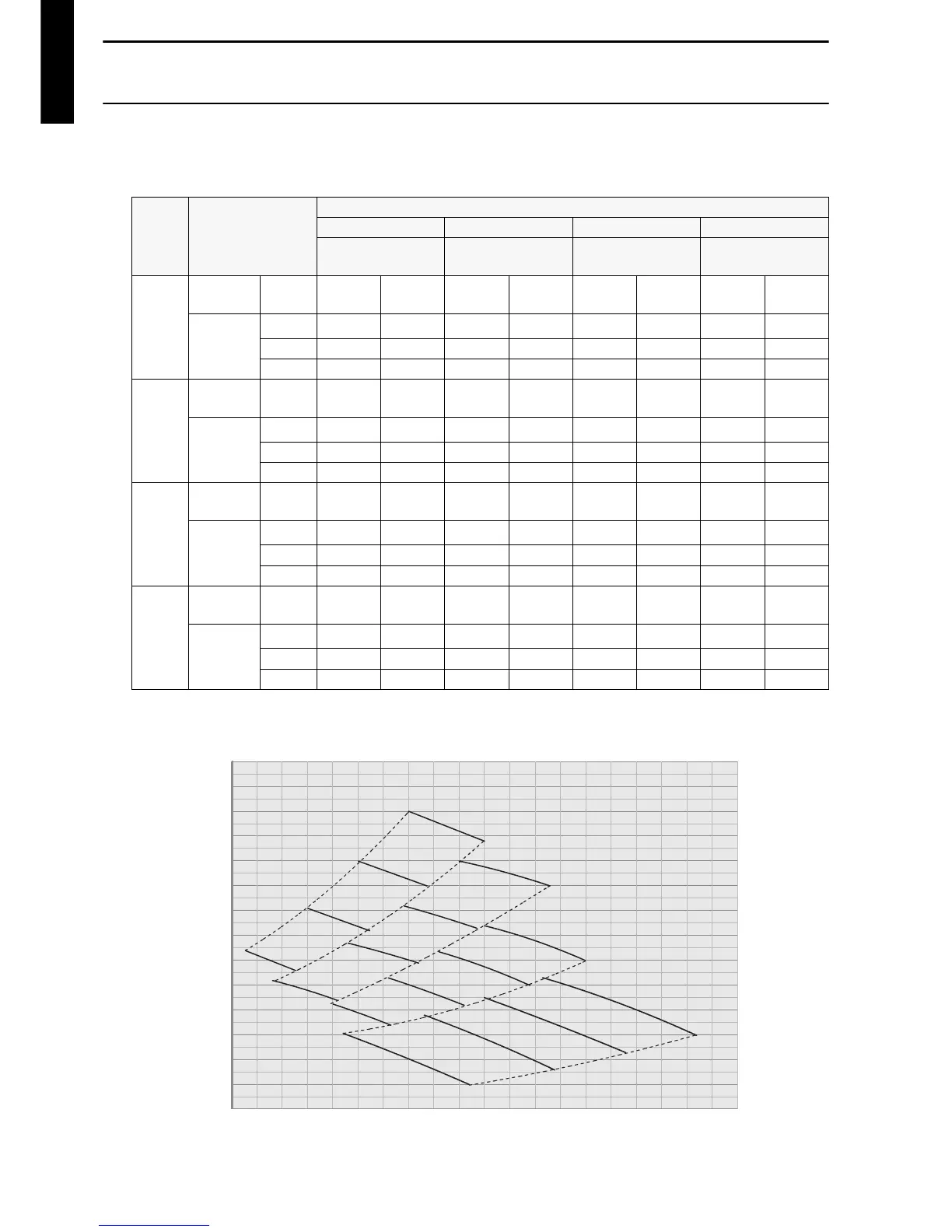

7-1. Fan performance curve
 Model: ARGA30FMTA
Factory setting is Mode 1.
Fan
speed
Item
Static pressure mode
Mode 1 Mode 2 Mode 3 Mode 4
Normal
High static
pressure 1
High static
pressure 2
High static
pressure 3
HIGH
Static
pressure
Pa 30 55 60 75 90 100 110 120
Airflow
m
3
/h
1820 1520 1600 1400 1530 1350 1400 1250
l/s 506 422 444 389 425 375 389 347
CFM 1071 894 941 824 900 794 824 735
MED
Static
pressure
Pa 23 45 50 63 73 82 90 100
Airflow
m
3
/h
1680 1400 1490 1310 1380 1240 1280 1150
l/s 467 389 414 364 383 344 356 319
CFM 988 824 876 771 812 729 753 676
LOW
Static
pressure
Pa 16 38 42 53 59 67 72 81
Airflow
m
3
/h
1540 1280 1360 1210 1270 1130 1170 1050
l/s 428 356 378 336 353 314 325 292
CFM 906 753 800 712 747 665 688 618
QUIET
Static
pressure
Pa 10 29 34 42 44 52 56 64
Airflow
m
3
/h
1370 1120 1210 1100 1110 980 1020 920
l/s 381 311 336 306 308 272 283 256
CFM 806 659 712 647 653 576 600 541
1800900
0
140
130
120
110
100
90
80
70
60
50
40
30
20
10
1000 1100 1200 1300 1400 1500 1600 1700 1900
Airflow [m
3
/h]
External Static Pressure [Pa]
Med
Med
Med
Low
Low
Low
Low
Quiet
Quiet
Quiet
Quiet
Med
Fan performance curve_1
Hi [High static pressure 3 (120Pa)]
Hi [High static pressure 2 (90Pa)]
Hi [Normal (30Pa)]
Hi [High static pressure 1 (60Pa)]
