DUCT TYPE
ARGA30-60F
NOTES:
• Setting of the external static pressure is switchable into 4-stage modes by using the remote
controller.
• According to the resistance of the connecting duct, perform the setting of the external static pres-
sure with referring “Fan performance curve_2” above.
• The default setting is set at "Normal mode".

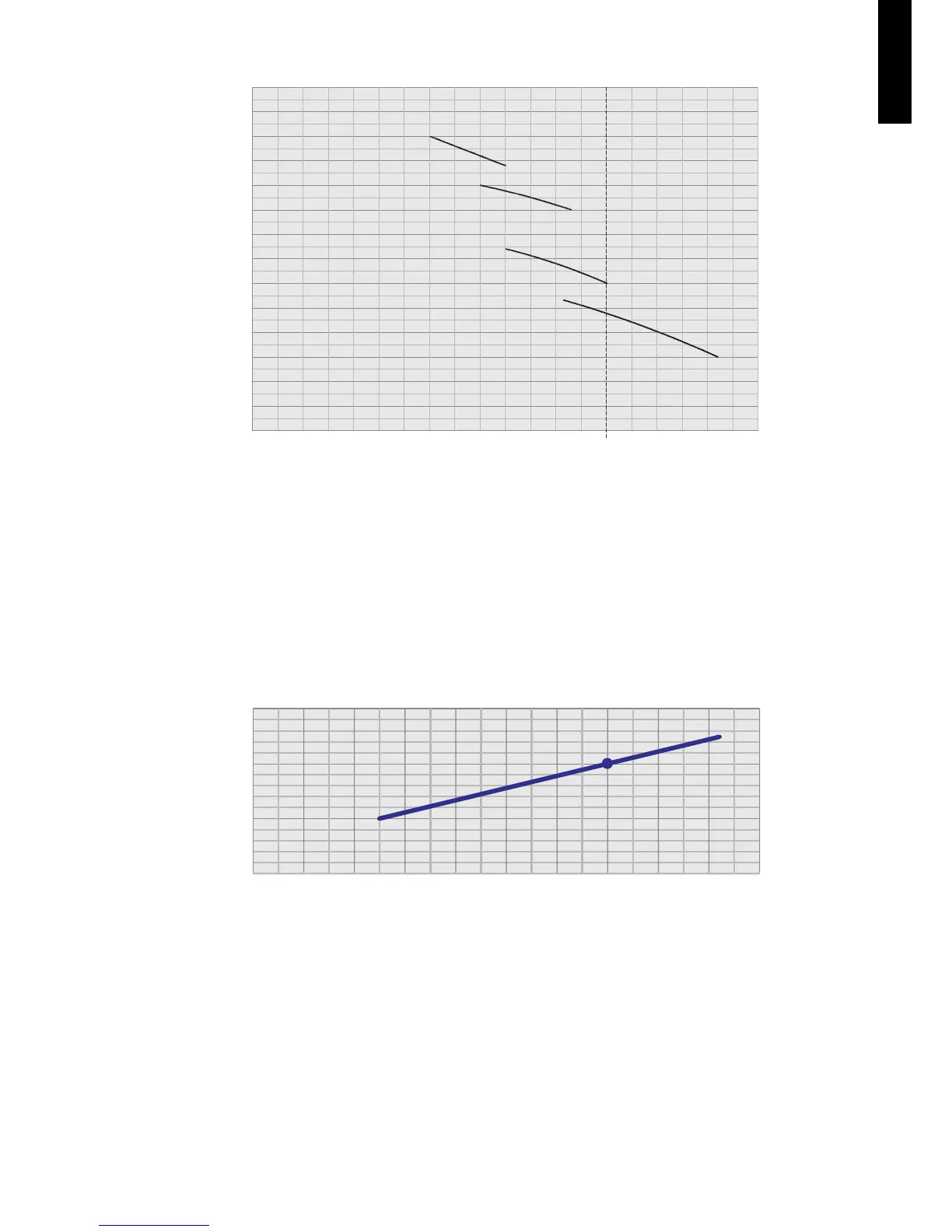

Characteristics of air volume and capacity
Cooling
Fan performance curve_2
(For function setting by remote controller)
1800900
0
140
130
120
110
100
90
80
70
60
50
40
30
20
10
1000 1100 1200 1300 1400 1500 1600 1700 1900
Airflow [m
3
/h]
External Static Pressure [Pa]
Hi [High static pressure 3 (120Pa)]
Hi [High static pressure 2 (90Pa)]
Hi [Normal (30Pa)]
Hi [High static pressure 1 (60Pa)]
100
105
90
95
900 1300 1400 15001000 1100 1200 1600 1700 1800 1900
Airflow [m
3
/h]
Capacity [%]
