Fujitsu ARGA18FMTA - Dimensions

- (01 - 06) -
DUCT TYPE ARGA18-25FMTA DUCT TYPE ARGA18-25FMTA

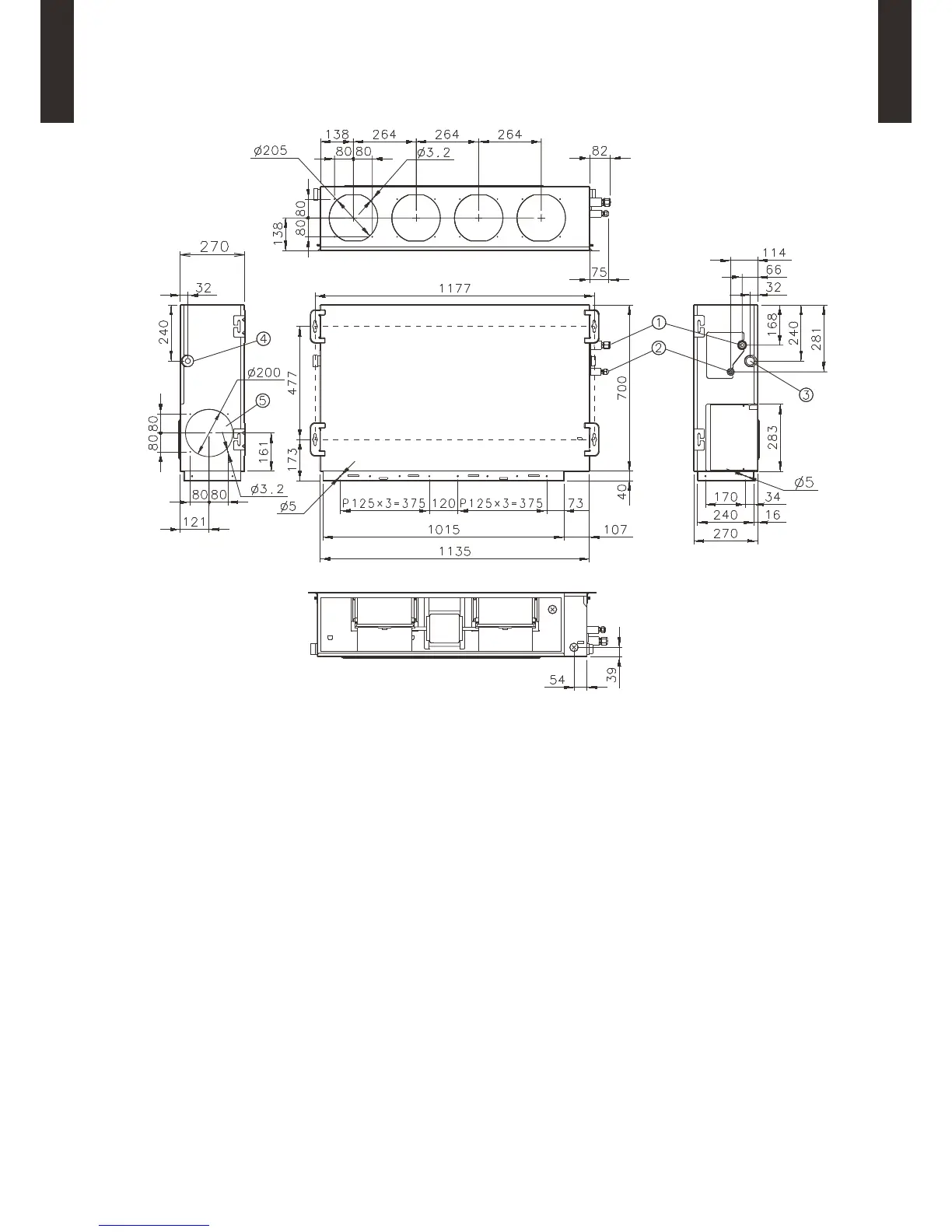

DIMENSIONS4.
MODEL

: ARGA18FMTA, ARGA25FMTA
(Unit: mm)

Refrigerant piping are connection (Gas)

Refrigerant piping are connection (Liquid)

Drain piping connection

Drain piping connection with cap.

Knock out hole for fresh air.
Front view
Top view
Side view (L)
Side view (R)
Rear view
