Fujitsu ARGA18FMTA - Function Settings

- (01 - 25) -
DUCT TYPE ARGA18-25FMTA DUCT TYPE ARGA18-25FMTA
FUNCTION SETTINGS11.
INDOOR UNIT11-1.

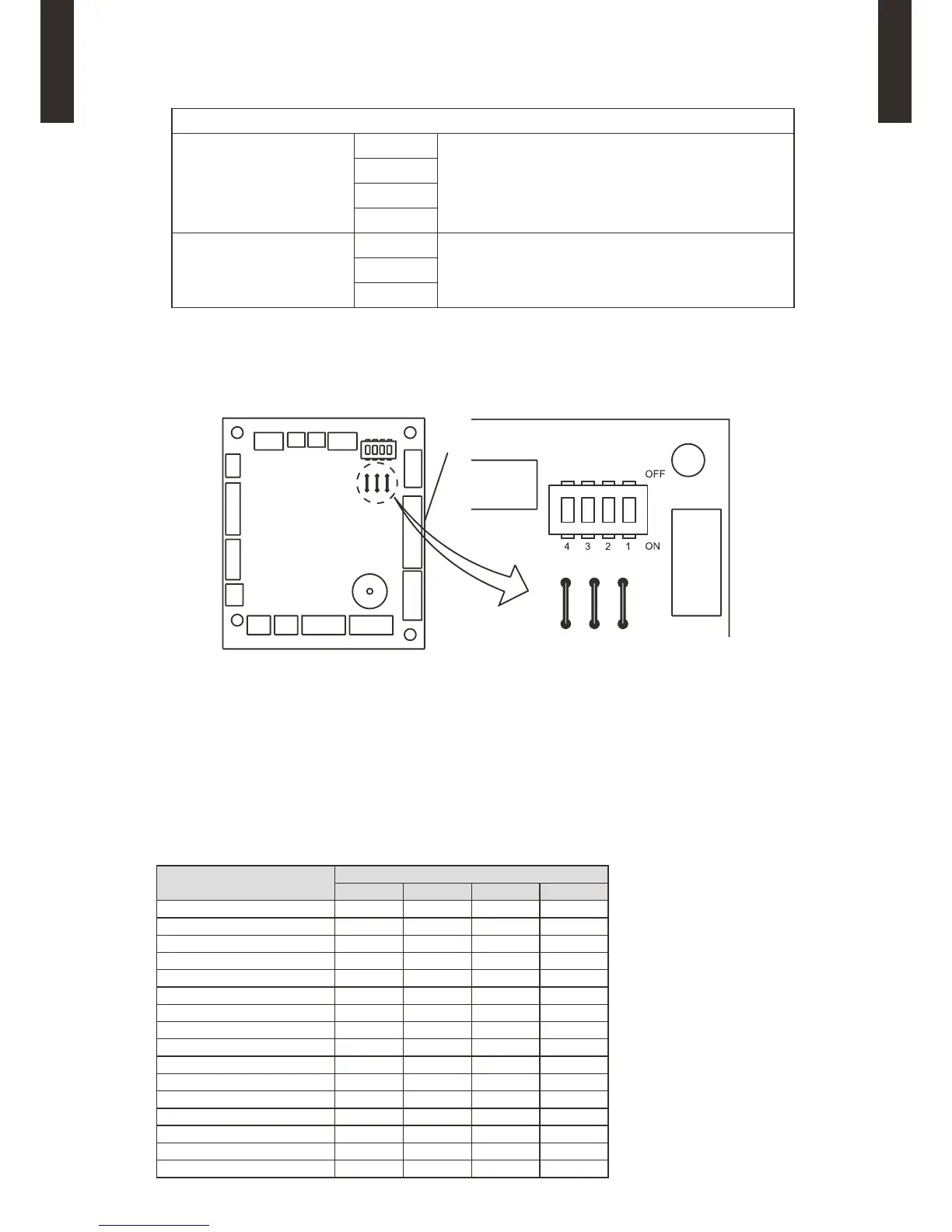

SWITCH POSITION

DIP-SW SETTING

Unit number setting
z
A number of indoor units can be operated at the same time using a wired remote controller.
Set the unit number of each indoor unit using the DIP switches on the indoor unit circuit board.
(See the following table.)
The DIP switches are normally set to make the unit number 00.
(

. . .Factory setting)
Unit number
DIPswitchNo.
1 2 3 4

00 OFF OFF OFF OFF
01 ON OFF OFF OFF
02 OFF ON OFF OFF
03 ON ON OFF OFF
04 OFF OFF ON OFF
05 ON OFF ON OFF
06 OFF ON ON OFF
07 ON ON ON OFF
08 OFF OFF OFF ON
09 ON OFF OFF ON
10 OFF ON OFF ON
11 ON ON OFF ON
12 OFF OFF ON ON
13 ON OFF ON ON
14 OFF ON ON ON
15 ON ON ON ON
INDOOR UNIT
DIP SW
1
Remote controller address setting
2
3
4
Jumper Wire
JM1
Setting change prohibitedJM2
JM3
JM3 JM2 JM1
Indoor unit Printed circuit board
MAIN PCB
