Fujitsu ARGA18FMTA - Page 27

- (01 - 24) -
DUCT TYPE ARGA18-25FMTA DUCT TYPE ARGA18-25FMTA
FRESH AIR CONTROL OUTPUT

A signal linked to air conditioner indoor fan ON can be output.
* However, signal becomes OFF during cold air prevention control operation.

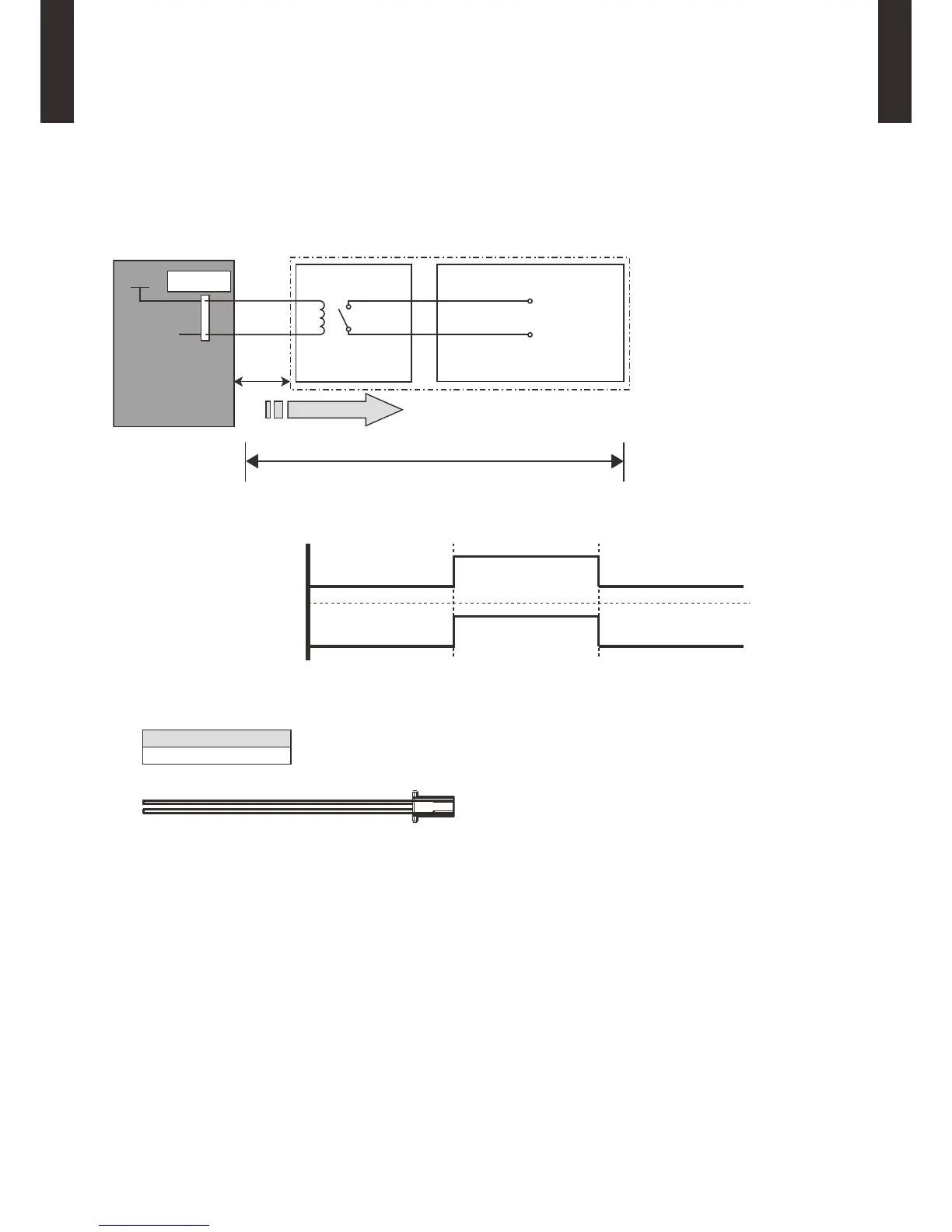

Circuit diagram example
z
Locally purchased
Indoor
control PC board
Connector
1
12 V
on/off
2
Signal
Relay
power
supply
*: Make the distance from the PC board to the connected unit within 10 m.
Relay spec.: Rated DC 12 V, 50 mA or less.
Ex.) Fan
Connected unit
Ex.) Relay unit
*10 m
ON
OFF
Operation
Stop
Indoor fan
Output signal
Parts (Optional)
z
Model name
UTD-ECS5A
Wire (Fresh air output)
