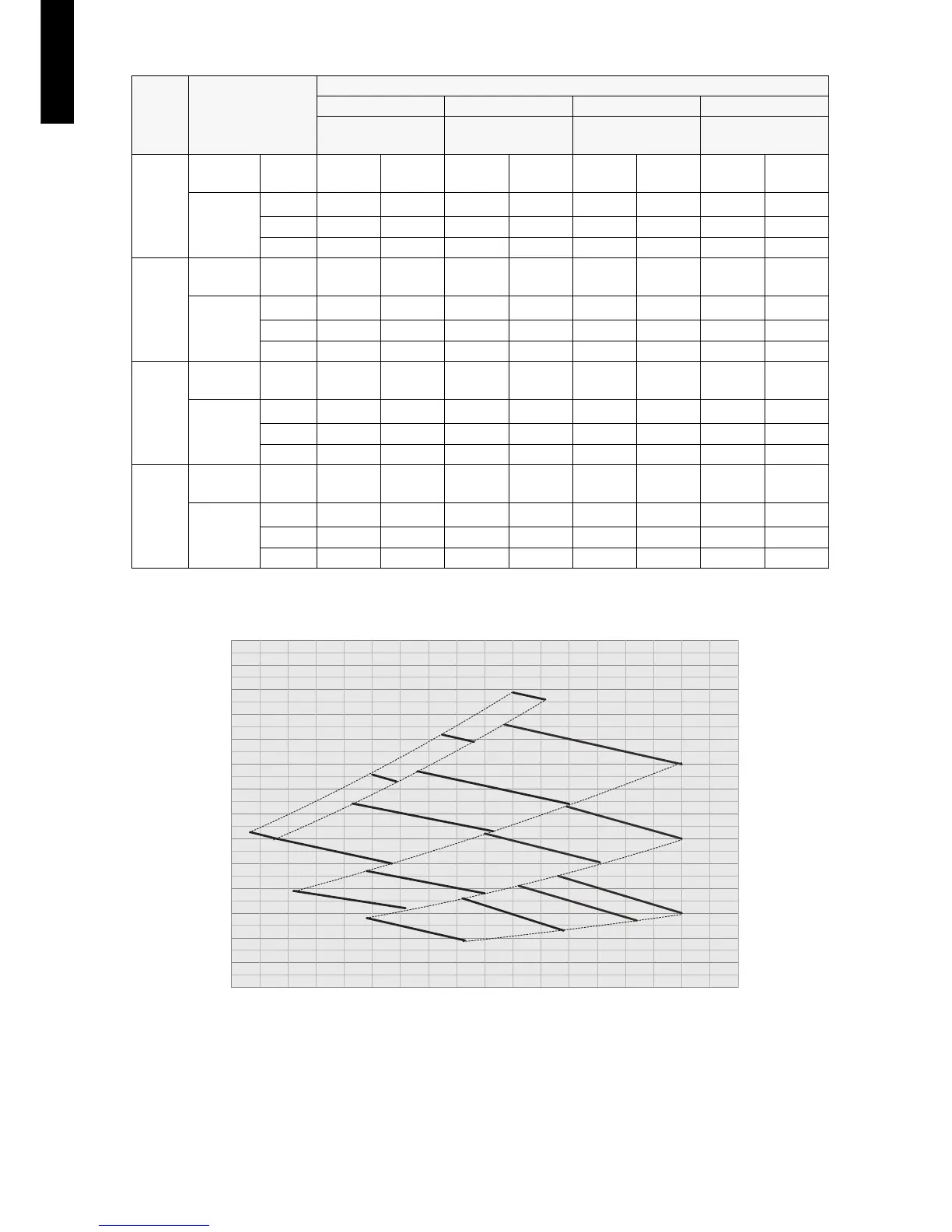

Fujitsu ARGA18FMTA - Page 79

- 24 -
DUCT TYPE ARGA30-60F
 Model: ARGA36FMTA
Factory setting is Mode 2.
Fan
speed
Item
Static pressure mode
Mode 1 Mode 2 Mode 3 Mode 4
Low static
pressure
Normal
High static
pressure 1
High static
pressure 2
HIGH
Static
pressure
Pa 30 45 60 75 90 105 115 120
Airflow
m
3
/h
2000 1780 2000 1790 2000 1680 1760 1700
l/s 556 494 556 497 556 467 489 472
CFM 1176 1047 1176 1053 1176 988 1035 1000
MED
Static
pressure
Pa 28 42 50 61 74 87 99 102
Airflow
m
3
/h
1920 1710 1850 1650 1810 1530 1630 1580
l/s 533 475 514 458 503 425 453 439
CFM 1129 1006 1088 971 1065 900 959 929
LOW
Static
pressure
Pa 24 35 38 47 63 74 83 86
Airflow
m
3
/h
1790 1610 1650 1440 1670 1420 1490 1450
l/s 497 447 458 400 464 394 414 403
CFM 1053 947 971 847 982 835 876 853
QUIET
Static
pressure
Pa 19 28 32 39 50 60 60 63
Airflow
m
3
/h
1610 1440 1510 1310 1490 1280 1280 1230
l/s 447 400 419 364 414 356 356 342
CFM 947 847 888 771 876 753 753 724
21001200
0
140
130
120
110
100
90
80
70
60
50
40
30
20
10
1300 1400 1500 1600 1700 1800 1900 2000
Airflow [m
3
/h]
External Static Pressure [Pa]
Med
Med
Med
Low
Low
Low
Low
Quiet
Quiet
Quiet
Quiet
Med
Fan performance curve_1
Hi [High static pressure 2 (120Pa)]
Hi [High static pressure 1 (90Pa)]
Hi [Normal (60Pa)]
Hi [Low static pressure (30Pa)]
