- 26 -
DUCT TYPE ARGA30-60F
 Model: ARGA45FMTA
Factory setting is Mode 2.
Fan
speed
Item
Static pressure mode
Mode 1 Mode 2 Mode 3 Mode 4
Low static
pressure
Normal
High static
pressure 1
High static
pressure 2
HIGH
Static
pressure
Pa 30 45 60 75 90 110 110 120
Airflow
m
3
/h
2500 2210 2500 2210 2380 2080 2100 1990
l/s 694 614 694 614 661 578 583 553
CFM 1471 1300 1471 1300 1400 1224 1235 1171
MED
Static
pressure
Pa 27 39 50 68 76 94 94 99
Airflow
m
3
/h
2340 2060 2380 2060 2200 1910 1910 1830
l/s 650 572 661 572 611 531 531 508
CFM 1376 1212 1400 1212 1294 1124 1124 1076
LOW
Static
pressure
Pa 23 33 44 58 65 78 78 83
Airflow
m
3
/h
2160 1910 2190 1900 2020 1740 1740 1670
l/s 600 531 608 528 561 483 483 464
CFM 1271 1124 1288 1118 1188 1024 1024 982
QUIET
Static
pressure
Pa 18 28 36 48 48 58 62 66
Airflow
m
3
/h
2000 1760 2000 1730 1730 1500 1550 1490
l/s 556 489 556 481 481 417 431 414
CFM 1176 1035 1176 1018 1018 882 912 876
26001400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
Airflow [m
3
/h]
0
140
130
120
110
100
90
80
70
60
50
40
30
20
10
External Static Pressure [Pa]
Med
Med
Med
Med
Low
Low
Low
Low
Quiet
Quiet
Quiet
Quiet

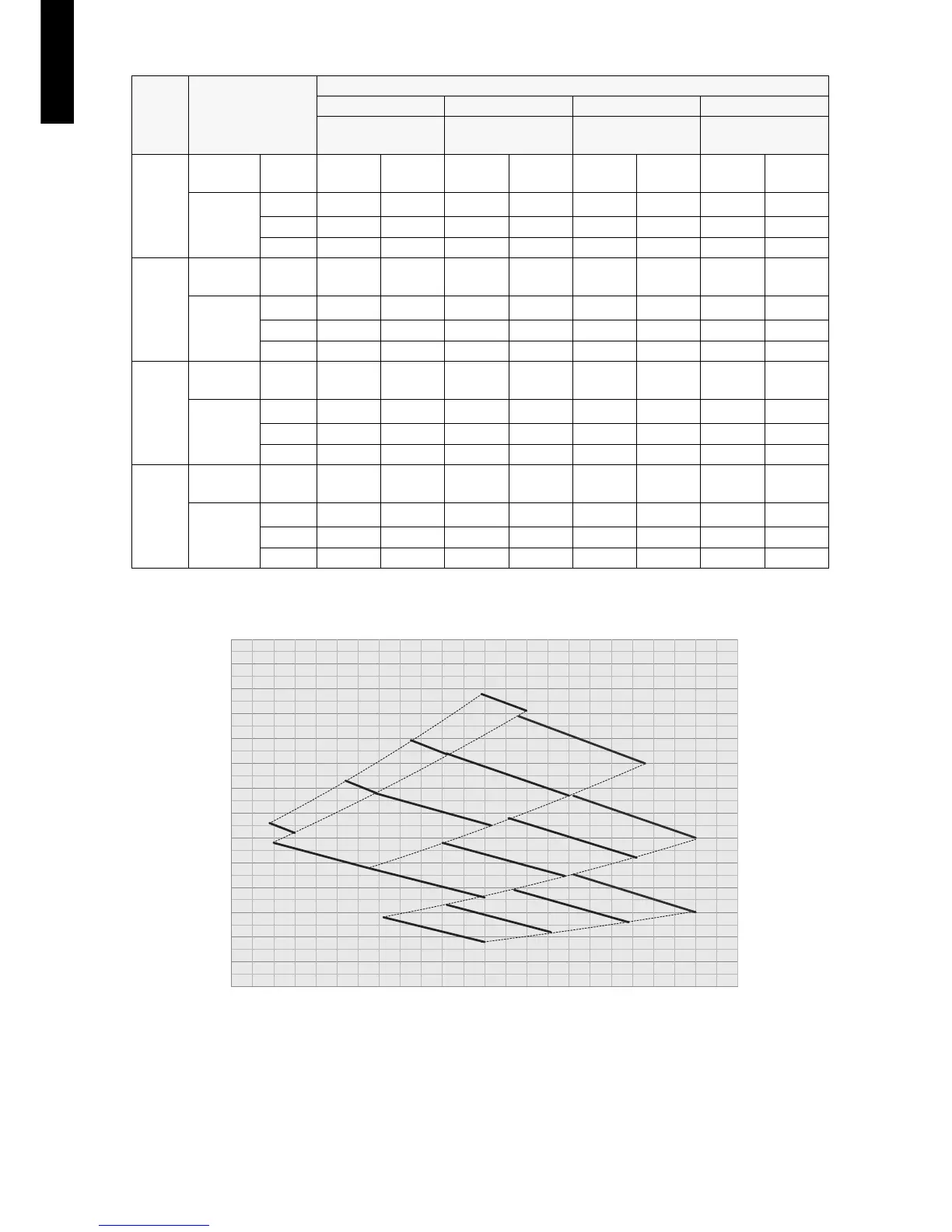

Fan performance curve_1
Hi [High static pressure 2 (120Pa)]
Hi [High static pressure 1 (90Pa)]
Hi [Normal (60Pa)]
Hi [Low static pressure (30Pa)]
